Epson EB-E20 User Manual

Image Shape
51

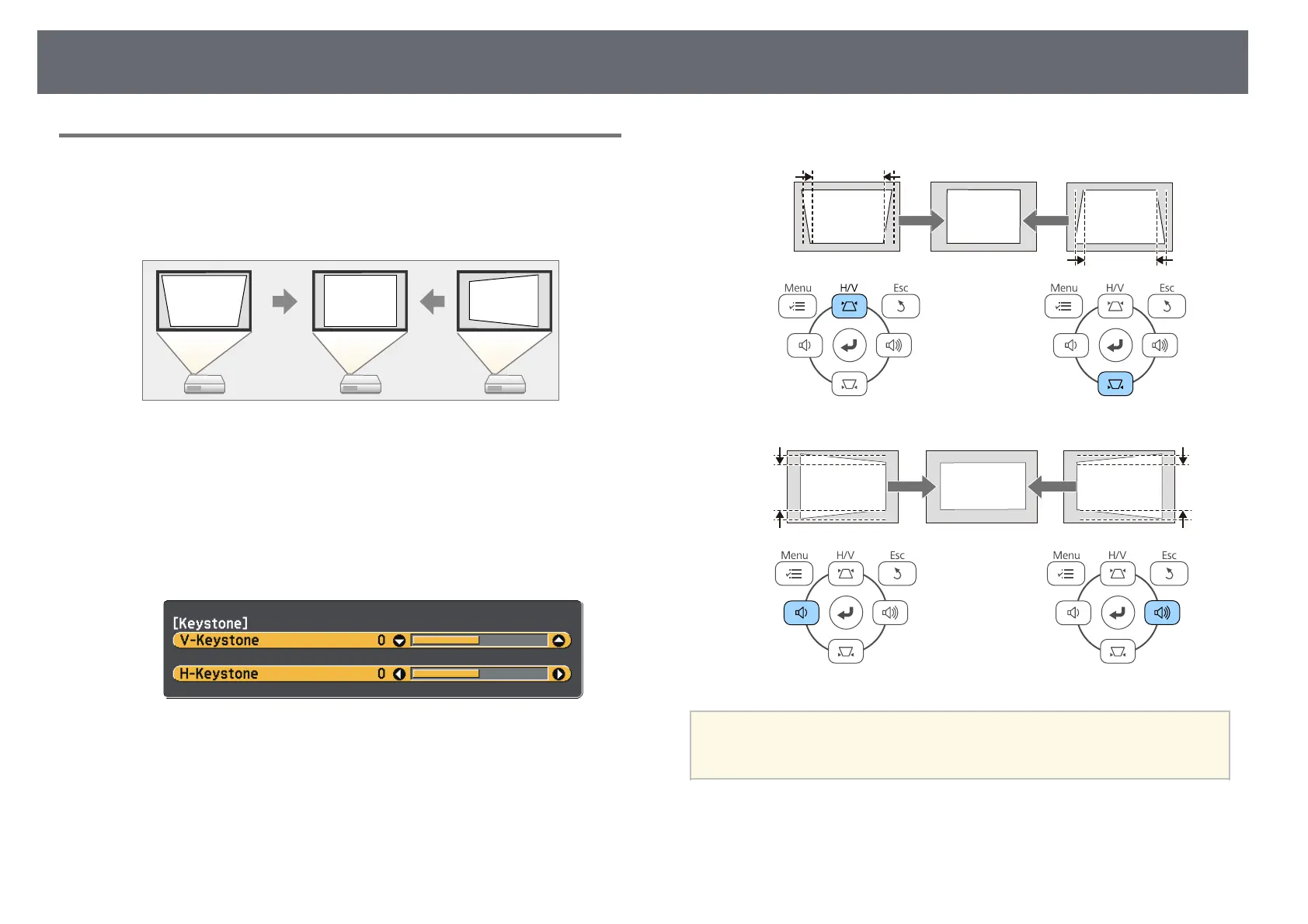

Correcting the Image Shape with the Keystone
Buttons
You can use the projector's keystone correction buttons to correct the shape
of an image that is unevenly rectangular.
You can use keystone buttons to correct images up to 30º right, left, up, or
down.
a
Turn on the projector and display an image.
b
Press one of the keystone adjustment buttons on the control panel to
display the Keystone adjustment screen.
c
Press a keystone button to adjust the image shape.
a
• If the projector is installed out of your reach, you can also correct the
shape of the image using the remote control.
s Settings > Keystone > H/V-Keystone
gg Related Links
• "Projector Feature Settings - Settings Menu" p.132

Epson EB-E20 Specifications

General

Matrix size	0.55 \
Number of colors	1.073 billion colors
Native aspect ratio	4:3
Projection distance	- m
Vertical scan range	100 - 120 Hz
Projection technology	3LCD
Contrast ratio (typical)	15000:1
Screen size compatibility	30 - 350 \
Projector native resolution	XGA (1024x768)
Keystone correction, horizontal	-30 - 30 °
RMS rated power	5 W
Number of built-in speakers	1
Placement	Desktop, Ceiling
Product type	Standard throw projector
Product color	White
Market positioning	Portable
Cable lock slot type	Kensington
Lamp type	UHE
Lamp power	210 W
Light source type	Lamp
Service life of light source	6000 h
Service life of light source (economic mode)	12000 h
Built-in display	No
Noise level	37 dB
Preset modes	Blackboard, Dynamic, Presentation, Theatre, sRGB
Noise level (economic mode)	28 dB
Focus	Manual
Throw ratio	1.44 - 1.95:1
Fixed focal length	16.7 mm
Focal length range	- mm
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	- W
Power consumption (typical)	327 W
Power consumption (economy mode)	225 W
Analog signal format system	-
HDMI connector type	Full-size
Serial interface type	RS-232C
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
VGA (D-Sub) ports quantity	3
Component video (YPbPr/YCbCr) in	0
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 40 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
Cables included	AC, VGA
Harmonized System (HS) code	85286200

Weight and Dimensions

Depth	282 mm
Width	309 mm
Height	87 mm
Weight	2700 g
