The illustrations in this guide are for EB-G6750WU (with the standard
zoom lens ELPLS06 attached).

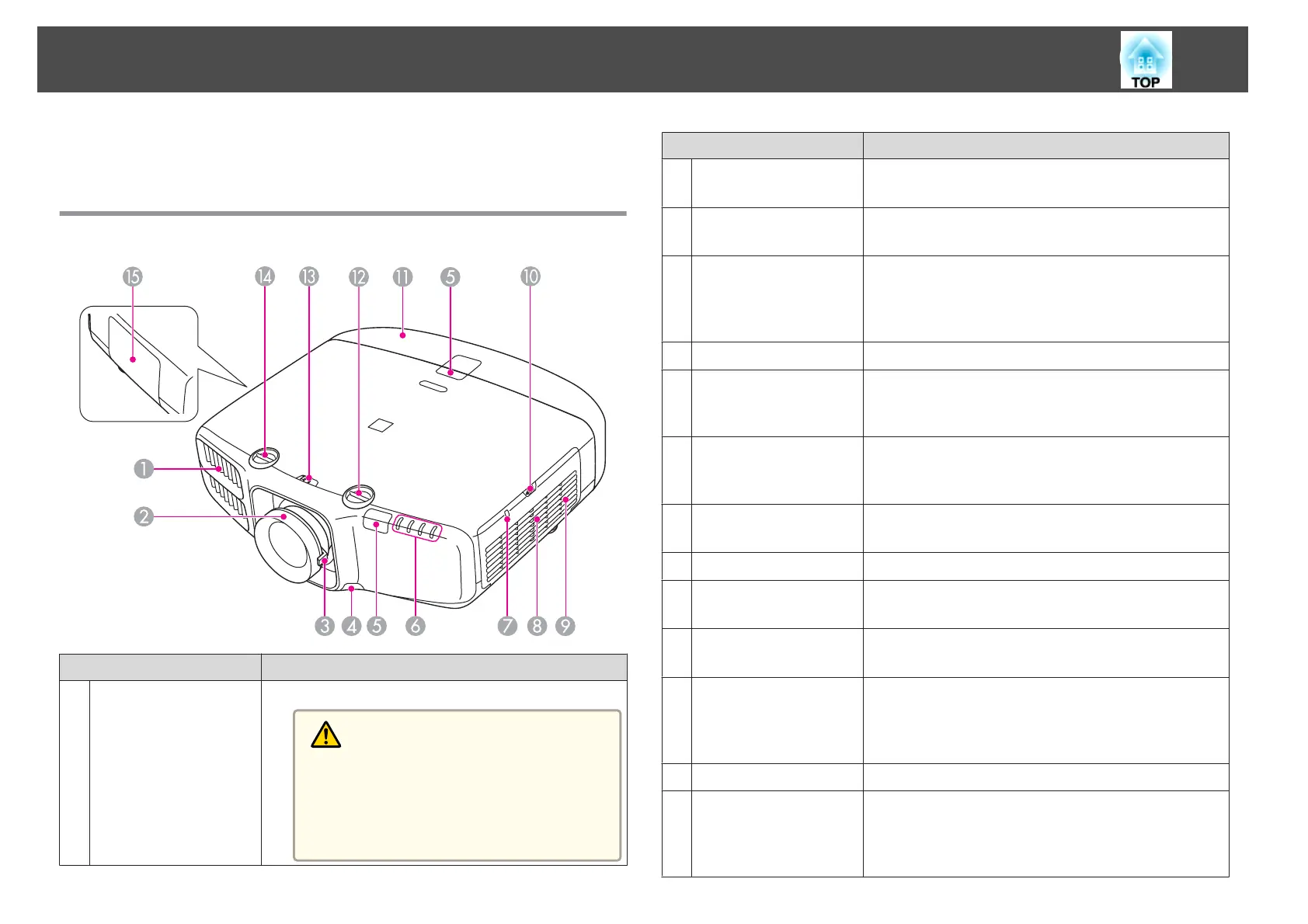

Front/Top
Name Function
A
Air exhaust vent
Exhaust vent for air used to cool the projector internally.
Caution
While projecting, do not put your face or hands
near the air exhaust vent, and do not place objects
that may become warped or damaged by heat near
the vent. Hot air from the air exhaust vent could
cause burns, warping, or accidents to occur.
Name Function
B
Focus ring
Adjusts the image focus.
s "Correcting the Focus" p.26
C
Zoom ring
Adjusts the image size.
s "Adjusting the Image Size" p.26
D
Lens unit removal
button
When replacing the lens unit, press this button and then
remove the lens unit.
s "Removing and Attaching the Projector Lens Unit"
p.16
E
Remote receiver
Receives signals from the remote control.
F
Status indicators
The color of the indicators and whether they are flashing
or lit indicate the status of the projector.
s
"Reading the Indicators" p.106
G
Wireless LAN indicator
Indicates the access status of the supplied or optional
wireless LAN unit.
s "Optional Accessories" p.156
H
Air intake vent
(air filter)
Takes in air to cool the projector internally.
s "Cleaning the Air Filter" p.125
I
Speaker
Outputs audio.
J
Air filter cover
operation knob
Use this knob to open the air filter cover.
s "Replacing the Air Filter" p.131
K
Cable cover
Cover for the rear interface cable connection section.
s "Attaching the Cable Cover" p.39
L
Vertical lens shift dial
Turn the dial to move the position of the projected image
up or down.
s "Adjusting the Position of the Projected Image (Lens
Shift)" p.24
M
Lens shift dial lock
Locks or releases the lens shift dials.
N
Horizontal lens shift
dial
Turn the dial to move the position of the projected image
left or right.
s "Adjusting the Position of the Projected Image (Lens
Shift)" p.24
Part Names and Functions
8
