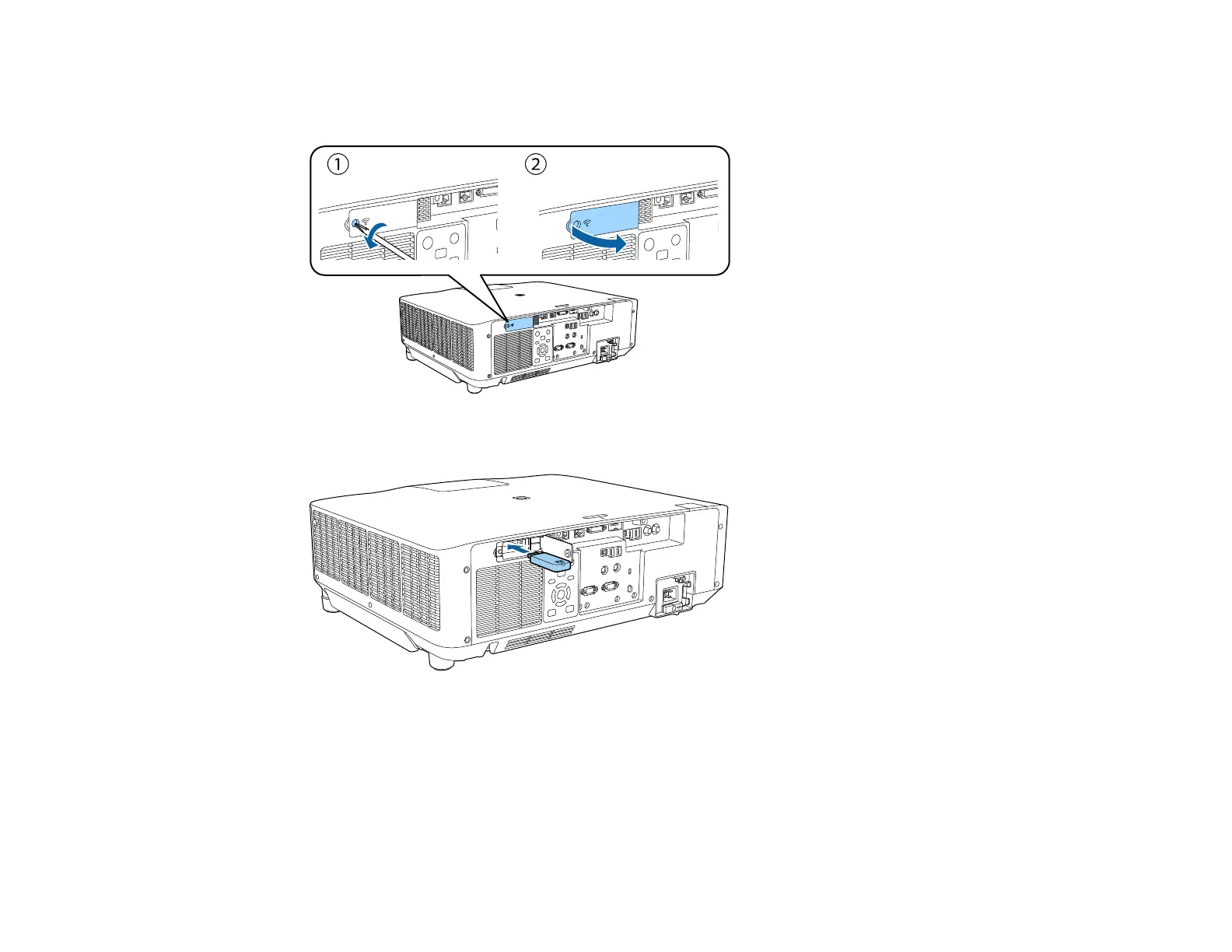

1. Remove the screw securing the wireless LAN module port cover.

2. Remove the wireless LAN module port cover.

3. Insert the wireless LAN module into the port.

Main Page

Table of Contents3
EB-PU2113W/EB-PU2213B/EB-PU2116W/EB-PU2216B/EB-PU2120W/EB-PU2220B User's Guide11
