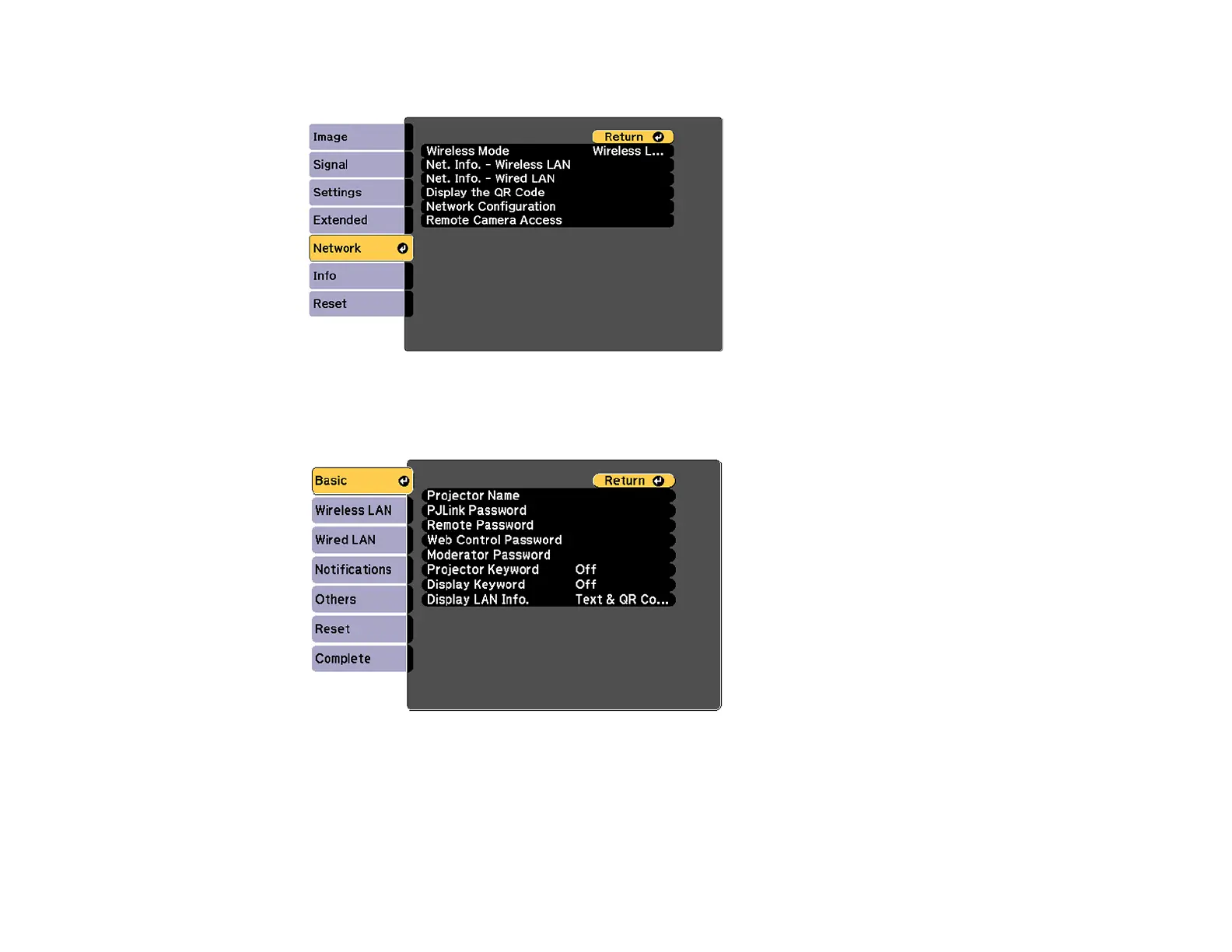

2. Select the Network menu and press Enter.

3. Select Network Configuration and press Enter.

4. Select the Basic menu and press Enter.

5. Set the Display LAN Info setting to Text & QR Code.

6. Select Complete and follow the on-screen instructions to save your settings and exit the menus.
