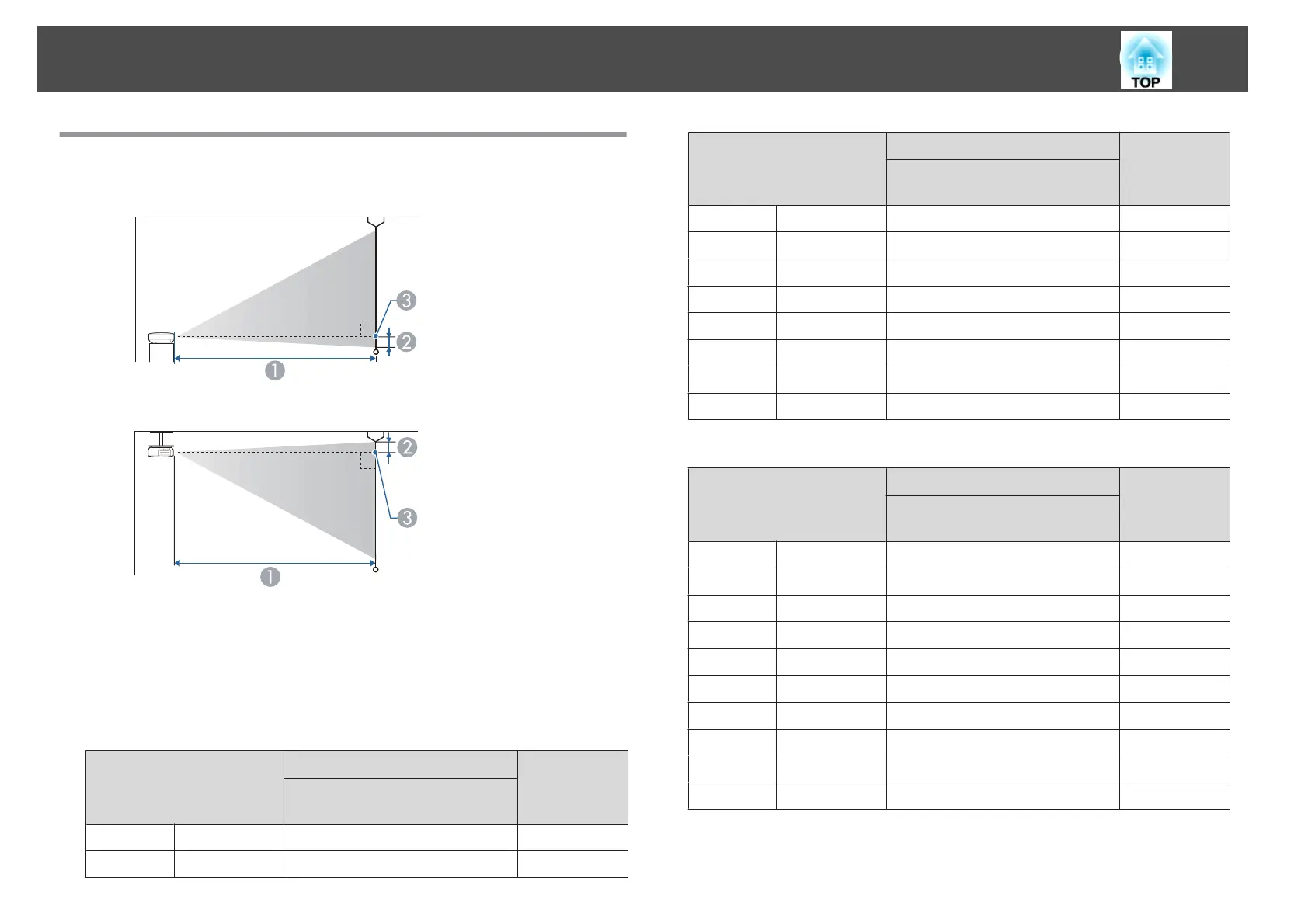

Projection Distance (For EB-W18/EB-W03/EB-
W120)
A
Projection distance
B
Distance from the center of the receiver's lens to the base of the screen
(or to the top of the screen, if suspended from a ceiling)
C
Center of lens
Unit: cm
4:3 Screen Size
A
B
Minimum (Wide) to Maximum
(Tele)
30" 61x46 94 - 113 -4
40" 81x61 126 - 152 -5
4:3 Screen Size
A
B
Minimum (Wide) to Maximum
(Tele)
50" 100x76 158 - 190 -7
60" 120x91 190 - 229 -8
70" 142x107 222 - 267 -10
80" 160x120 255 - 306 -11
100" 200x150 319 - 383 -14
150" 300x230 480 - 577 -20
200" 410x300 641 - 770 -27
280" 570x430 898 - 1079 -38
Unit: cm
16:9 Screen Size
A
B
Minimum (Wide) to Maximum
(Tele)
35" 78x44 99 - 120 -2
40" 89x50 114 - 137 -2
50" 110x62 143 - 172 -3
60" 130x75 172 - 208 -3
70" 155x87 202 - 243 -4
80" 180x100 231 - 278 -4
100" 220x120 289 - 348 -5
150" 330x190 435 - 523 -8
200" 440x250 582 - 699 -11
310" 690x390 903 - 1084 -17
Screen Size and Projection Distance
