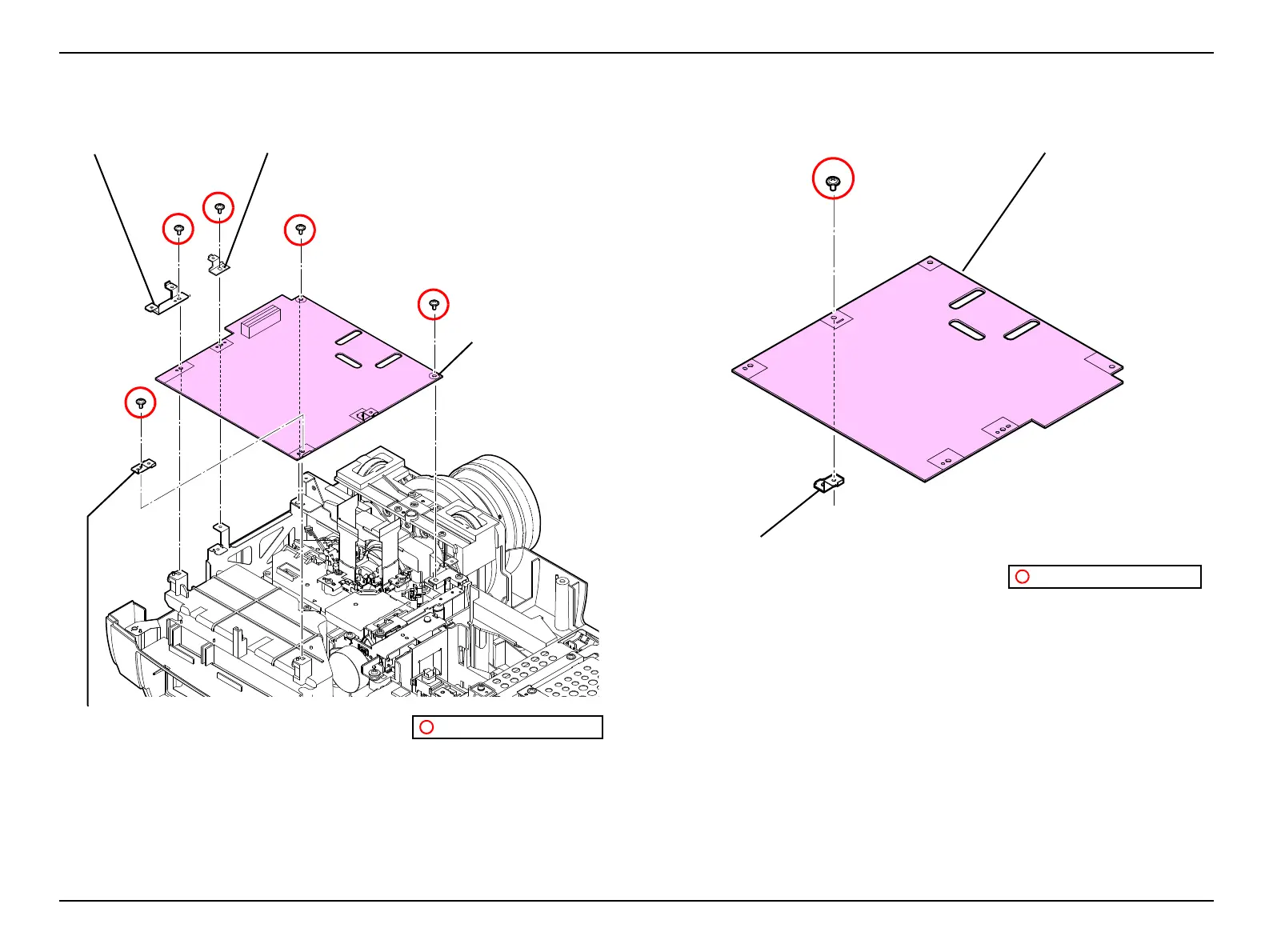

8. Remove the five screws and remove the DR Board, Plate DR A and the Plate DR
B.
Figure 3-24.
9. Remove the screw and remove the Plate DR C from the DR Board.
Figure 3-25.
C.C SCREW,3X6,F/ZN-3C
DR Board
Plate DR APlate DR B
Plate DR A
C.C SCREW,3X6,F/ZN-3C
Plate DR C
DR Board
