EH-TW3500/4500/5500 Disassembly and Assembly CONFIDENTIAL
SEIKO EPSON 86 Revision A

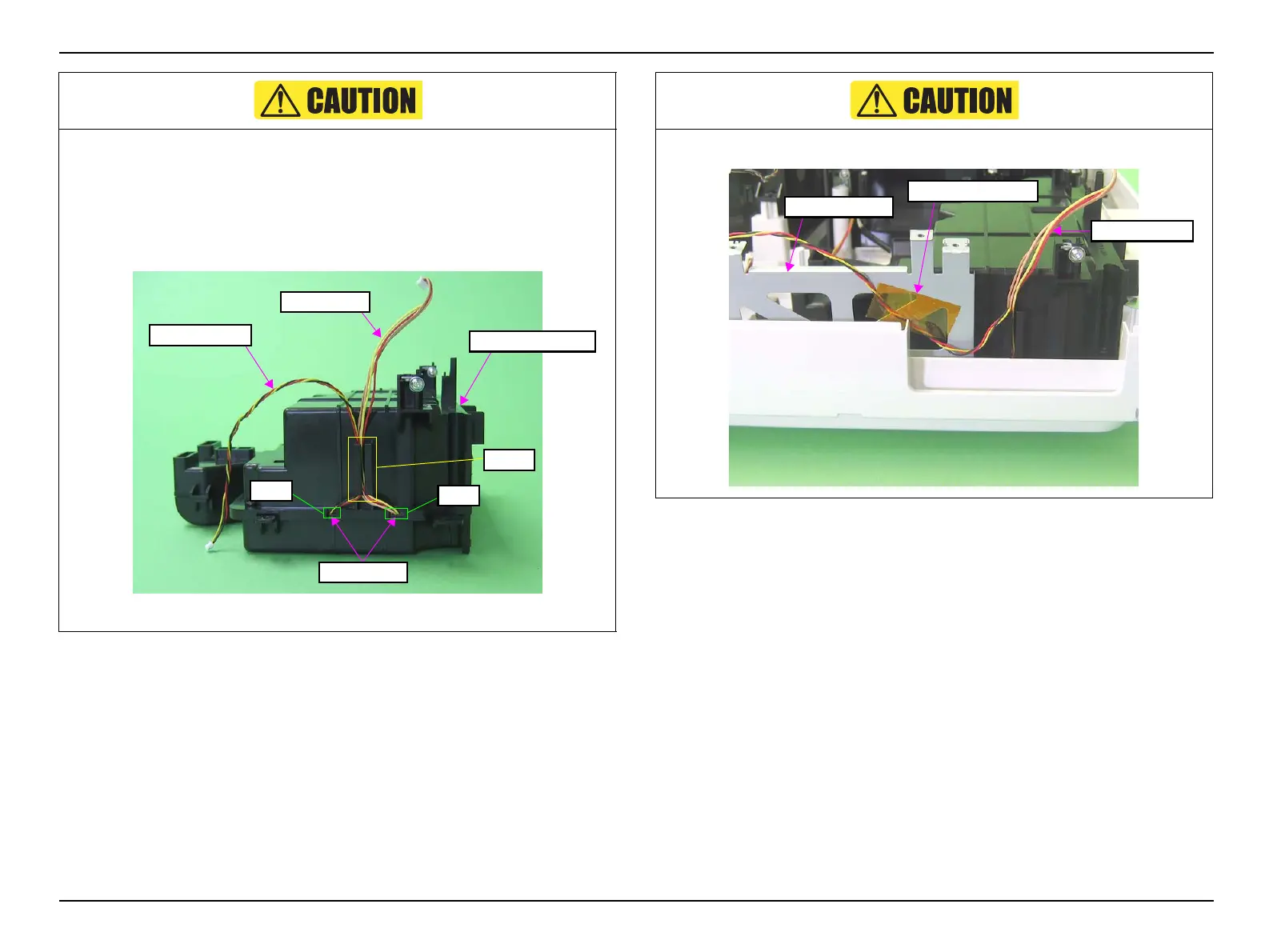

When installing the INT Fan (assembly), make sure of the following.
Route the Cable C170 and the INT Fan cable over the INT Seal C.
Pull out the Cable C170 and the INT Fan cable from the holes on the Upper
INT Duct.
Route the Cable C170 and the INT Fan cable through the guide on the Upper
INT Duct.
Cable C170
Upper INT Duct
INT Fan cable
Guide
Hole
Hole
INT Seal C
Secure the INT Fan cable to the MA-DR Plate with heat-resistant tape.
MA-DR Plate
INT Fan cable
Heat-resistant tape
To Next Page
