Part Names and Functions
11

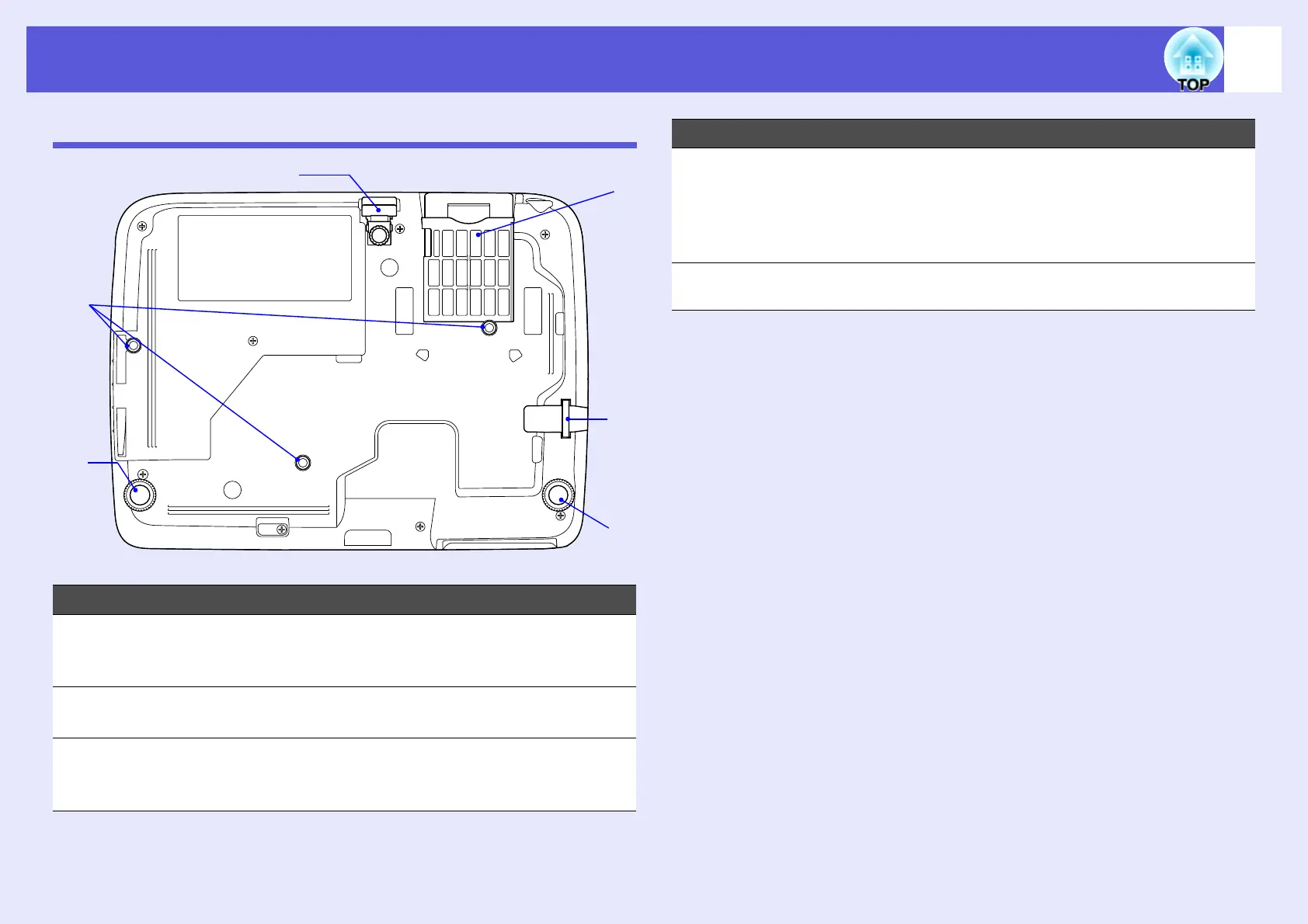

Base
Name Function
A
Suspension
bracket fixing
points (3 points)
Attach the optional ceiling mount here when
suspending the projector from a ceiling.
s p.55, 84
B
Rear foot
(2 points)
Turn to extend and retract to adjust the
horizontal tilt. sQuick Start Guide
C
Security cable
installation point
Pass a commercially available anti-theft wire
lock through here when you want to secure the
projector to a fixed object. s p.28
A
D
B
B
E
C
D
Air filter
(Air intake vent)
This prevents dust and other foreign particles
from getting inside the projector when air is
drawn in. The projector displays a warning
message when it is time to clean or replace the
air filter. s p.56, 61
E
Front adjustable
feet
s p.6
