Introduction
13

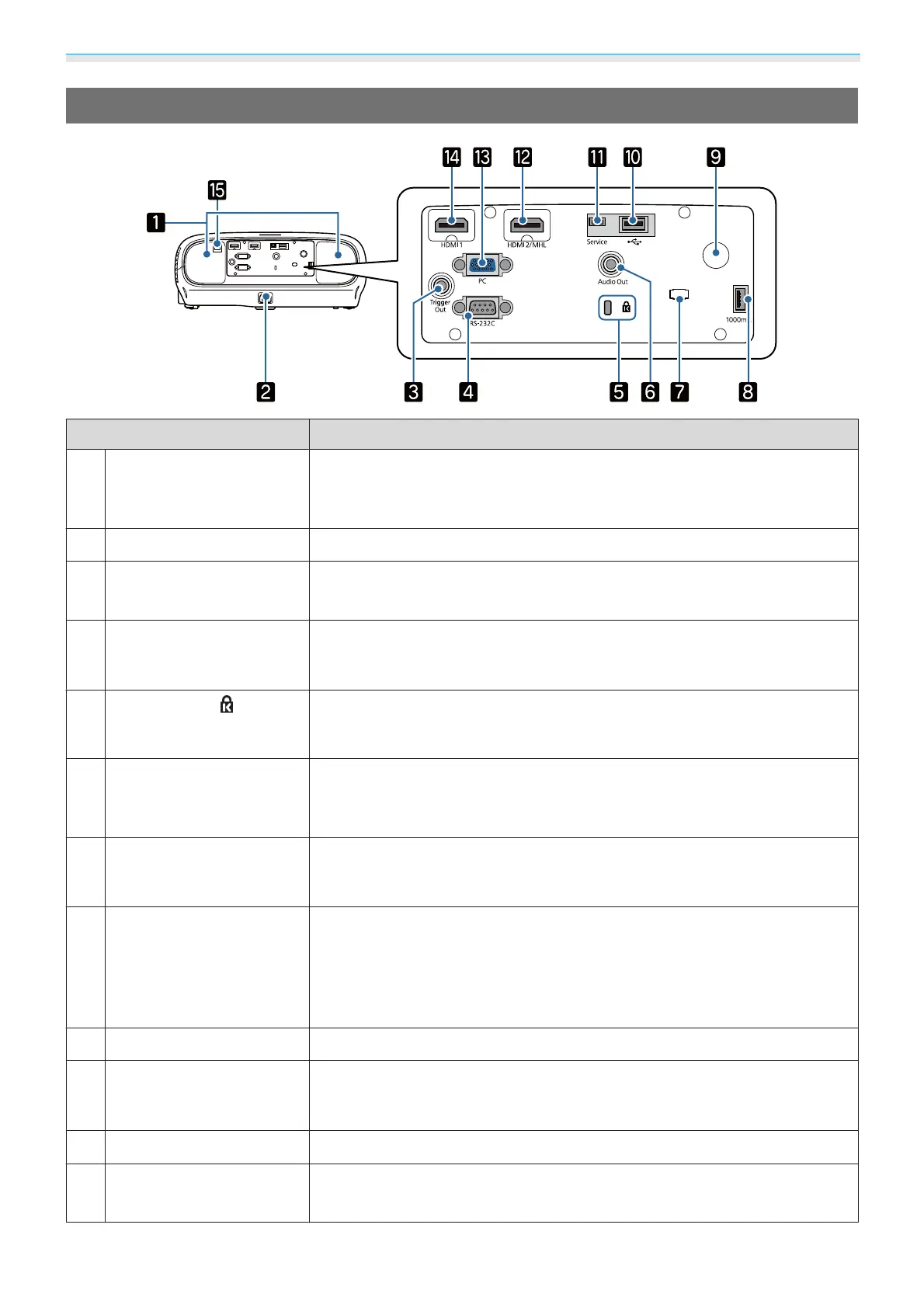

Rear
Name Function
a
Speaker
(EH-TW6700W/EH-
TW6700 only)
The projector's built-in speaker. Outputs audio. Set Inverse Audio to On to
use the built-in speaker when the projector is suspended from a ceiling.
s Settings - Audio - Inverse Audio p.89
b
Power inlet
Connect the power cord. s p.28
c
Trigger Out port
(EH-TW6800 only)
Connects with external devices such as motorized screens.
s p.25
d
RS-232C port
(EH-TW6800 only)
When controlling the projector, connect the projector to a computer with an
RS-232C cable. This port is for control use and should not normally be used.
s p.132
e
Security slot ( )
The security slot compatible with the MicroSaver security system manufac-
tured by Kensington. For more details, visit the homepage of Kensington at
http://www.kensington.com/.
f
Audio Out port
(EH-TW6700W/EH-
TW6700/EH-TW6300 only)
Outputs audio during playback to external speakers.
s p.24
g
Cable holder
The weight of the cable may result in imperfect insertion of its connector. Put
a commercially available clamping band (cable tie) through this holder to
bind and fix the cable to prevent them from becoming loose.
h
1000 mA power supply
port
(EH-TW6800/EH-
TW6700W/EH-TW6700 on-
ly)
Connects the power supply port for the media streaming device or optical
HDMI cable.
i
Remote receiver
Receives signals from the remote control. s p.27
j
USB port
Connects USB devices such as a USB memory device or a digital camera, and
projects images as a slideshow.
s p.72
In addition, connects an optional wireless LAN unit.
s p.25
k
Service port
Service port. This is not normally used.
l
HDMI2/MHL port
Connects HDMI compatible video equipment and computers. s p.20
Also, connects MHL compatible smartphones and tablets.
s p.20
