EH-TW8000/TW9000/TW9000W Disassembly and Assembly CONFIDENTIAL
SEIKO EPSON 71 Revision A
7. Remove the 10 screws ( )( )( ), and remove the MA Board (assembly).

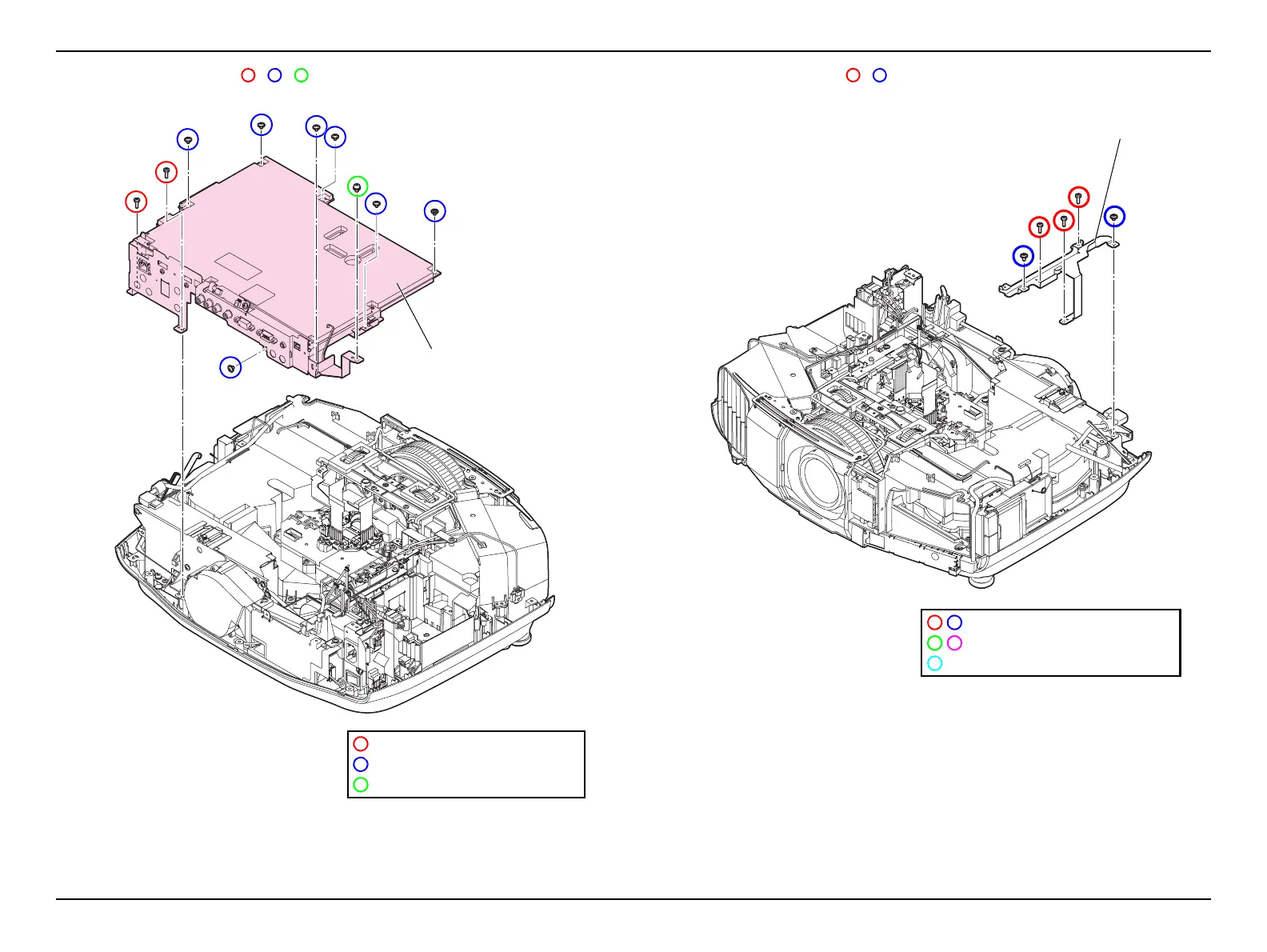

Figure 3-11.
8. Remove the five screws ( )( ), and remove the MA Fasten Plate C.
Figure 3-12.
C.B.P-TITE SCREW,3X10,F/ZB-3C
C.C.SCREW,3X4,F/ZN-3C
C.P.(O)SCREW,4X6,F/NI
MA Board
(assembly)
MA Fasten Plate C
C.P.(S-P1)SCREW,3X10,F/ZN-3C
C.B.P-TITE SCREW,3X10,F/ZB-3C
C.C.SCREW,3X4,F/ZN-3C
