EH-TW8000/TW9000/TW9000W Disassembly and Assembly CONFIDENTIAL
SEIKO EPSON 76 Revision A

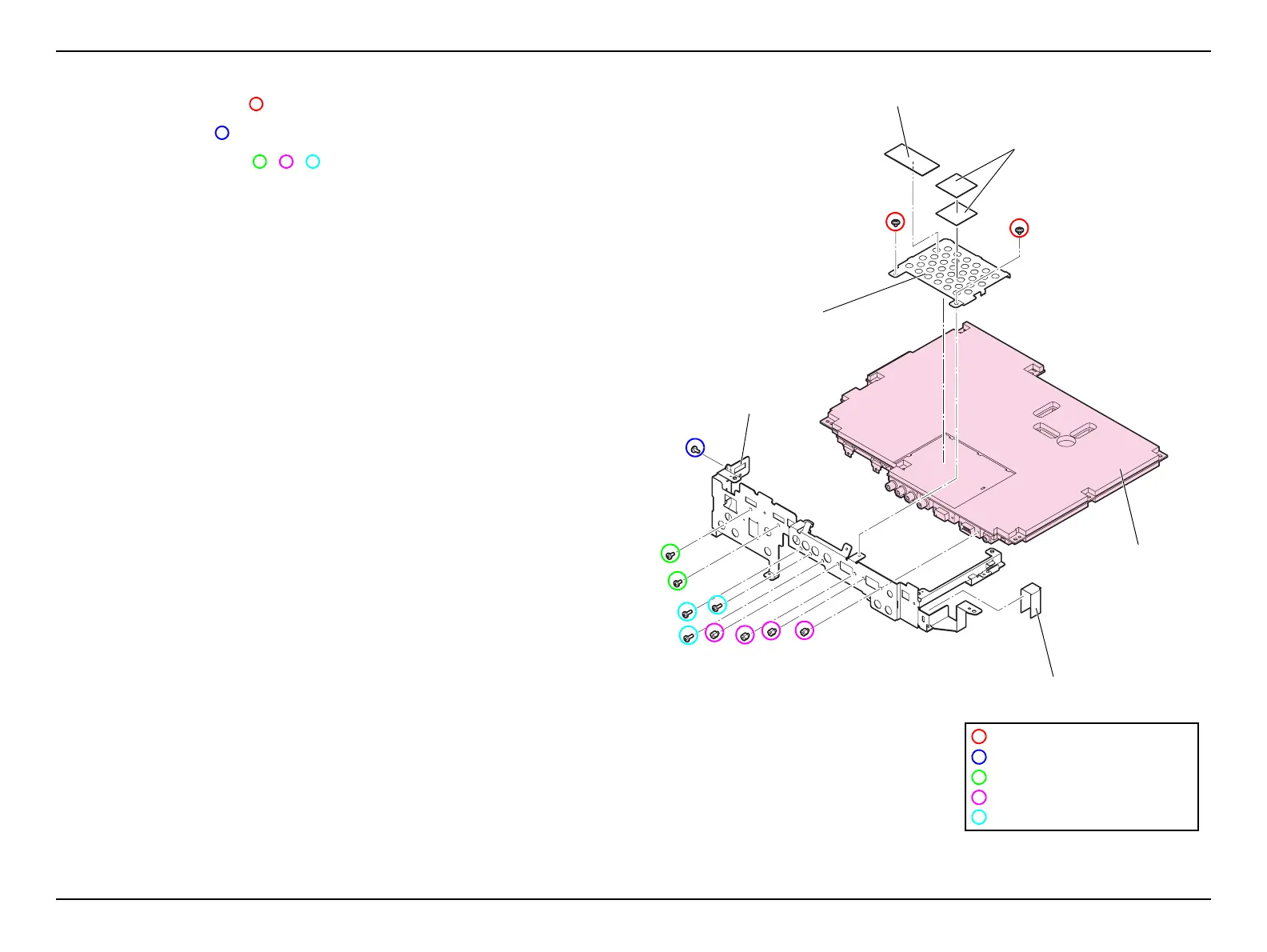

11. Remove the EMI Sheet C (x2) and the EMI Sheet from the MA Shield Plate A.
12. Remove the two screws ( ), and remove the MA Shield Plate A.
13. Remove the screw ( ). (EH-TW9000W only)
14. Remove the nine screws ( )( )( ), and remove the MA Fasten Plate.
15. Remove the IF Shade Sheet B from the MA Fasten Plate.
Figure 3-16.
MA Fasten Plate
EMI Sheet C
EMI Sheet
Optical Engine and
MAB Set
MA Shield Plate A
C.C.SCREW,3X4,F/ZN-3C
C.B.SCREW,3X8,F/ZB-3C
C.B.SCREW,3X8,F/ZB-3C
1/4-40X1/4,H.H.,F/NI,O SCREW
IF Shade Sheet B
C.B.P-TITE SCREW,3X10,F/ZB-3C
