Epson EH-TW9300 User Manual

Preparing
20
When using a commercially available computer cable
When using a commercially available HDMI cable

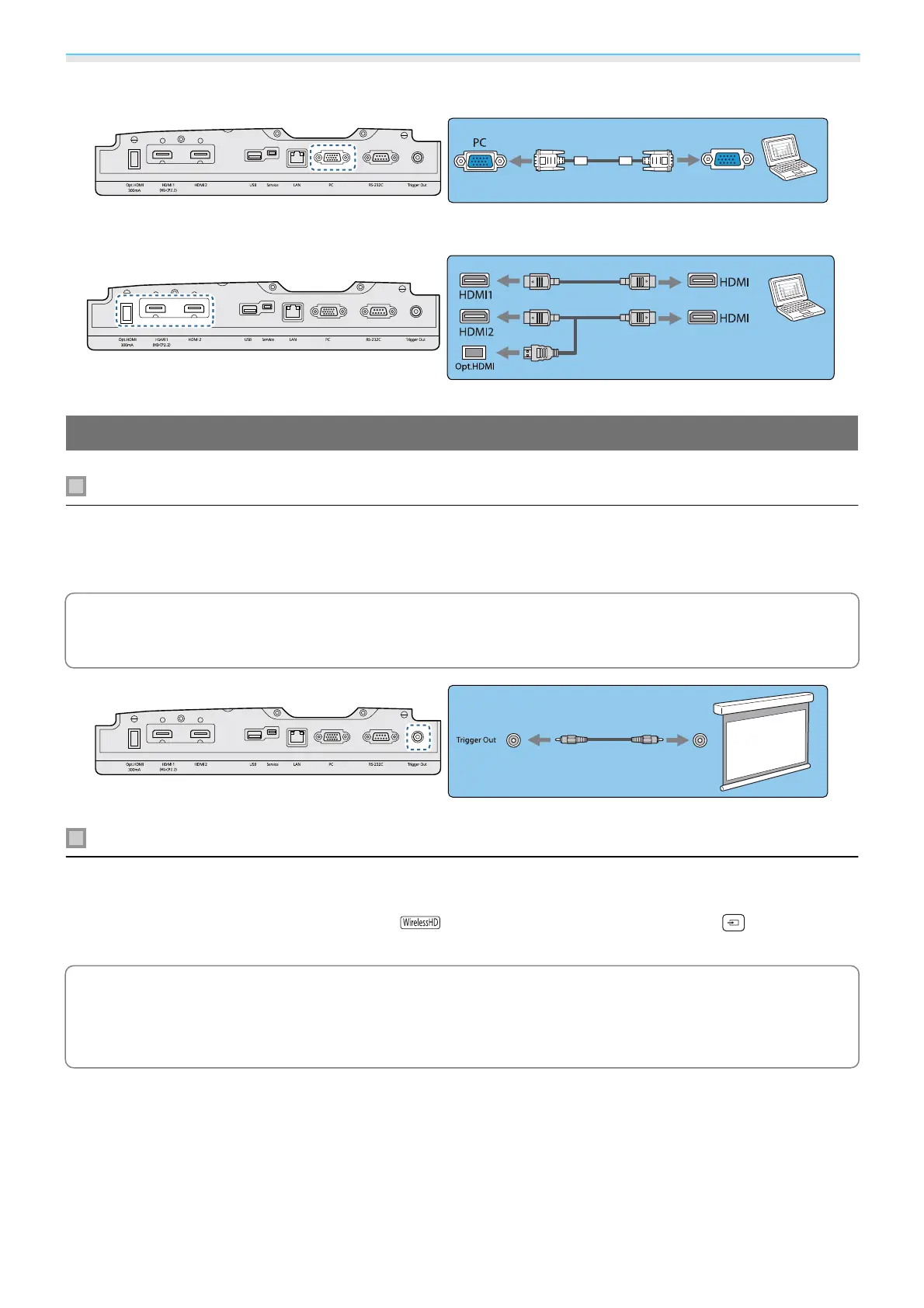

Connecting External Equipment
Connecting to the Trigger Out port
To connect external devices such as motorized screens, connect a mini-jack stereo cable (3.5 mm) to the
Trigger Out port. When set to on, a signal (12 V DC) is output from this port to communicate the projector's
status (On or Off) to connected devices such as electric screens.
c
When using the Trigger Out port, set Trigger Out to Power (EH-TW9300W/EH-TW9300 only) or
On (EH-TW8300W/EH-TW8300/EH-TW7300 only).
s Extended - Operation - Trigger Out p.83
Connecting WirelessHD devices (EH-TW9300W/EH-TW8300W only)
The projector receives transmissions from the WirelessHD Transmitter, and projects the images. s p.49
Change the projected image by pressing the button on the remote control or the button on the
control panel.
c
•
When receiving WirelessHD images, make sure WirelessHD is set to On. sSettings - WirelessHD -
WirelessHD p.80
•
You can change which device is displayed by selecting a device from Device Connections in HDMI
Link.
sSettings - HDMI Link - Device Connections p.80
Connecting Smartphones or Tablets
You can connect MHL compatible smartphones or tablets to the WirelessHD Transmitter. Use an MHL
compatible cable to connect the micro USB port of smartphones and tablets to the HDMI4 port on the
WirelessHD Transmitter.

Epson EH-TW9300 Specifications

General

Number of colors	1.073 billion colors
Native aspect ratio	16:9
Projection distance	3 - 6.3 m
Projection technology	3LCD
Contrast ratio (typical)	1000000:1
Screen size compatibility	50 - 300 \
Projector native resolution	1080p (1920x1080)
Keystone correction, vertical	± 30 °
Built-in display	Yes
Display diagonal	0.74 \
Lamp power	250 W
Light source type	Lamp
Service life of light source	3500 h
Service life of light source (economic mode)	5000 h
Noise level	24 dB
Country of origin	China
2D/3D frequency image	240/480 Hz
Noise level (economic mode)	20 dB
Focus	Auto
Throw ratio	1.35 - 2.84:1
Focal length range	22.5 - 46.7 mm
Composite video in	-
Serial interface type	RS-232C
USB 2.0 ports quantity	1
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Placement	Desktop
Product type	Standard throw projector
Product color	Black
Market positioning	Home cinema
Cable lock slot type	Kensington
Color modes (2D)	Bright cinema, Cinema, Dynamic, Natural
Color modes (3D)	Cinema, Dynamic
Video processing	10 bit
Supported 3D formats	Side by side, Top and bottom
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.35 W
Power consumption (typical)	335 W
Power consumption (PowerSave)	270 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	10 - 90 %
Cables included	HDMI
Bundled software	EasyMP Multi PC Projection
Handheld remote control	No
Pallet width	800 mm
Pallet height	4630 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pack	1 pc(s)
Quantity per pallet	16 pc(s)
Quantity per pallet layer	2 pc(s)

Weight and Dimensions

Depth	450 mm
Width	520 mm
Height	170 mm
Weight	11000 g
Package depth	660 mm
Package width	515 mm
Package height	260 mm
Package weight	14330 g
