Useful Functions

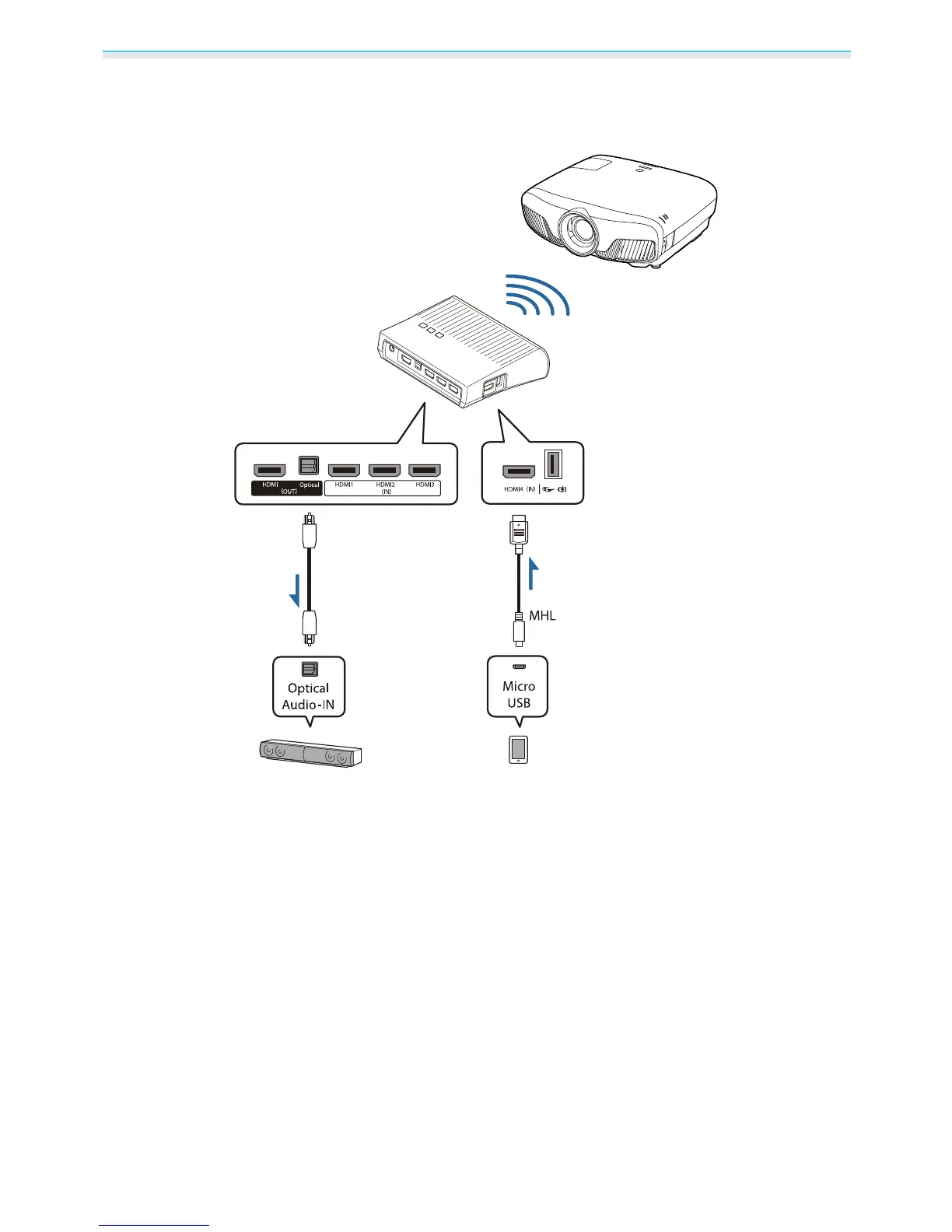

Connection example 4: Viewing with a connected smart device

Connect an MHL cable to the HDMI4 port.
