Epson EH-TW9400 User Manual

Introduction
6

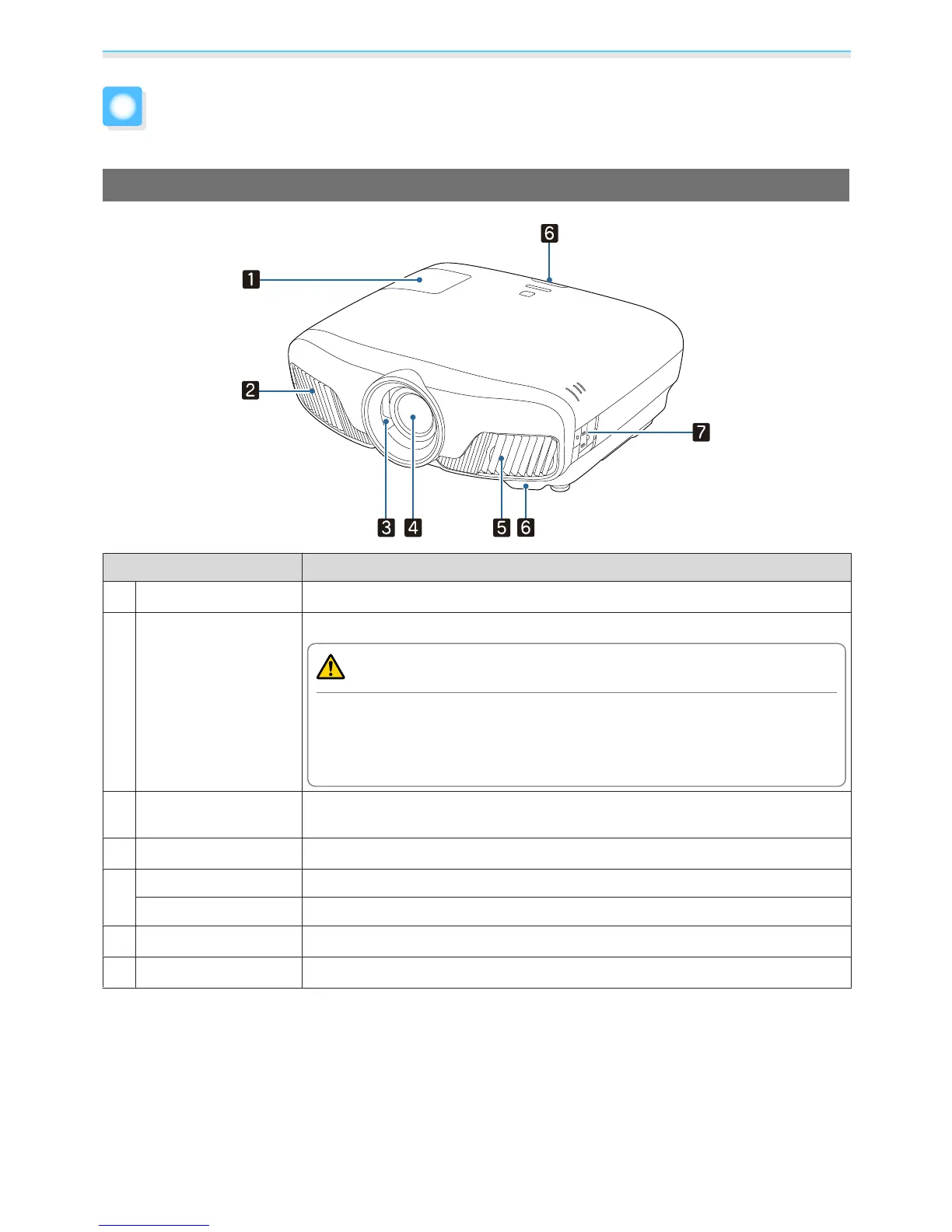

Part Names and Functions
Front/Top
Name Function
a
Lamp cover
Open when replacing the projector's lamp. s p.103
b
Air exhaust vent
Exhaust vent for air used to cool the projector internally.
Caution
While projecting, do not put your face or hands near the air exhaust vent,
and do not place objects that may become warped or damaged by heat near
the vent. Hot air from the air exhaust vent could cause burns, warping, or
accidents to occur.
c
Lens shutter
Links to the projector's power on/off function, and automatically opens and closes
the shutter.
s p.25
d
Lens
Images are projected from here.
e
Air intake vent
Intake vent for air used to cool the projector internally.
Air filter cover
When replacing the air filter, open this cover and remove the air filter. s p.102
f
Remote receiver
Receives signals from the remote control. s p.24
g
Control panel
Operates the projector. s p.7

Epson EH-TW9400 Specifications

General

Matrix size	0.74 \
Number of colors	1.07 billion colors
Native aspect ratio	16:9
Projection distance	3 - 6.3 m
Vertical scan range	192 - 240 Hz
Projection technology	3LCD
Contrast ratio (typical)	1200000:1
Screen size compatibility	50 - 300 \
Projector native resolution	2160p (3840x2160)
Keystone correction, vertical	-30 - 30 °
Lamp type	UHE
Lamp power	250 W
Light source type	Lamp
Service life of light source	3500 h
Service life of light source (economic mode)	5000 h
Full HD	Yes
Video processing	10 bit
Video color modes	Cinema, Dynamic, Natural, Bright cinema
Supported 3D formats	Side by side, Top and bottom
3D video colour modes	3D Dynamic, 3D Cinema
Analog signal format system	Not supported
Throw ratio	1.35 - 2.84:1
Focal length range	22.5 - 46.7 mm
Aperture range (F-F)	2 - 3
Vertical lens shift range	-96.3 - 96.3 %
Horizontal lens shift range	-47.1 - 47.1 %
DVI port	No
Audio (L/R) in	-
Composite video in	0
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Placement	Ceiling, Desktop
Product type	Standard throw projector
Product color	Black
Market positioning	Home cinema
Cable lock slot type	Kensington
Noise level	31 dB
Country of origin	China
2D/3D frequency image	240/480 Hz
Noise level (economic mode)	20 dB
Power source	AC
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.35 W
Power consumption (typical)	355 W
Power consumption (economy mode)	271 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	10 - 90 %
Cables included	AC, HDMI
Bundled software	EasyMP Multi PC Projection
Pallet weight	0 g
Quantity per pack	1 pc(s)
Quantity per pallet	16 pc(s)
Quantity per pallet layer	2 pc(s)
Harmonized System (HS) code	85286200
Software support	via: AMX, Crestron (Network), Control4

Weight and Dimensions

Depth	450 mm
Width	520 mm
Height	193 mm
Weight	11200 g
Package depth	654 mm
Package width	512 mm
Package height	264 mm
Package weight	14420 g
