2-4 Fitting the Projector Plate to the Ceiling Plate

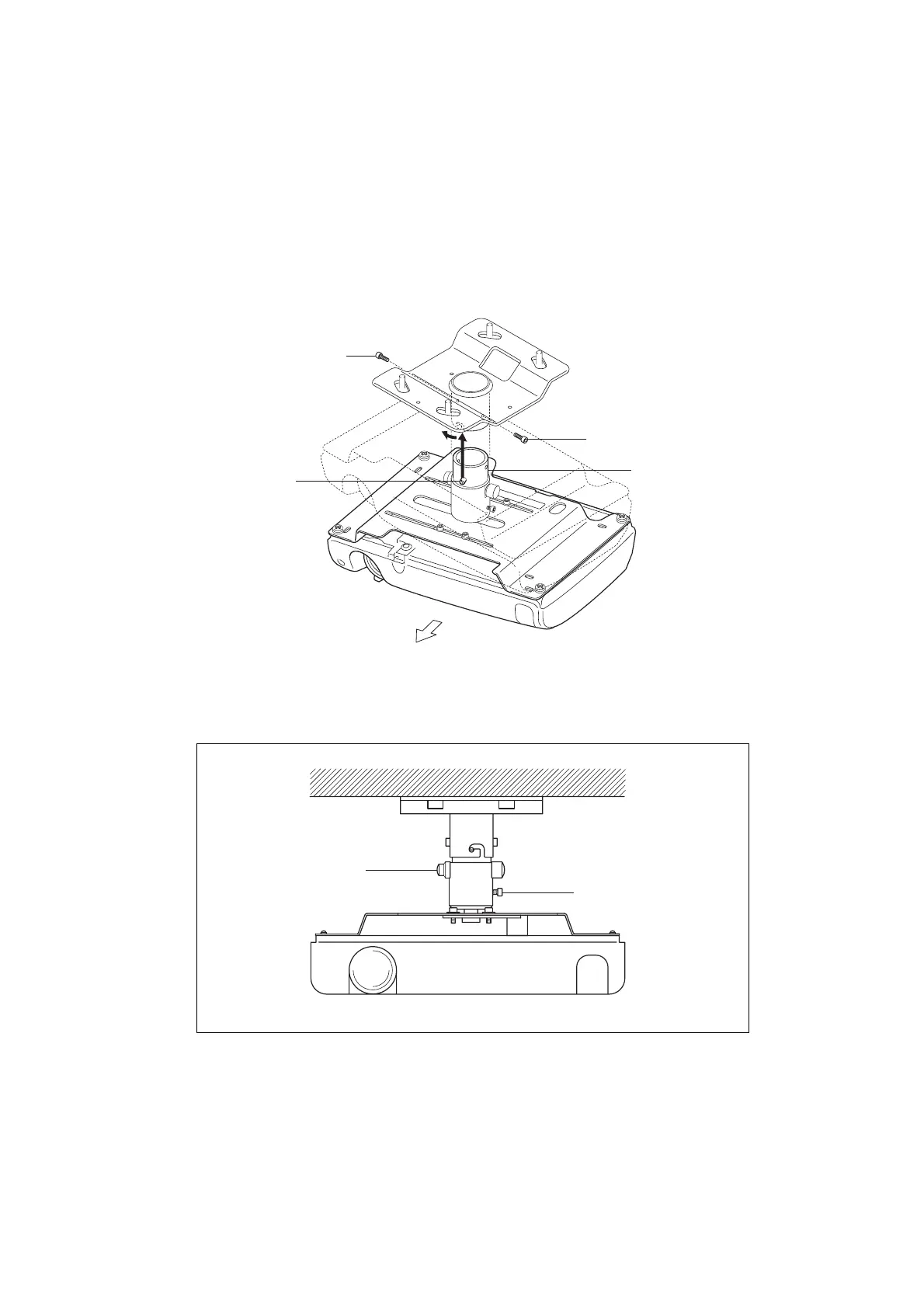

(1) Insert the ball joint of the projector plate into the ceiling plate.
Put the two protrusions on the ball joint into the grooves of the ceiling plate.
Fit the plates together so that the ball joint is in the direction illustrated (Front
view).
(2) Tighten the two plate securing screws firmly with the hexagon wrench
provided.
Plate securing
screw
Plate securing screw
Projector lens side
Ball joint
Protrusions (2 pcs.)
Front view
Tilt adjusting screw/
screw cap (Left side)
Tilt fixing screws
(Right side/Rear side)
