Part Names and Functions

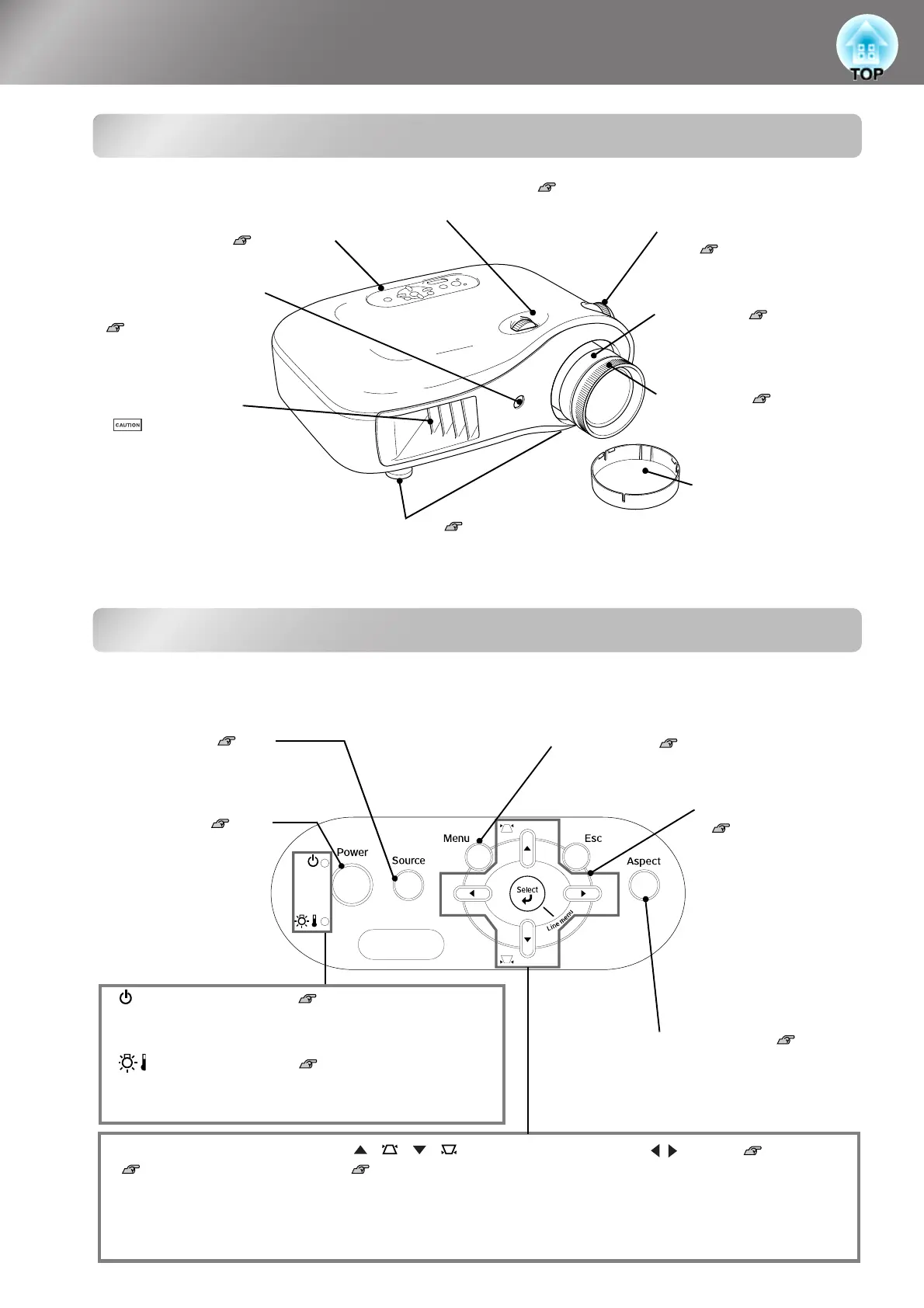

Front / Top
Control panel
Buttons with no explanation function in the same way as the corresponding buttons on the remote
control. Refer to "Remote control" for further details on these buttons.
• Front adjustable feet p.17
Extend to adjust the projection angle so that the
projector is horizontal when placed on a desk top.
• Control panel See below
• Air exhaust vent
Remote control light-
receiving area
p.13
Receives signals from the
remote control.
• Vertical lens adjustment
dial p.16
Moves the lens vertically.
• Lens cover
Attach when not using
the projector to prevent
the lens from becoming
dirty or damaged.
•
or
zonta
ens a
ustment
a
p.
Moves the lens horizontally.
Do not touch the exhaust vent
immediately after projecting, or
while projecting, since it
becomes hot.
• Focus ring p.16
Adjusts the image focus.
• Zoom ring p.16
Adjusts the image size.
• (Operation) indicator p.35
Flashes or lights in different colours to indicate the operating
status of the projector.
• (Warning) indicator p.35
Flashes or lights in different colours to indicate problems
with the projector.
• Power button p.14
Turns the projector power
on or off.
• Select/Line menu button
p.18
,
24
,
34
• buttons p.20,
34
Used as right/left buttons to
select adjustment values in
menus.
• / / buttons
p.17, 18, 20, 24, 34
Used as up/down buttons to select items in
menus and select menus.
If the menus are not displayed, correct the
keystone distortion.
• Menu button p.34
• Source button p.15
Selects the image source.
• Esc button
p.18, 20
,
24
,
34
• Aspect button p.18
