Part Names and Functions

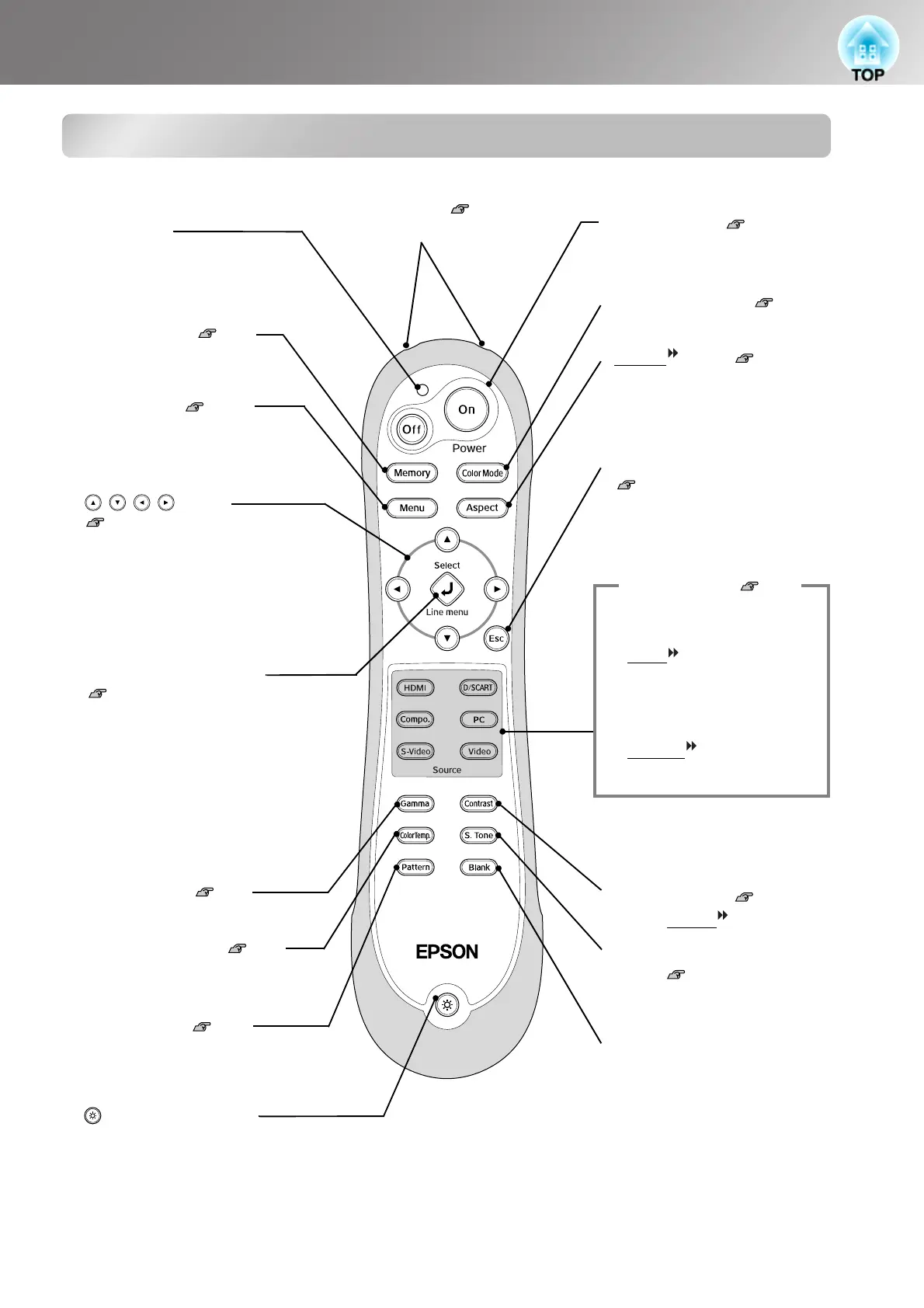

Remote control
• Remote control light-
emitting area p.13
Outputs remote control signals.
• On/Off buttons p.14
Turns the projector power on/off.
Indicator
Illuminates when remote control
signals are being output.
• Memory button p.24
Retrieves stored memories.
• Menu button
p.34
Displays the full-screen
configuration menus.
• Select/Line menu button
p.18, 24
,
34
Displays the line menu.
When viewing a menu, press this
button to select the menu item and
proceed to the next display.
button
p.18, 20
,
22, 24
,
34
Press to select menu items and
adjustment values and to adjust the
zoom and focus.
• Gamma button p.20
Adjusts the gamma values.
• Color Temp. button p.20
Adjusts the absolute colour
temperature.
• Contrast button p.28
Adjusts contrast
.
• S.Tone (Skin Tone)
button p.20
Adjusts the skin tones of people
who appear in the images.
• Blank button
The projected images switch off
and on each time this button is
pressed.
• (Illumination) button
All buttons on the remote control illuminate when this button is pressed.
The button illumination switches off automatically after about 10 seconds
have passed.
• Color Mode button p.18
Selects the colour mode.
• Aspect
button p.18
Selects the aspect.
• Esc button
p.18
,
20
,
24
,
34
Pressing [Esc] while viewing a
menu displays the previous menu.
Changes to the image from the
projector's selected port.
• HDMI button
• D/SCART button
• Compo. button
• PC button
• S-Video button
• Video button
Source buttons p.15
• Pattern button p.17
The test pattern image appears and
disappears each time this button is
pressed.
To Next Page
