Epson EP-4004 - Printing Area (Zero Margin; Borderless); Table 3 Printable Area Dimensions (Zero Margin; Borderless)

2013/Feb/08
Revision: 1 Page: 15
2.3.2. Printing Area (Zero margin / Borderless)
The printable areas of various paper sizes on the EP-4004/Artisan 1430/Stylus Photo 1430W/1500W printer is defined hereafter. Values

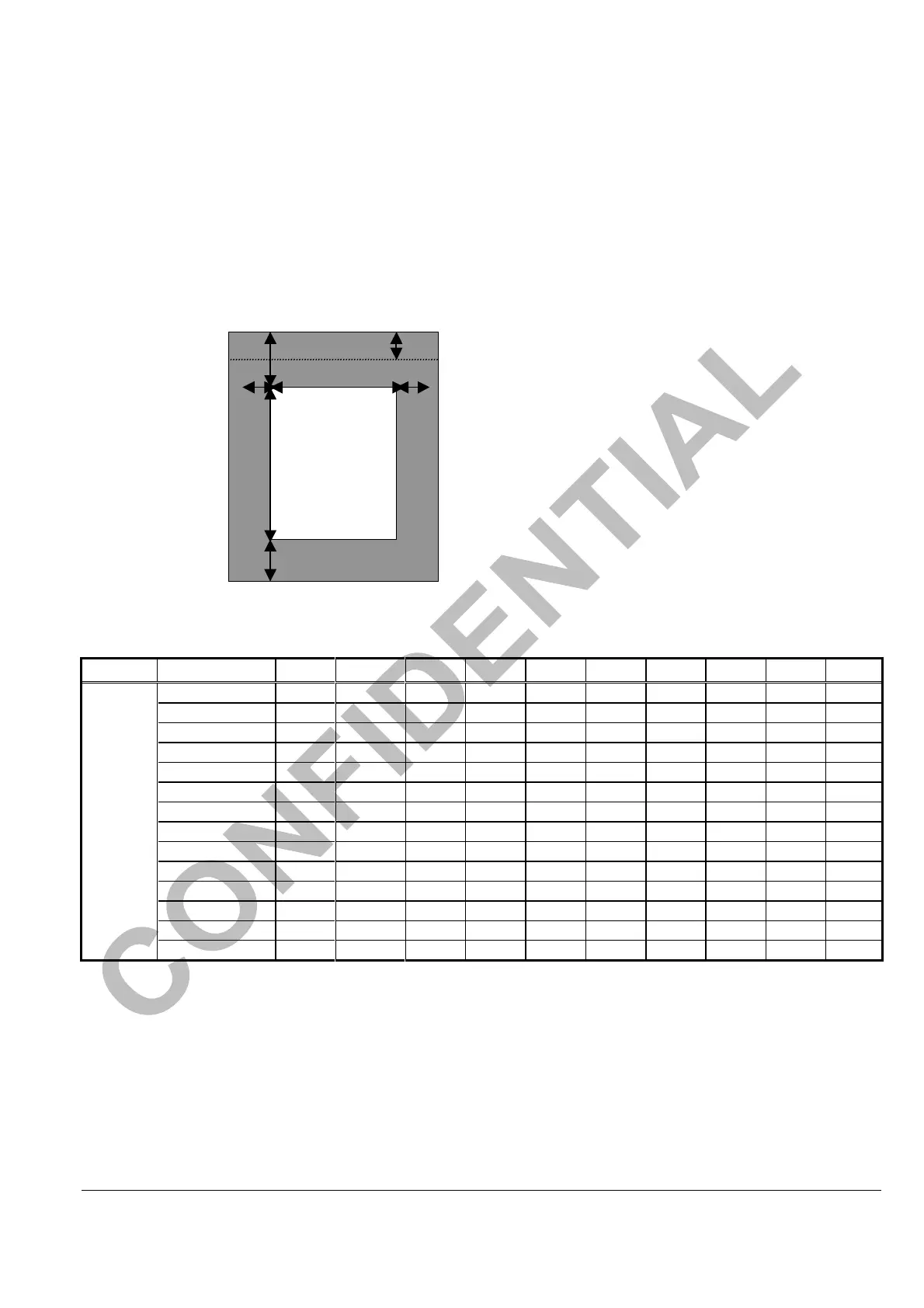

are expressed in dot units, where 1 dot = 1/360 inch. As is displayed in the following diagram, printable area can be defined as follows:
A = the width of the left override area
B’ = the width of the printable area
C = the width of the right override area
D = the length of the top override area
E’ = the length of the printable area
F = the length of the bottom override area
I = the length of the top override area (unprintable area)
D‘ I
A’ B’ C’
E’
F’
Table 3 Printable Area Dimensions (Zero margin/ Borderless)
The printing area is specified by A, B, D, and E.
Paper Size
U.S.A. Euro/Asia Japan
A’ B’ C’ D’ E’ F’ I
Cut Paper A3
O O O
0 4209 0 0 5953 0 0
A3+
O O O
0 4663 0 0 6846 0 0
A4
O O O
0 2976 0 0 4209 0 0
Letter
O X X
0 3060 0 0 3960 0 0
Yotsugiri / 10x17in
X X O
0 3600 0 0 4324 0 0
2L Size / 5x7in.
O O O
0 1800 0 0 2522 0 0
4x6in
O O O
0 1440 0 0 2160 0 0
L Size/3.5x5in.
X X O
0 1261 0 0 1800 0 0
Japanese Postcard
X X O
0 1417 0 0 2098 0 0
8x10in.
X X O
0 2880 0 0 3600 0 0
11x14in
O X X
0 3960 0 0 5040 0 0
US B
O X X
0 3960 0 0 6120 0 0
Credit card size
X X O
0 782 0 0 1289 0 0
Hi-Vision
O O O
0 1440 0 0 2560 0 0
1) Only Photo Paper, Matte Paper –Heavyweight, Card are able to margin less printing.
