283

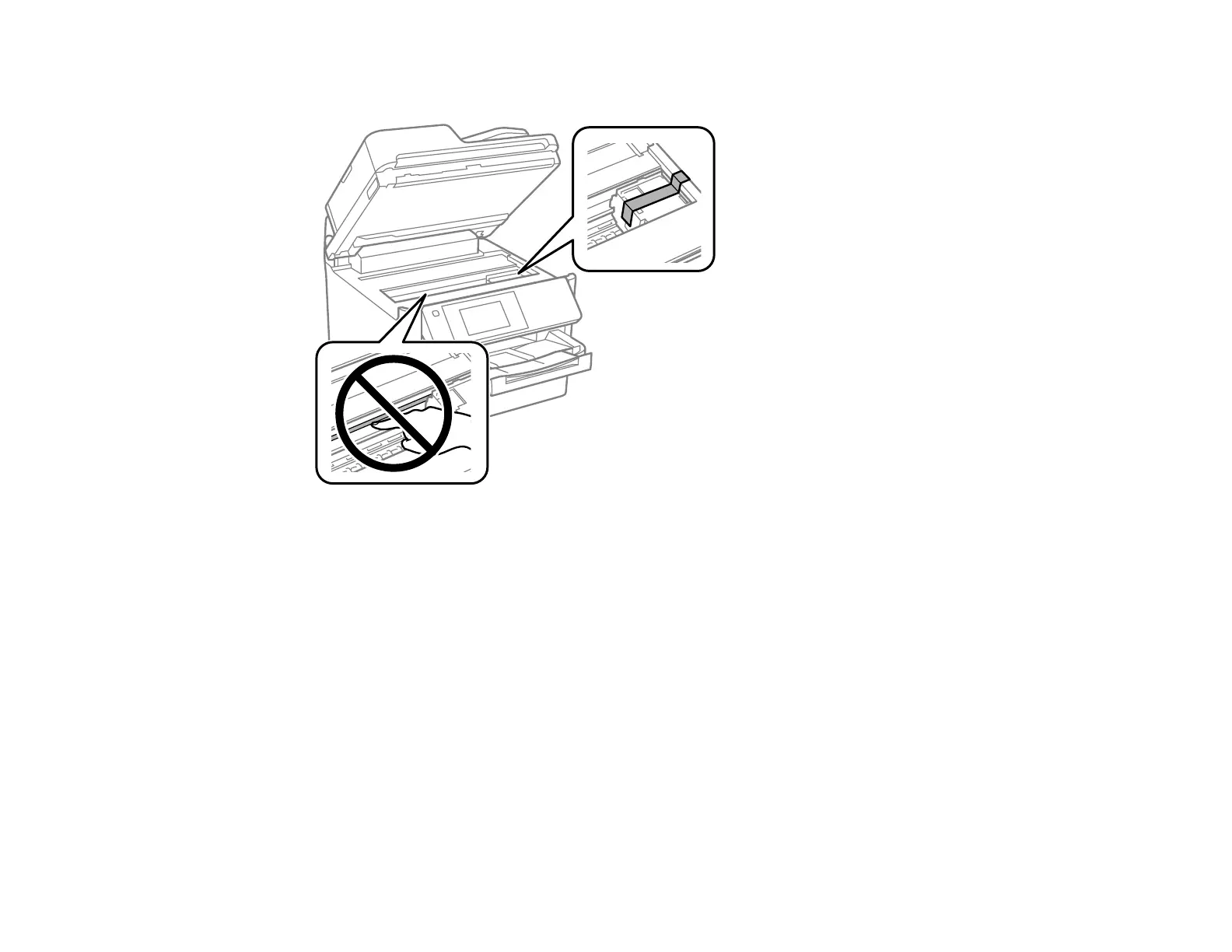

7. Secure the print head to the case with tape as shown.

Caution: Do not touch the translucent film inside the product; otherwise, you may damage your

product.

8. Lower the scanner unit.
