Note: If the optional paper cassette unit is installed, do not remove more than one cassette at a time.

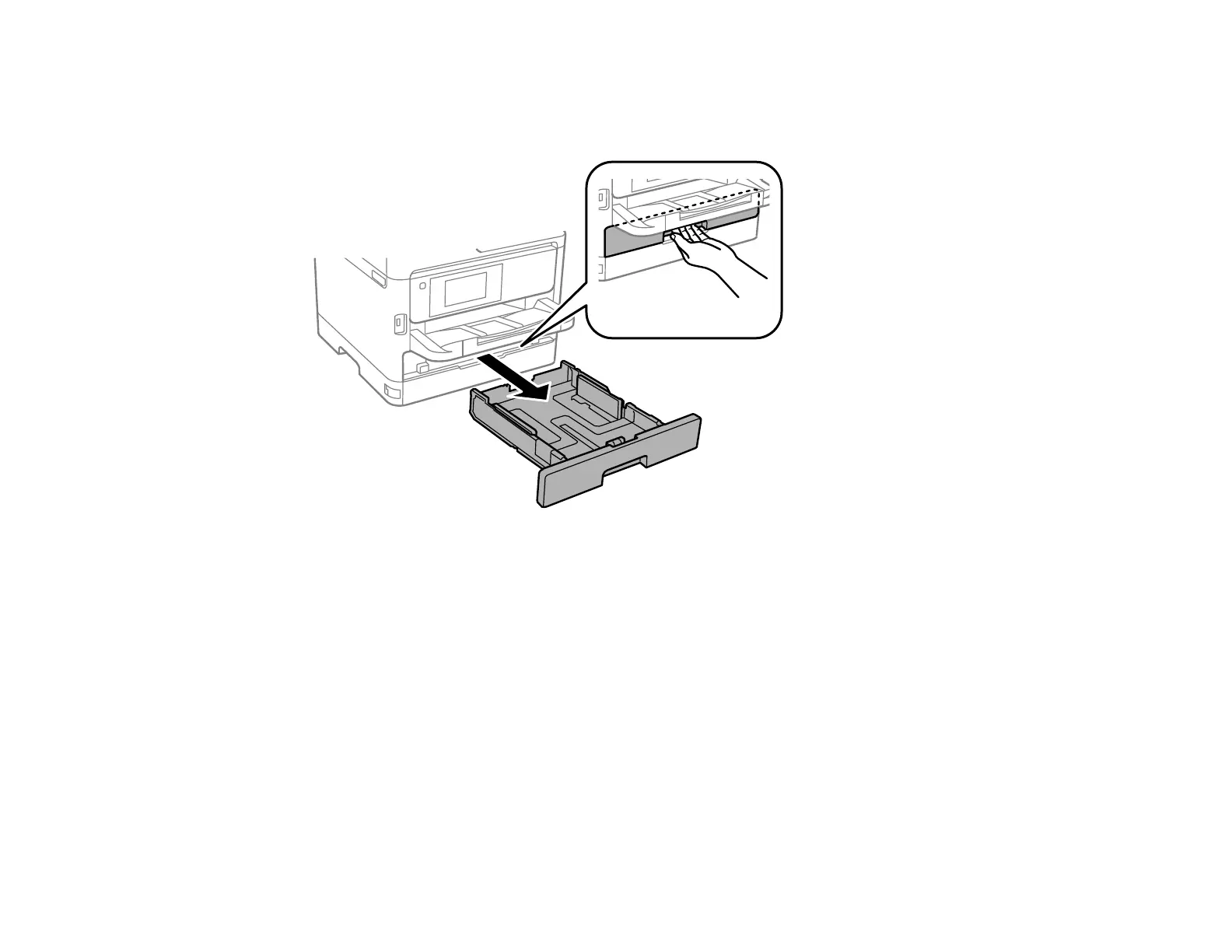

1. Make sure the product is not operating and pull out the paper cassette.
