Epson Expression 10000XL Specifications

Epson Expression 10000XL
8 - Epson Expression 10000XL 5/04

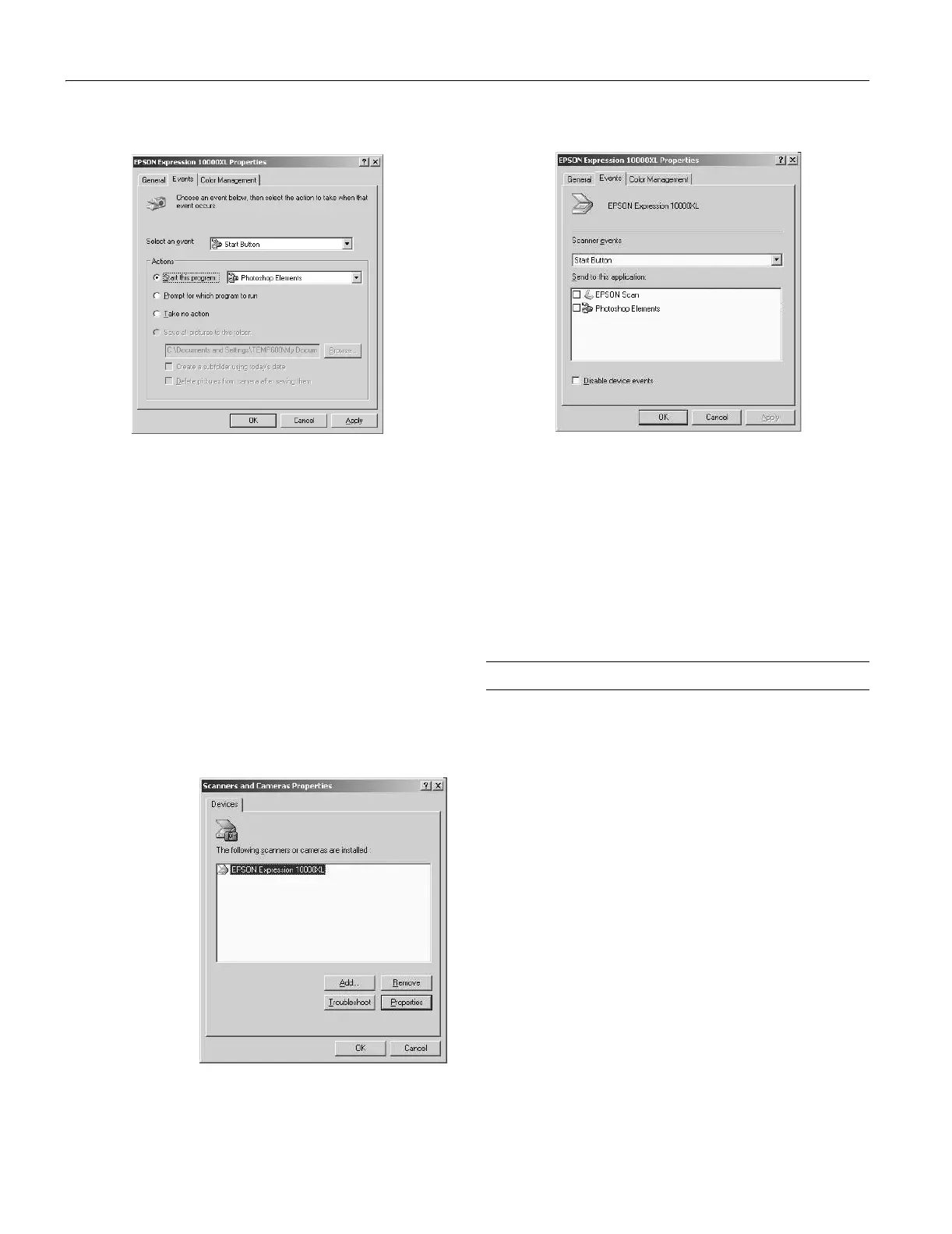

3. Click the
Events tab. You see this window.
4. Make sure the
Start Button is selected in the Select an event
box.
5. Click
Start this program, select a program from the list,
and then click
OK.
Note: If the program you want to use is not listed, open it
and then follow these steps again. If it is still not listed, it
cannot be opened using the
a Start button.
You can disable the
a Start button by clicking the Take no
action checkbox on the Events tab.
Windows Me, Windows 2000, and Windows 98
For all Windows users except XP, follow these steps to set up
the a Start button:
1. Double-click the
Scanners and Cameras icon in the
Windows Control Panel.
2. Select
Epson
Expression
10000XL
and
click the
Properties
button.
3. Click the
Events tab. You see this window.
4. Make sure
Start Button appears in the Scanner events box,
then deselect any applications you don’t want to use in the
Send to this application list. Leave checked only the
application(s) you want to assign to the a Start button.
5. Click
Apply, then click OK to close the Epson Expression
10000XL Properties window, then click
OK again to close
the Scanners and Cameras Properties window.
Note: You can disable the a Start button by clicking the Disable
device events checkbox on the Events tab.
Related Documentation
CPD-18060 Epson Expression 10000XL Start Here
sheet
CPD-18061 Epson Expression 10000XL User’s Guide
CPD-18062 Scanner Software CD-ROM (includes
HTML Reference Guide)

Epson Expression 10000XL Specifications

Resolution

optical resolution	2400 dpi
maximum resolution with Micro Step Drive technology	2400 x 4800 dpi
interpolated resolution	12, 800 x 12, 800 dpi

Power

voltage	AC 100V-120V, 220V-240V
frequency	50-60Hz
power consumption operating without optional unit	45W
power consumption operating with optional unit	55W
power consumption sleep mode without optional unit	6W

Operating Environment

operating temperature	41ºF to 95ºF (5ºC to 35ºC)
operating humidity	10% to 80% (no condensation)
storage humidity	10% to 85% (no condensation)

Interface and Connectivity

interface	USB 1.1/2.0, IEEE 1394 (FireWire), optional Ethernet
system compatibility	Windows 98SE, 2000 Me, XP; Macintosh OS 9.1 or later

Weight and Dimensions

maximum scan area	12.2" x 17.2" (310mm x 437mm)
width	25.8" (656mm)
depth	18.0" (458mm)
height	6.2" (158mm)
weight	28.7 lb (13 kg approx.)
