EPSON GT-15000
4 - EPSON GT-15000 12/03
Optional Automatic Document Feeder
(B813212) Specifications
General
Paper input/
output Load face-up; eject face-down
Paper quantity 100 pages (80 g/m
2
paper, maximum
total thickness under 0.48 inches
[12 mm])
100,000 sheets (load/eject MCBF)
Speed 10 ppm (monochrome, draft mode at
200 dpi)
Dimensions Width: 23.8 inches (606 mm)
Depth: 19.2 inches (488 mm)
Height: 5.3 inches (134 mm)
Weight Approximately 28.7 lb (13 kg)
Electrical
Input voltage 22.8 to 25.2 VDC
4.75 to 5.25 VDC
Input current 24 V: 1.5 A
5 V: 0.4 A
Optional IEEE 1394 Scanner Interface
Card (B808342) Specifications
General
Interface type IEEE 1394-1995 compatible
Data transfer
method Half-duplex Data/Strobe differential serial
Synchronization
method Clock synchronization with DS-Link
Encoding/
decoding DS-Link
Logic level 3.3 V
Compatible
connectors IEEE 1394-1995 compatible
Power class Power class code 100
No power supply from external
sources
Fitted with a repeat function with bus
power
Environmental
Temperature Operating: 41 to 95 °F (5 to 35 °C)
Storage: –13 to 140 °F (–25 to 60 °C)
Humidity (without
condensation) Operating: 10 to 80%
Storage: 10 to 85%
Connector pin assignments

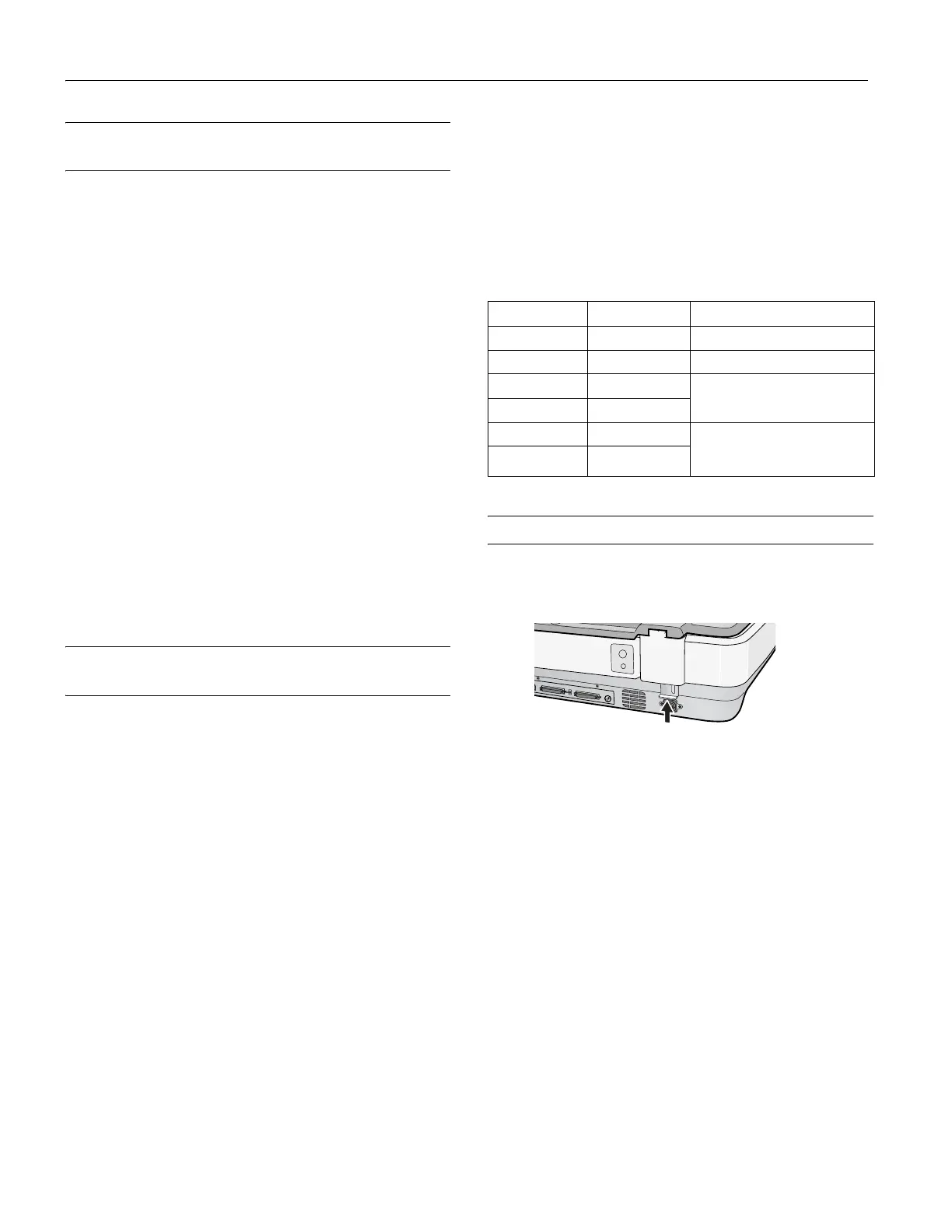

Unlocking the Scanner
To unlock the scanner, pull up the transportation lock to the
Unlock position:
To lock it, push it down.
Pin number Signal name Function
1 VP Cable power supply
2 VG Cable ground
3 TPB Strobe during receipt, data during
transmission (differential pair)
4TPB
5 TPA Data during receipt, strobe
during transmission (differential
pair)
6TPA

Epson GT-15000 Specifications

General

Scanner Type	Flatbed
Optical Resolution	600 x 1200 dpi
Color Depth	48-bit internal / 24-bit external
Connectivity	USB 2.0
Maximum Scan Area	11.7 x 17 inches
Paper Size	A4, Letter, Legal
