Epson L120 Service Manual

Confidential
Disassembly/Reassembly Overview 24
L120 Revision A

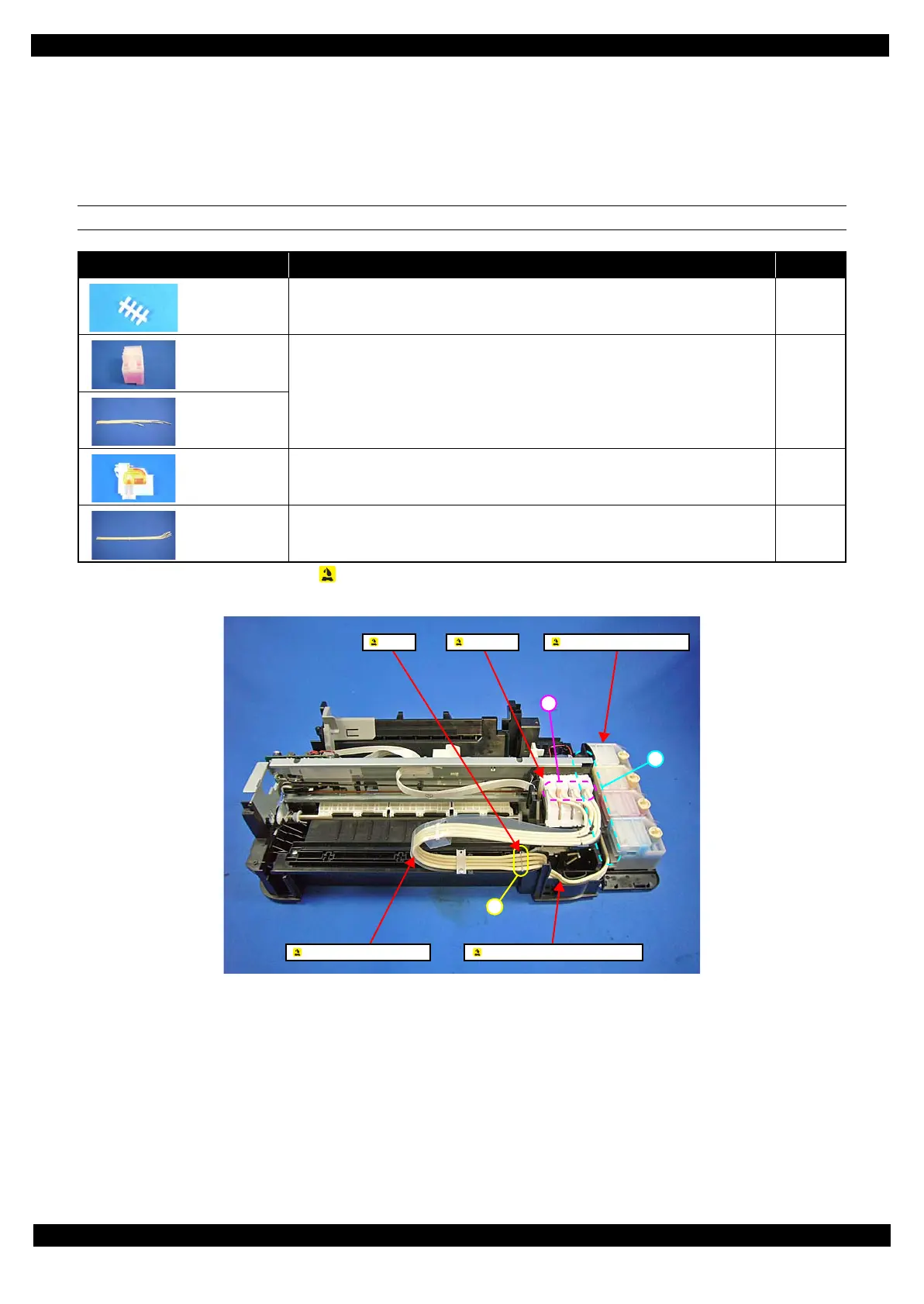

2.1.5.2 Factors which Affect the Safety of Service Personnel such as Ink Leakage during
Operation
Ink may spill when removing the following parts from L120.
This section describes the parts that may cause ink spill and the means to minimize the ink spill when removing
the parts.
THE PARTS THAT MAY CAUSE INK SPILL WHEN REMOVING
Note : These parts are indicated with the icon in disassembly/reassembly flowchart. (See "2.2 Disassembly/Reassembly Procedures
(p28)".)
Figure 2-9. Location
Parts When ink may spill Location
Joint Removing the Ink Supply Tank Tube Assy / Ink Supply Tube Assy from the Joint A
Ink Supply
Tank
• Removing the tubes of the Ink Supply Tank Tube Assy from the Joint
• Removing the tubes of the Ink Supply Tank Tube Assy from the Ink Supply Tank
A, B
Ink Supply
Tank Tube Assy
Adapter Removing the Ink Supply Tube Assy from the Adapter C
Ink Supply
Tube Assy
• Removing the Ink Supply Tank Tube Assy / Ink Supply Tube Assy from the Joint
• Removing the Ink Supply Tube Assy from the Adapter
A, C
A
C
B
Joint Ink Supply Tank Assy
Ink Supply Tank Tube Assy Ink Supply Tube Assy
Adapter

Epson L120 Specifications

Printing

print method	On-demand ink jet (piezoelectric)
nozzle configuration	180 nozzles Black, 59 nozzles each colour (Cyan, Magenta, Yellow)
maximum resolution	720 x 720 dpi
minimum ink droplet volume	3pl
print speed ISO Default Simplex - ISO 24734 Black	8.5ipm

Paper Handling

paper feed method	Friction feed
number of paper trays	1
input capacity	50 sheets, A4 Plain paper (75g/m[2])
maximum paper size	8.5 x 44"
print margin	3mm top, left, right, bottom

Electrical Specifications

rated voltage	AC 100-240V / 220-240V
rated frequency	50~60 Hz
power consumption printing	Approx. 10W
power consumption standby	Approx. 2.0W
power consumption sleep	Approx. 0.6W
power consumption power off	Approx. 0.3W

Dimensions & Weight

height	130mm (5.1")
width	215mm (8.5")
depth	461mm (18.1")
weight	2.4kg (5.3lb)
