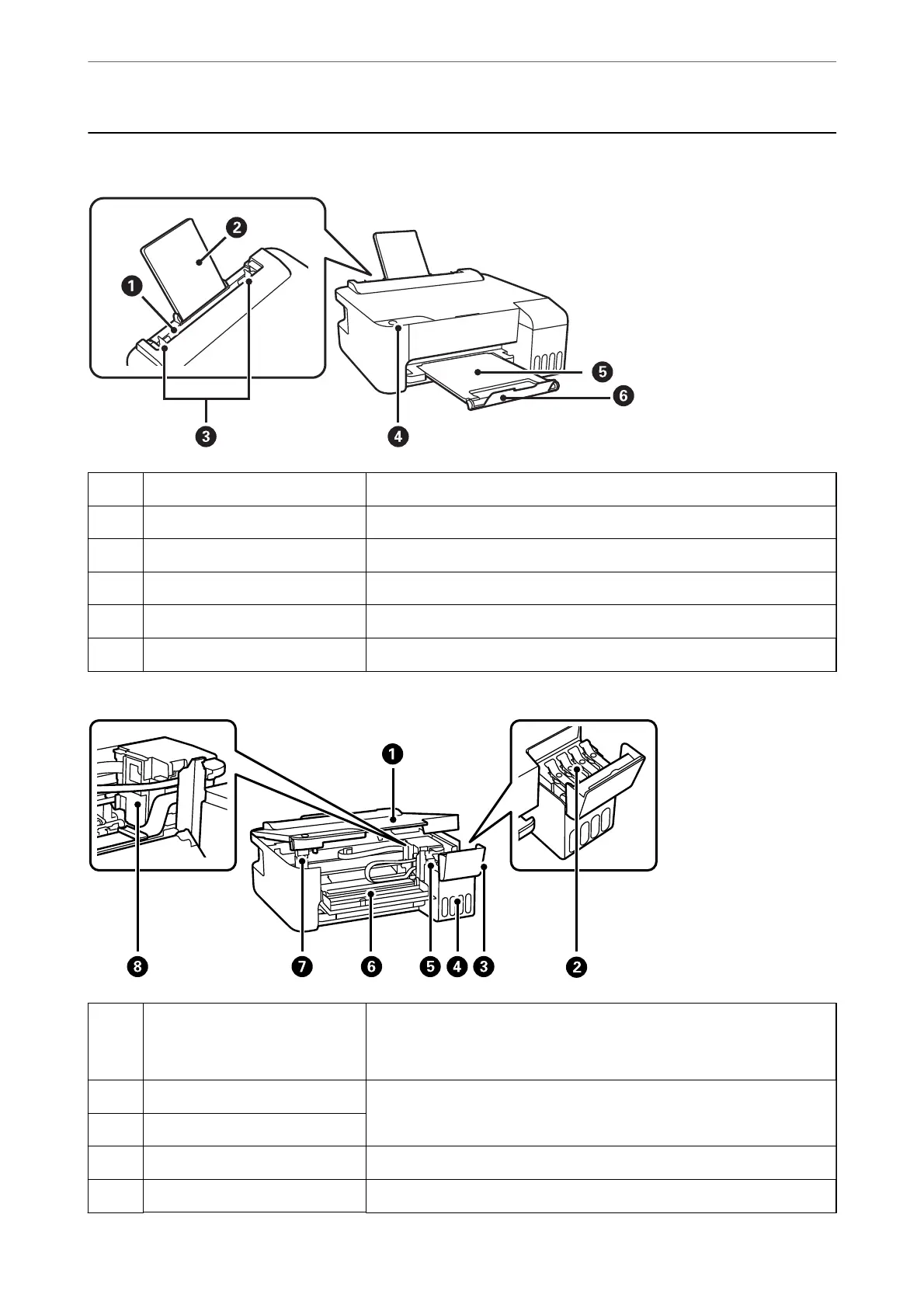

Part Names and Functions
A
Rear paper feeder Loads paper.
B
Paper support Supports loaded paper.
C
Edge guide Feeds the paper straight into the printer. Slide to the edges of the paper.
D
Control panel Allows you to operate the printer and indicates the printer's status.
E
Output tray Holds the ejected paper.
F
Stopper Position the stopper to prevent print outs from falling from the output tray.
A
Printer cover Open when removing jammed paper inside the printer.
Keep this cover closed while the printer is not in use to prevent foreign
substances from entering the printer.
B
Ink tank cap Open to rell the ink tank.
C
Ink tank cover
D
Ink tank unit Contains the ink tanks.
E
Ink reservoir tank (Ink tank) Supplies ink to the print head.
