Disassembly/Reassembly Overview 21
L365/L366,L360/L362,L310/L312,L220/L222,L130/L132 Series Revision A
 Ink Supply Tank Assy

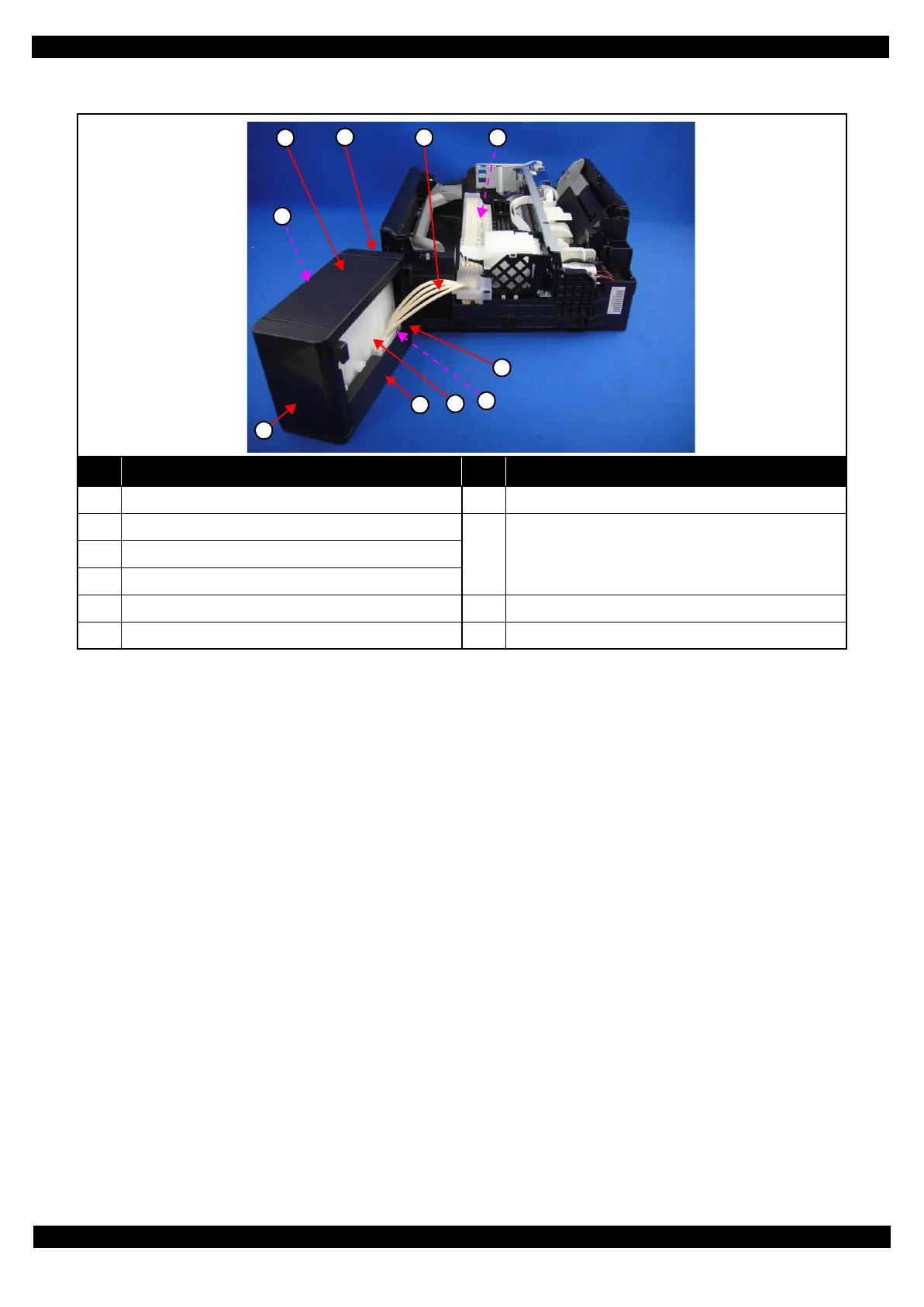

Figure 2-7. Ink Supply Tank Assy
No. Name No. Name
1 Cover Joint (p36) 7 Guide Tube Tank (p36)
2 Top Cover (p36)
8
Ink Supply Tank
Ink Supply Tank (Cyan) (p36)/Ink Supply Tank
(Magenta) (p36)/Ink Supply Tank (Yellow) (p36)/Ink
Supply Tank (Black) (p36)
3 Right Cover (p36)
4 Ink Supply Tank Tube Assy (p36)
5 Ink Supply Tube Assy (p37) 9 Bottom Cover (p36)
6 Cover Tube Tank (p36) 10 Left Cover (p36)
7
6
4
2
3
8
9
10
1
5

Epson L130 Specifications

General

Print Technology	On-demand inkjet (Piezo electric)
Print Resolution	5760 x 1440 dpi
Connectivity	USB 2.0
Minimum Ink Droplet Size	3 pl
Output Tray Capacity	30 sheets
Ink Colors	Black, Cyan, Magenta, Yellow
Weight	2.7 kg
Print Speed	Black: 27 ppm, Color: 15 ppm
Paper Capacity	50 sheets
Ink Type	Dye Ink
Compatible Operating Systems	Windows XP/Vista/7/8/8.1/10, Mac OS X 10.6.8 or later
Paper Sizes	A4, A5, A6, B5, Letter
Ink Bottles	Cyan, Magenta, Yellow, Black
Print Method	On-demand inkjet (Piezoelectric)
