Appendix Protection for Transportation 78
L365/L366,L360/L362,L310/L312,L220/L222,L130/L132 Series Revision A
5.3.3 Securing the Ink Supply Tank Assy/Top Cover
 Purpose
To prevent damage on the Ink Supply Tank Assy/Top Cover from shock during transportation.
 Risks if it is not performed
Damage on the Ink Supply Tank Assy/Top Cover.
 Preparation

Ink Supply Tank Assy
Prepare a piece of strong tape (length: 160 mm, width: 22 mm, fold one end 5 mm).
 Top Cover
Prepare two pieces of strong tape (length: 65 mm, width: 22 mm, fold one end 5 mm).
 Method

Ink Supply Tank Assy
Attach strong tape along the shapes of the Tank Assy as shown in Fig.5-5 to Secure the Frame Base and Ink Supply
Tank Assy with strong tape .
 Top Cover
Attach strong tape along the shapes of the Tank Assy as shown in Fig.5-5 to Secure the Ink Supply Tank Assy and
Top Cover with strong tape (x2).

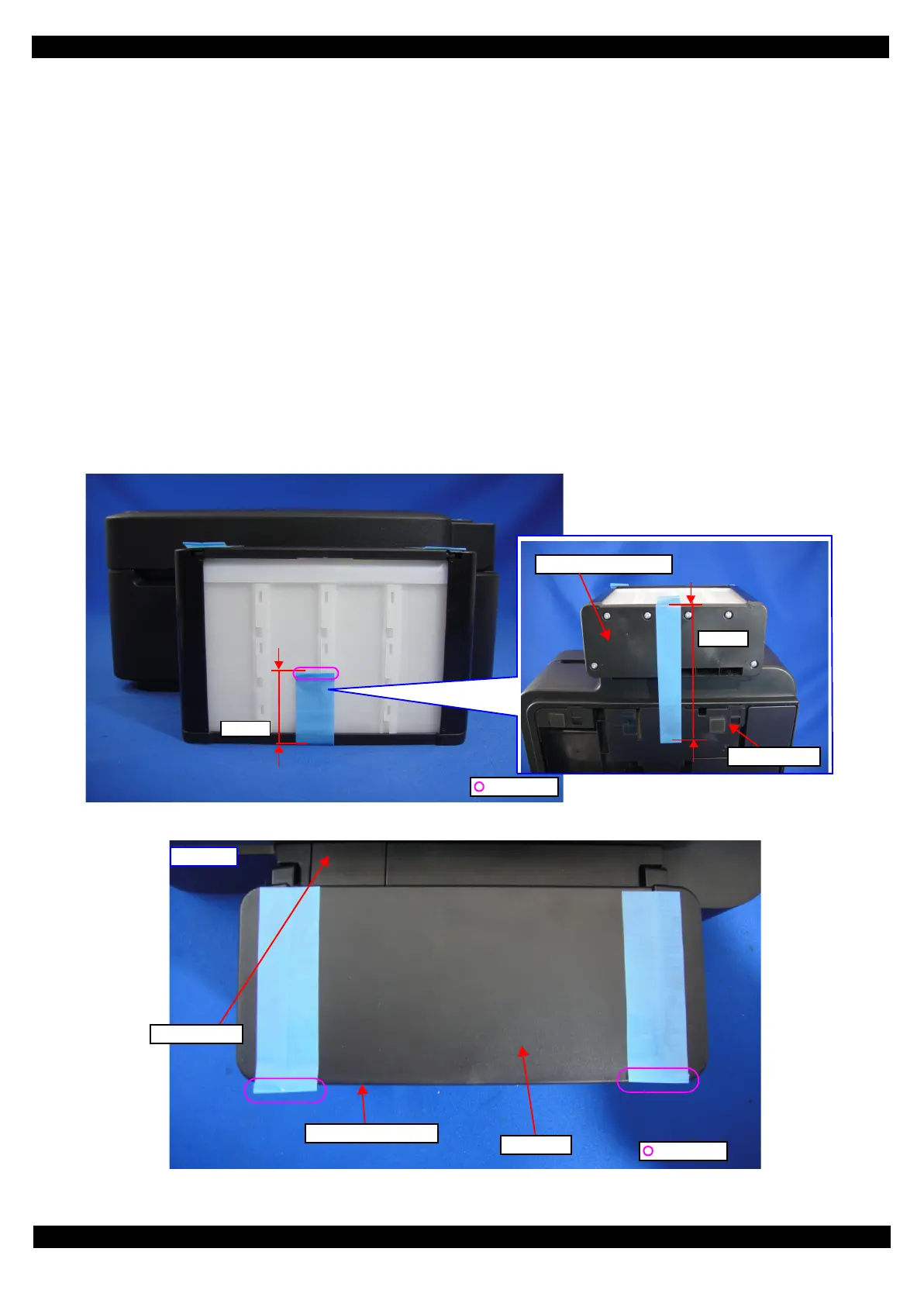

Figure 5-5. Securing the Ink Supply Tank Assy
Figure 5-6. Securing the Top Cover
140mm
Frame Base
Ink Supply Tank Assy
20mm
Folded ends
Right side
Top Cover
Housing Righr
Ink Supply Tank Assy
Folded ends

Epson L130 Specifications

General

Print Technology	On-demand inkjet (Piezo electric)
Print Resolution	5760 x 1440 dpi
Connectivity	USB 2.0
Minimum Ink Droplet Size	3 pl
Output Tray Capacity	30 sheets
Ink Colors	Black, Cyan, Magenta, Yellow
Weight	2.7 kg
Print Speed	Black: 27 ppm, Color: 15 ppm
Paper Capacity	50 sheets
Ink Type	Dye Ink
Compatible Operating Systems	Windows XP/Vista/7/8/8.1/10, Mac OS X 10.6.8 or later
Paper Sizes	A4, A5, A6, B5, Letter
Ink Bottles	Cyan, Magenta, Yellow, Black
Print Method	On-demand inkjet (Piezoelectric)
