Disassembly/Reassembly Overview 26
L365/L366,L360/L362,L310/L312,L220/L222,L130/L132 Series Revision A
2.1.5.2 Factors which Affect the Safety of Service Personnel such as Ink Leakage during
Operation
Ink may spill when removing the following parts from L365/L366,L360/L362,L310/L312,L220/L222,L130/
L132 Series.
This section describes the parts that may cause ink spill and the means to minimize the ink spill when removing
the parts.
THE PARTS THAT MAY CAUSE INK SPILL WHEN REMOVING
Note : These parts are indicated with the icon in disassembly/reassembly flowchart. (See "2.2 Disassembly/Reassembly Procedures
(p31)".)

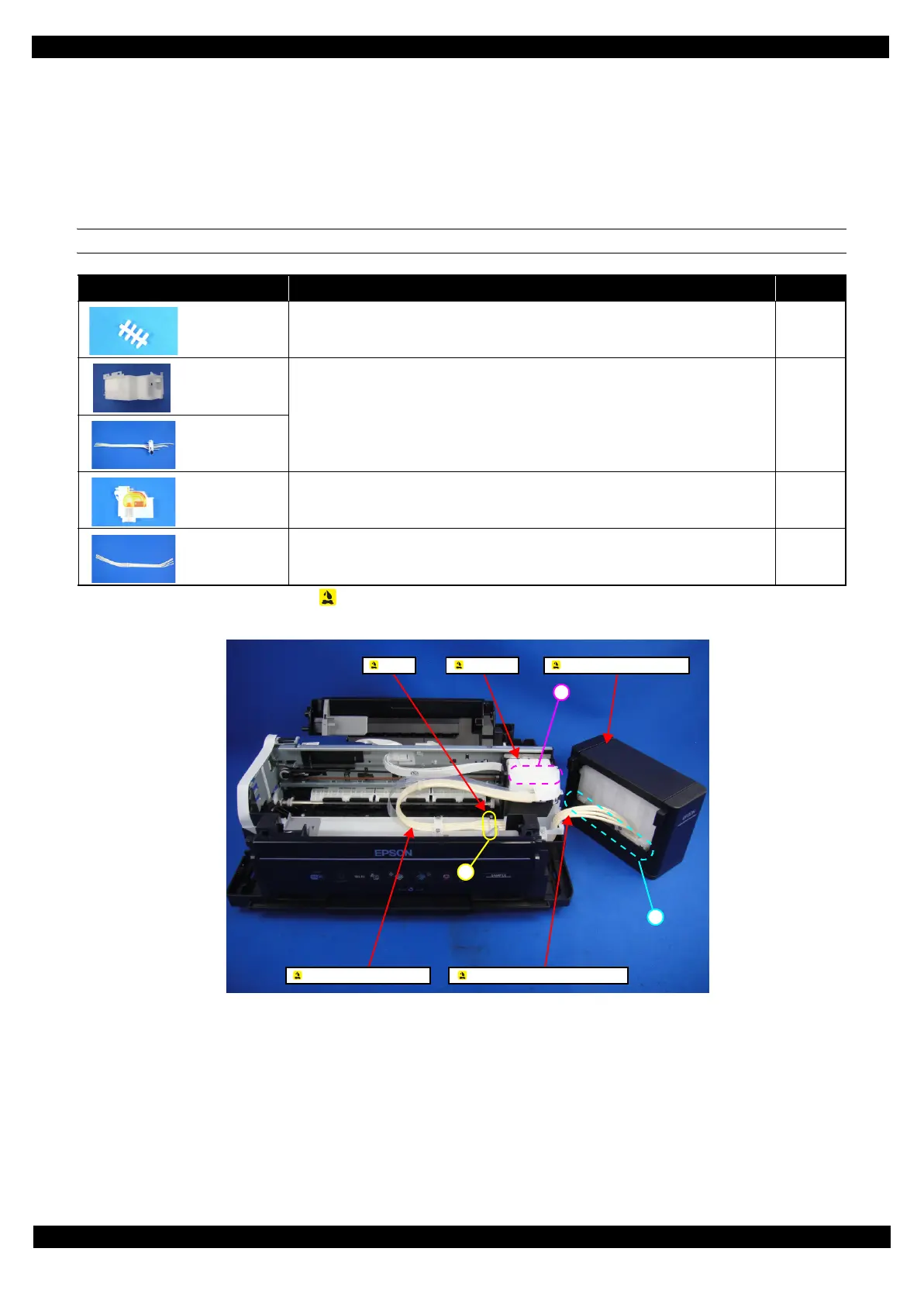

Figure 2-9. Location
Parts When ink may spill Location
Joint Removing the Ink Supply Tank Tube Assy / Ink Supply Tube Assy from the Joint A
Ink Supply
Tank
• Removing the tubes of the Ink Supply Tank Tube Assy from the Joint
• Removing the tubes of the Ink Supply Tank Tube Assy from the Ink Supply Tank
A, B
Ink Supply
Tank Tube Assy
Adapter Removing the Ink Supply Tube Assy from the Adapter C
Ink Supply
Tube Assy
• Removing the Ink Supply Tank Tube Assy / Ink Supply Tube Assy from the Joint
• Removing the Ink Supply Tube Assy from the Adapter
A, C
A
C
B
Joint Ink Supply Tank Assy
Ink Supply Tank Tube Assy Ink Supply Tube Assy
Adapter

Epson L130 Specifications

General

Print Technology	On-demand inkjet (Piezo electric)
Print Resolution	5760 x 1440 dpi
Connectivity	USB 2.0
Minimum Ink Droplet Size	3 pl
Output Tray Capacity	30 sheets
Ink Colors	Black, Cyan, Magenta, Yellow
Weight	2.7 kg
Print Speed	Black: 27 ppm, Color: 15 ppm
Paper Capacity	50 sheets
Ink Type	Dye Ink
Compatible Operating Systems	Windows XP/Vista/7/8/8.1/10, Mac OS X 10.6.8 or later
Paper Sizes	A4, A5, A6, B5, Letter
Ink Bottles	Cyan, Magenta, Yellow, Black
Print Method	On-demand inkjet (Piezoelectric)
