L365/L366,L360/L362,L310/L312,L220/L222,L130/L132 Series Revision A
Disassembly/Reassembly Detailed Disassembly/Reassembly Procedure for each Part/Unit 47
Confidential

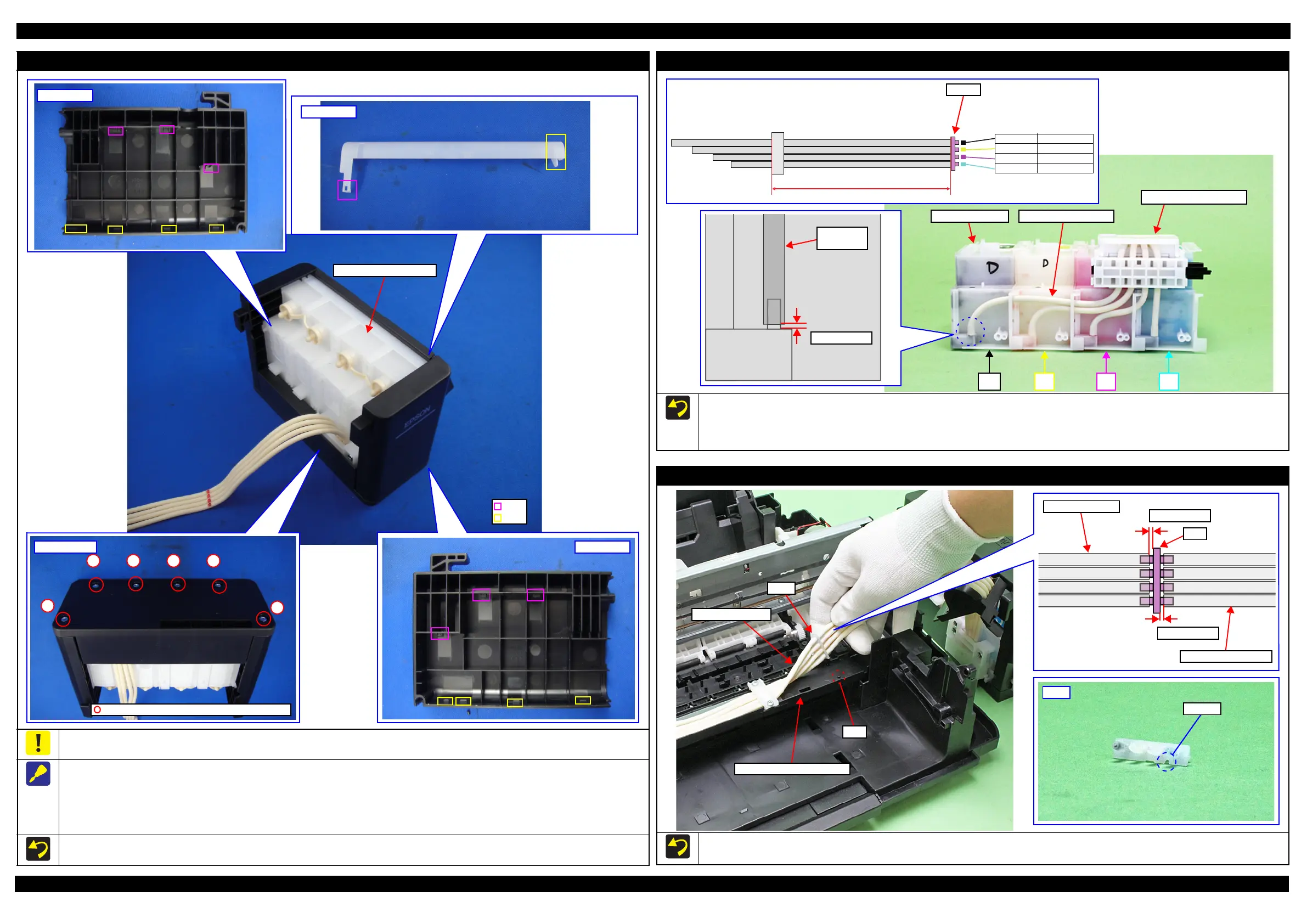

Bottom Cover / Left Cover / Right Cover / Cover Joint
Be careful about how to place the Ink Supply Tank Assy in order to prevent printing failure from occurring. (See
"2.1.5Checks and Precautions before
Disassembling (p25)"
.)
The figures above indicate the hooks and ribs that secure the parts.
Remove the exterior parts of the Ink Supply Tank Assy in the following order.
1. Remove the screws (x6) of the Bottom Cover, and remove the Bottom Cover.
2. Remove the Left Cover and Right Cover.
3. Remove the Cover Joint.
Tighten the screws in the order indicated in the figure above.
Ink Supply Tank Assy
Hook
Rib
Cover Joint
Left Cover
Bottom Cover
1
2
3 45 6
C.B.P-TITE SCREW 3x6 F/ZN-3C (4 ± 1
Right Cover
Ink Supply Tank Tube Assy
When connecting the Ink Supply Tank Tube to the Ink Supply Tank, confirm the color indicated on the film of the Ink Supply Tank, and take
care not to connect them with wrong joints.
When connecting the Ink Supply Tank Tube to the Ink Supply Tank, insert the tubes to the full and make sure the gaps between the end of tubes
and the tank are 0.5 mm long or less.
Yellow
Black
358 ± 1 mm
Cyan 311 ± 1 mm
387 ± 1 mm
Magenta 330 ± 1 mm
265 ± 1 mm
Joint
Cober/Guide Tube Tank
Ink Supply Tank Tube
CMBk Y
Ink Supply Tank
Ink Supply
Tank Tube
0.5 mm or less
Joint
When attaching the Joint, align the cutout of the Joint with the rib of the Ink Supply Tube Guide 2nd.
Make sure the gaps between the end of Ink Supply Tank Tubes or Ink Supply Tubes and the Joint are 0.5 mm long or less.
Joint
Rib
Ink Supply Tube
Ink Supply Tube Guide 2nd
0.5 mm or less
Ink Supply Tube
Ink Supply Tank Tube
Joint
0.5 mm or less
Joint
Cutout
