Epson L200 Service Manual

Confidential
Disassembly/Reassembly Overview 12
L200/L201/L100/L101 Revision A
1.1.3 Protection for Transportation
Before packing the printer for returning it to the user, secure it at the specified points with strong tape to avoid
damaging the printer or ink leakage during transport, and make sure to check the points as follows.
 Securing each parts
Secure the following parts with strong tape (width: 22 mm).

Securing the Carriage Assy
1. Cofirm that the Carriage Assy is locked in the home position.
2. Attach the unfolded end of strong tape (fold the other end back 5 mm) on the bottom left of the CR
Cover.
3. Pull the tape to the right side of the housing and attach it tightly.

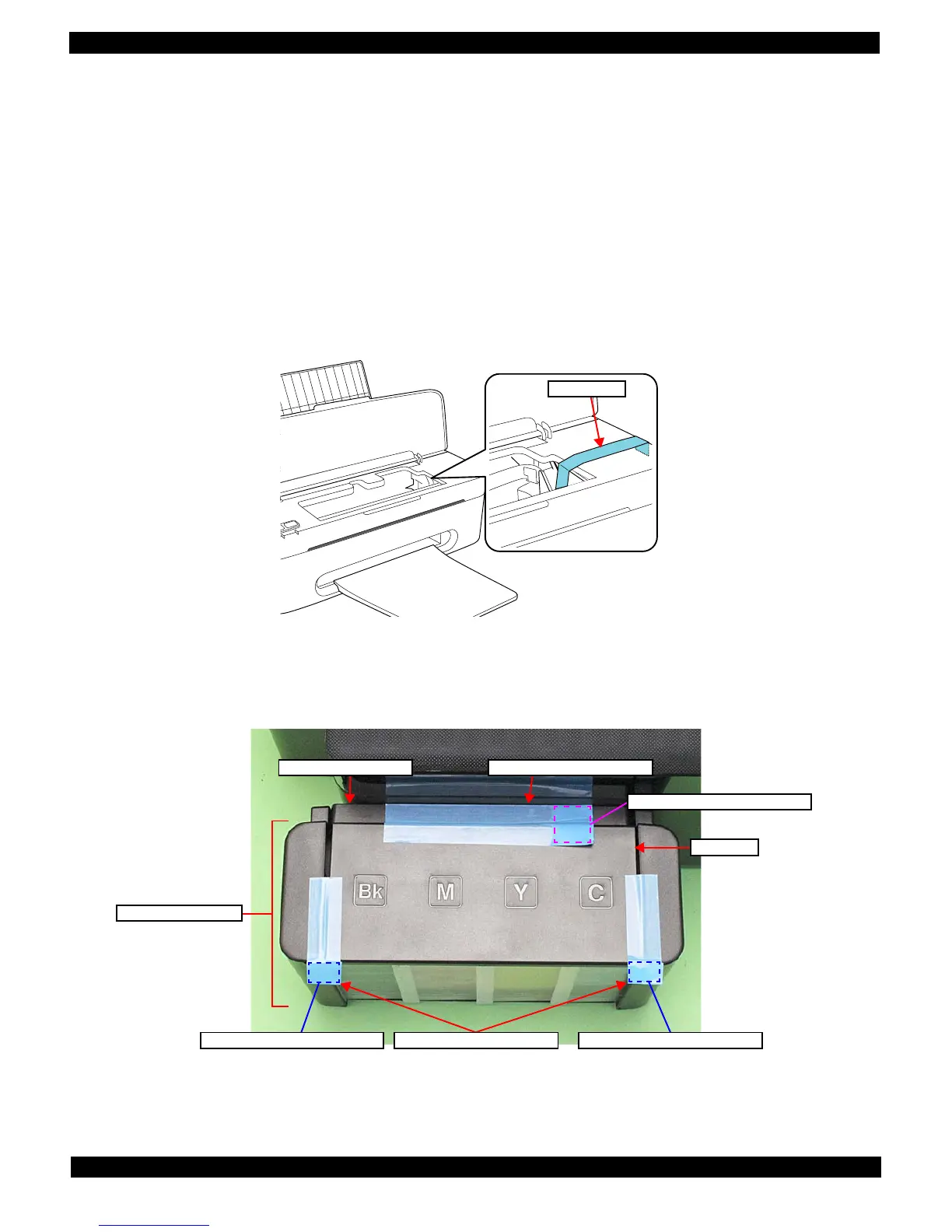

Figure 1-4. Securing the Carriage Assy

Securing the Ink Tank
• Secure both sides of the Top Cover with strong tape (x2).
• Secure the Ink Supply Tank Assy and Ink Supply Holder Assy with strong tape (x1).
Figure 1-5. Securing the Ink Supply Tank Assy
Strong tape
Top Cover
Ink Supply Tank Assy
Strong tape (22 mm x 55 mm)
Strong tape (22 mm x 105 mm)Ink Supply Holder Assy
Fold over the tape edge by 15 mm
Fold over the tape edge by 10 mm Fold over the tape edge by 10 mm

Epson L200 Specifications

General

Print Technology	On-demand inkjet (piezoelectric)
Print Resolution	5760 x 1440 dpi
Print Speed (Black)	27 ppm
Print Speed (Color)	15 ppm
Connectivity	USB 2.0
Paper Capacity	100 sheets
Scanner Type	Flatbed
Scanner Resolution	600 x 1200 dpi
Functions	Print, Scan, Copy
Paper Sizes	A4, A5, A6, B5, C6, DL
Ink Tank System	Yes
Ink Colors	Black, Cyan, Magenta, Yellow
Display	No
Ink Type	Dye Ink
Dimensions	472 x 300 x 145 mm
