Confidential
Appendix Connector Diagram 44
L200/L201/L100/L101 Revision A

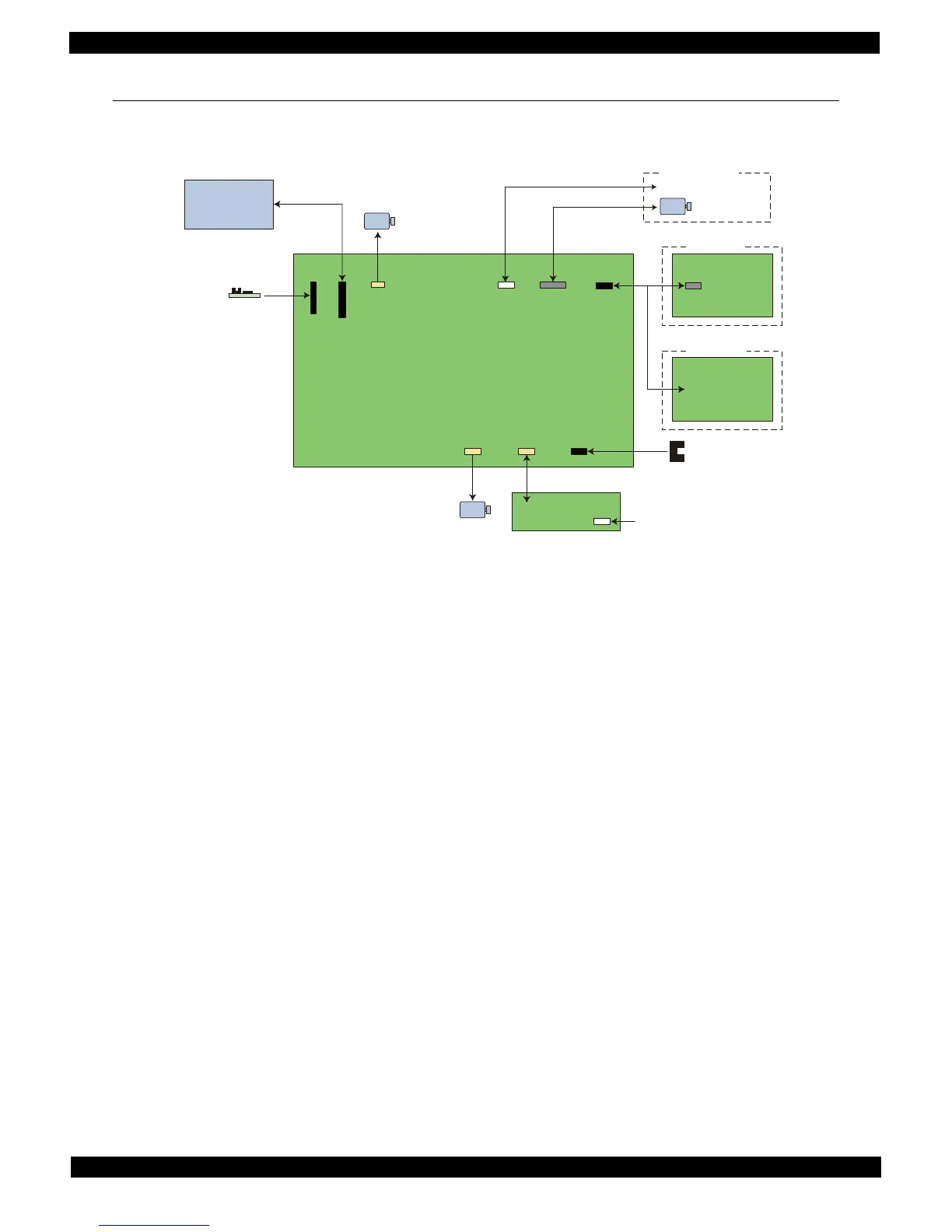

4.2 Connector Diagram
Cable connections of this printer are shown below.
Figure 4-1. Connector Diagram
PS Board
Panel Board
Panel Board
J301
J3 J2
J5
J8
J7 J11 J10
J9
J4
Scanner Unit
Panel Unit
CIS Module
J201
J201
PF Motor
Main Board
PF Encoder
Scanner Motor
Printhead
CR Encoder
CR Motor
AC in
Only L200/L201
Panel Unit
L100/L101
L200/L201
