5. When the ink stops flowing from the tube, close the choke valve, and then connect the Ink Supply Tube
back to the joint.
6. Disconnect the Ink Supply Tube of the same color connected to the opposite side of the joint.
7. Connect the tube from the injector.
8. Open the choke valve again, and suck up the remaining ink in the Ink Supply Tank into the injector.
9. Disconnect the tube from the injector, and connect the Ink Supply Tube of the same color back to the
joint.

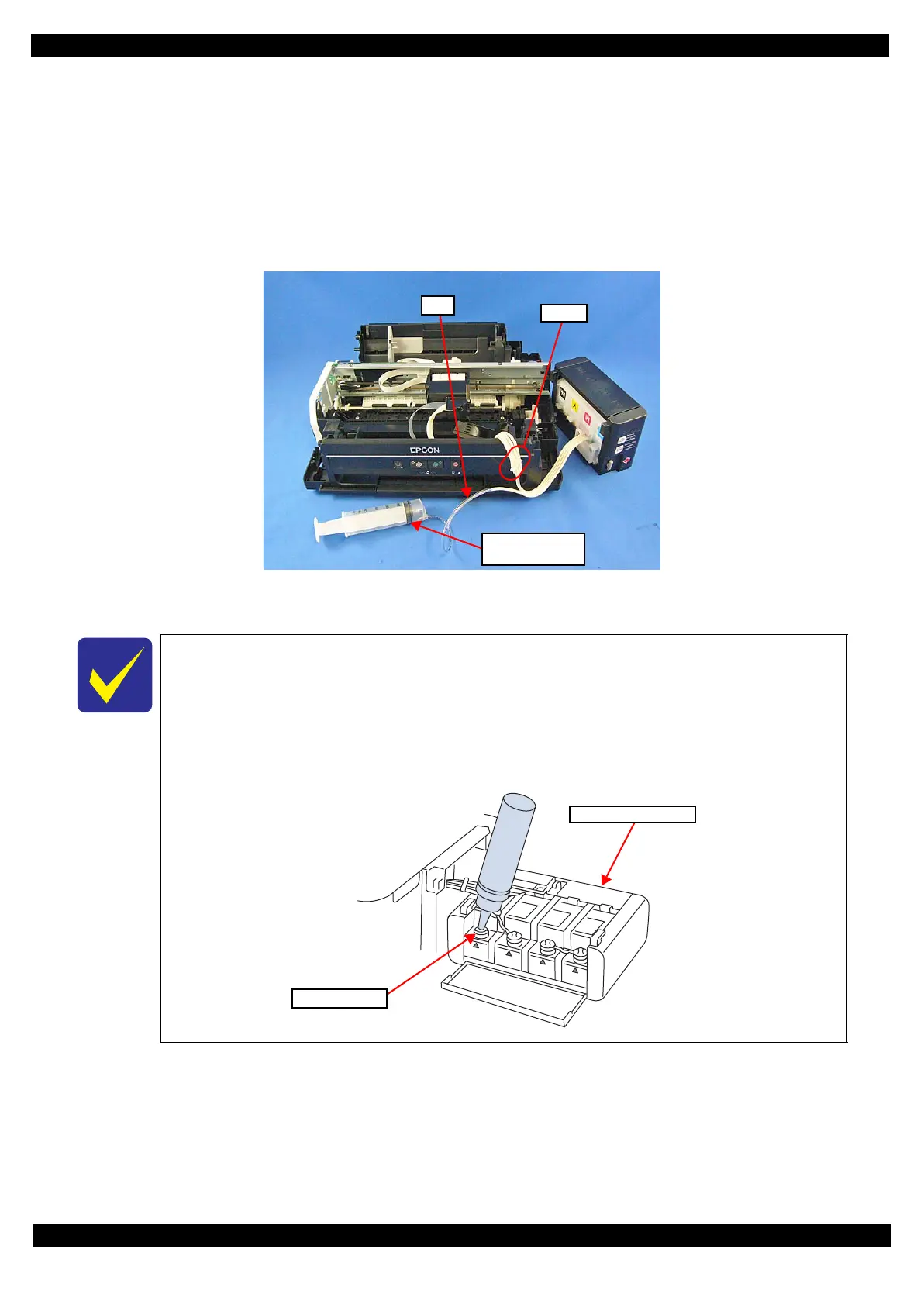

Figure 2-13. Discharging Ink (2)
10. Repeat Step 3 to Step 10 for all ink tanks to discharge all ink in the Ink Supply Tank.
 It is recommended that the ink in the Ink Supply Tank should be discharged completely
before proceeding to disassembling/reassembling.
 After all the reassembling work is complete, the discharged ink of each color should be
refilled back to the Ink Supply Tank before performing the adjustment. Confirm the
colors indicated on the film of the Ink Supply Tank so as not to mistake them, and make
sure to refill each ink back to the correct tank from the corresponding ink supply hole.
Injector
(tip of
φ 3.2 mm)
Tube
Joint
Ink supply hole
Ink Supply Tank Assy

Epson L355 Specifications

General

Printer Type	Inkjet
Print Method	On-demand inkjet (Piezo electric)
Functions	Print, Scan, Copy
Maximum Print Resolution	5760 x 1440 dpi
Print Speed (Black)	33 ppm
Print Speed (Color)	15 ppm
Scanner Type	Flatbed color image scanner
Scan Resolution	1200 x 2400 dpi
Connectivity	USB 2.0, Wi-Fi
Ink Type	Dye Ink
Ink Colors	Black, Cyan, Magenta, Yellow
Dimensions (W x D x H)	472 x 300 x 145 mm
Weight	4.4 kg
Paper Handling	100 sheets
Compatible Operating Systems	Mac OS
Copy Resolution	600 x 600 dpi
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Envelopes (DL, C6)
