Disassembly/Reassembly Overview 18
L350/L300/L355/L210/L110 Series Revision B
2.1.3 Locations of the Parts/Units
This section shows the locations of the main parts/units of this product.
 Exterior parts

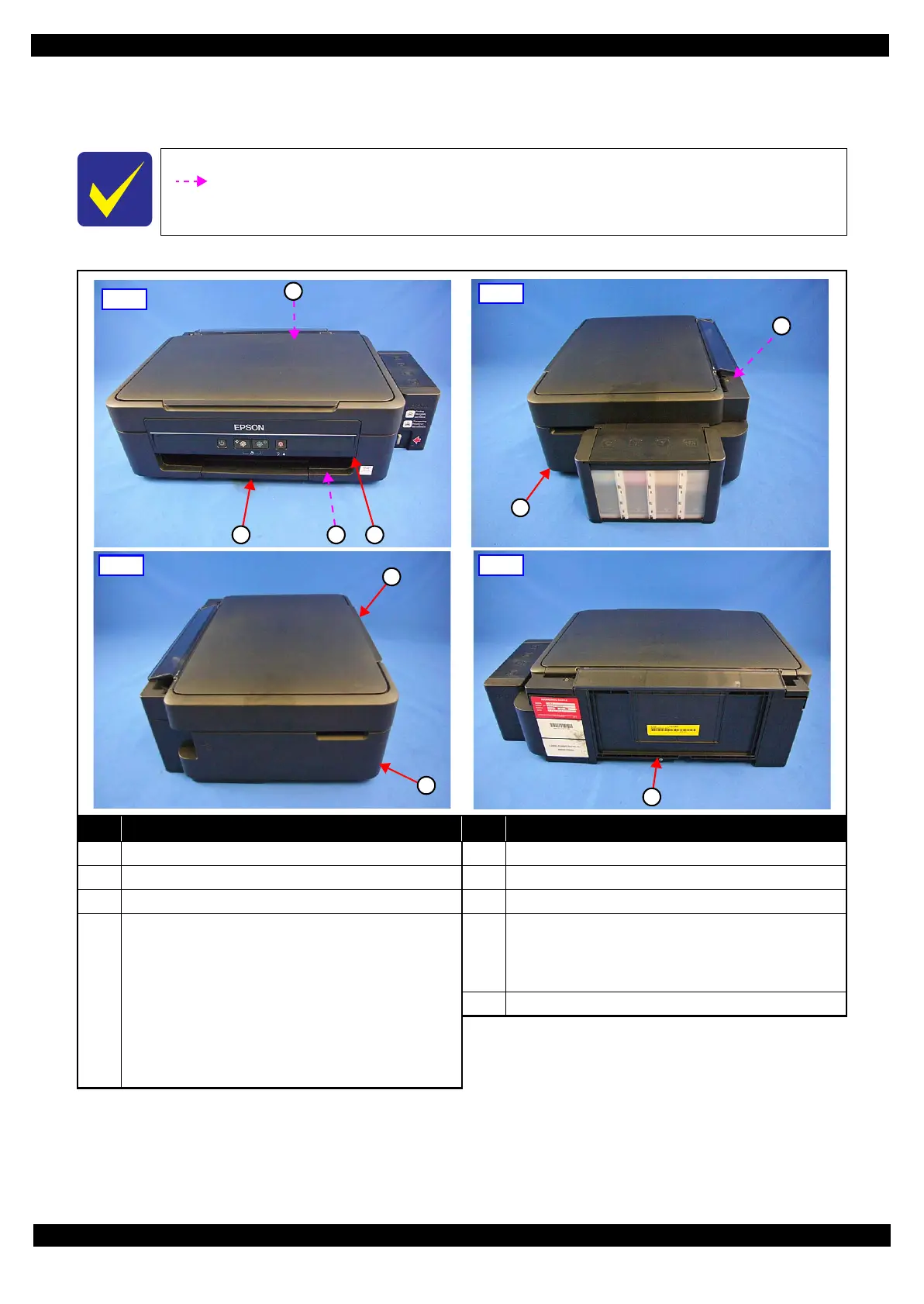

Figure 2-2. Exterior Parts
The parts/units which can not be seen in the following pictures are indicated in dotted lines
().
No. Name No. Name
1 Housing Rear (p32) (L350/L355/L210 Series only) 5 Hinge (p36) (L350/L355/L210 Series only)
2 Tray Front Assy (p32) 6 Housing Right (p36) (L350/L355/L210 Series only)
3 Frame Base Assy (p34) 7 Housing Left (p32) (L350/L355/L210 Series only)
4
Panel Unit
• L355 Series (p 34)
Panel Board Assy (p37) / Panel Buttons (p37) /
Panel Housing Upper Assy (p37) / Panel Housing
Lower Assy (p37)
• L350/L210 Series (p 34)
Panel Board Assy (p37) / Panel Buttons (p37) /
Panel Housing Upper Assy (p37) / Panel Housing
Lower Assy (p37)
8
Scanner Unit (p32) (L350/L355/L210 Series only)
Scanner Housing Upper (p36) / Scanner Carriage Unit
(p36) / Scanner Housing Lower (p36) / CIS Module
Unit (p36) / Scanner Motor (p36)
9 Paper Support Assy (p32)
1
2 3 4
Front
5
6
Right
9
Rear
8
7
Left

Epson L355 Specifications

General

Printer Type	Inkjet
Print Method	On-demand inkjet (Piezo electric)
Functions	Print, Scan, Copy
Maximum Print Resolution	5760 x 1440 dpi
Print Speed (Black)	33 ppm
Print Speed (Color)	15 ppm
Scanner Type	Flatbed color image scanner
Scan Resolution	1200 x 2400 dpi
Connectivity	USB 2.0, Wi-Fi
Ink Type	Dye Ink
Ink Colors	Black, Cyan, Magenta, Yellow
Dimensions (W x D x H)	472 x 300 x 145 mm
Weight	4.4 kg
Paper Handling	100 sheets
Compatible Operating Systems	Mac OS
Copy Resolution	600 x 600 dpi
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Envelopes (DL, C6)
