Epson L355 Service Manual

Confidential
Disassembly/Reassembly Overview 19
L350/L300/L355/L210/L110 Series Revision B
 Printer mechanism

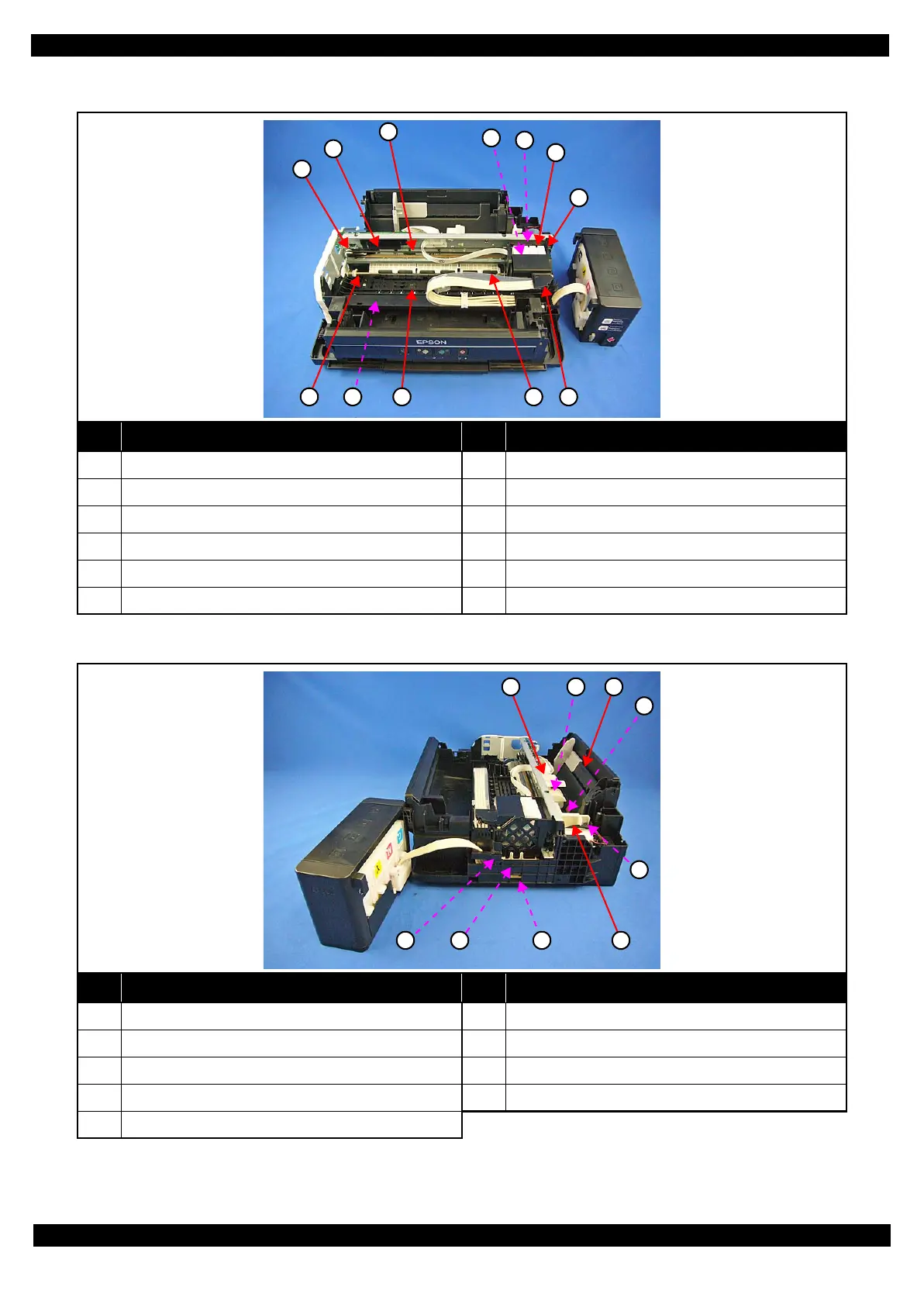

Figure 2-3. Printer Mechanism: Front
Figure 2-4. Printer Mechanism: Right
No. Name No. Name
1 CR Driven Pulley Assy (p34) 7 CR Unit (p38)
2 CR Scale (p34) 8 PF Roller Unit (p38)
3 CR Timing Belt (p38) 9 Star Wheel Holder Assy (p36)
4 Printhead (p32) 10 Paper Guide Front Unit (p32)
5 CR Encoder Sensor (p38) 11 Paper Guide Upper Assy (p38)
6 Adapter (p36) 12 Adapter Cover (p36)
No. Name No. Name
1 LD Roller Cover (p34) 6 Cap Lever (p36)
2 LD Roller Assy (p34) 7 Cap Assy (p36)
3 Hopper (p34) 8 Porous Pad for Cap Assy (p36)
4 Retard Roller Assy (p32) 9 Pump Unit (p38)
5 Paper Back Lever (p32)
1
2
3
5
8 11
7
10
4
9
6
12
6 7 8 9
5
4
31 2

Epson L355 Specifications

General

Printer Type	Inkjet
Print Method	On-demand inkjet (Piezo electric)
Functions	Print, Scan, Copy
Maximum Print Resolution	5760 x 1440 dpi
Print Speed (Black)	33 ppm
Print Speed (Color)	15 ppm
Scanner Type	Flatbed color image scanner
Scan Resolution	1200 x 2400 dpi
Connectivity	USB 2.0, Wi-Fi
Ink Type	Dye Ink
Ink Colors	Black, Cyan, Magenta, Yellow
Dimensions (W x D x H)	472 x 300 x 145 mm
Weight	4.4 kg
Paper Handling	100 sheets
Compatible Operating Systems	Mac OS
Copy Resolution	600 x 600 dpi
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Envelopes (DL, C6)
