Disassembly/Reassembly 38

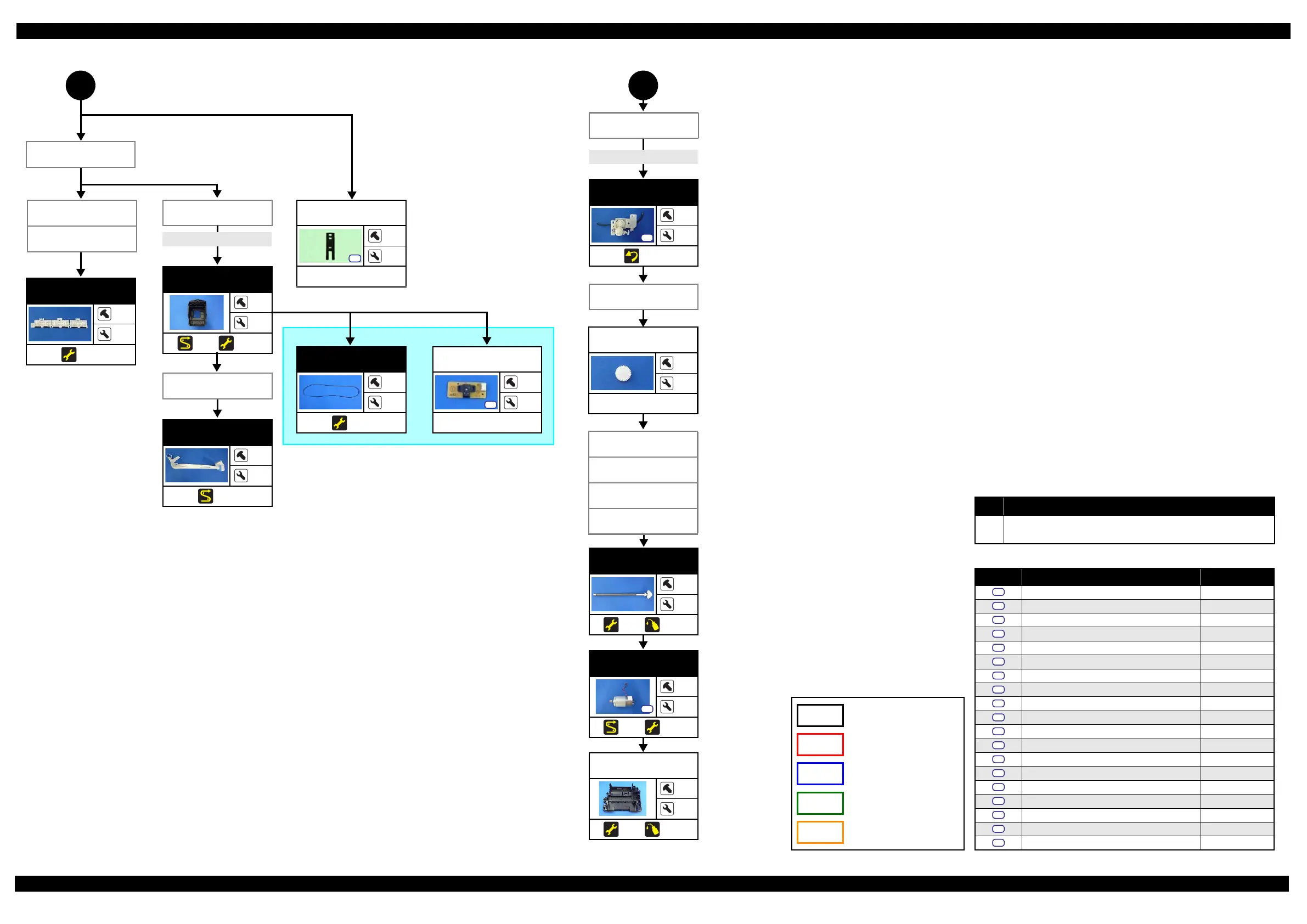

Flowchart 2-7. Disassembly Flowchart (7)
7 8
(p 34) (p 34)
Paper Guide
Upper Assy
---
6
(p 52)
Spur Gear 16.5
---
---
---
Main Board
(p34)
PE Sensor Lever
(p34)
Shield Plate
(p34)
CR Motor (p34)
CR Unit
---
---
(p 50) (p 52)
Head FFC
---
---
(p 50)
CR Timing Belt
---
1
(p 52)
CR Encoder
Sensor
1
1
---
S9
Pump Unit
1
1
(p 44)
S4
PF Roller Unit
---
---
(p 52) (p 64)
Frame Base
---
---
(p 52) (p 64)
PF Motor Assy
1
---
(p 51) (p 52)
S4
FFC/cable list
No. FFC/Cable
8
 Disconnect the CR Encoder FFC.
 Pull out the Head FFC from the hole of the CR Unit.
 FFC/Cable* 8
 Pump Tube
Cap Assy (p36)
Paper Guide
Front Unit (p32)
EJ Roller Gear
(p32)
PF Driven Pul-
ley Assy (p35)
PF Timing Belt
(p35)
Antistatic Cloth
1
---
---
S6
FFC Holder
(p32)
PF Grounding
Spring (p35)
L355 Series specific parts/unit
L350/L355/L210 Series specific
parts/unit
L300/L110 Series specific
parts/unit
L210/L110 Series specific
parts/unit
Common parts/unit
Screw type/torque list
Symbol Screw Type Torque
C.B.P-TITE SCREW 2.5x8 F/ZN-3C 3 ± 1 kgf·cm
C.B.P-TITE SCREW 2x8 F/ZN-3C 4 ± 1 kgf·cm
C.B.P-TITE SCREW 3x10 F/ZN-3C 5
± 1 kgf·cm
C.B.P-TITE SCREW 3x10 F/ZN-3C 6 ± 1 kgf·cm
C.B.S-TITE SCREW 3x6 F/ZN-3C 4
± 0.5 kgf·cm
C.B.S-TITE SCREW 3x6 F/ZN-3C 6 ± 1 kgf·cm
C.B.S-TITE SCREW 3x8 F/ZN-3C 6
± 1 kgf·cm
C.P SCREW 3x4 F/ZN-3C 4 ± 1 kgf·cm
C.P.F.B-TITE SCREW 2x8 F/ZN-3C 4
± 1 kgf·cm
C.P.S-TITE (P2) SCREW 3x6 F/ZN-3C 7 ± 1 kgf·cm
C.B.P-TITE SCREW 2.5x8 F/ZN-3C 5
± 0.5 kgf·cm
C.P SCREW 2.6x3 F/ZN-3C 4 ± 0.5 kgf·cm
C.B.S-TITE SCREW 3x4 F/ZN-3C 2
± 0.5 kgf·cm
C.B.P-TITE SCREW 2x8 F/ZN 2 ± 0.5 kgf·cm
C.B.P-TITE SCREW 2x8 F/ZN 25
± 0.5 kgf·cm
C.B.P-TITE SCREW 3x6 F/ZN 4 ± 1 kgf·cm
C.B.P-TITE SCREW 2.5x8 F/ZN 6
± 1 kgf·cm
C.B.P-TITE SCREW 2.6x5 F/ZN 3 ± 0.5 kgf·cm
C.B.P-TITE SCREW 3x6 F/ZN 3
± 0.5 kgf·cm
S1
S2
S3
S4
S5
S6
S7
S8
S9
S10
S11
S12
S13
S14
S15
S16
S17
S18
S19
