Epson L355 Service Manual

L350/L300/L355/L210/L110 Series Revision B
Confidential
Maintenance Lubrication Points and Instructions 66
4.2 Lubrication Points and Instructions

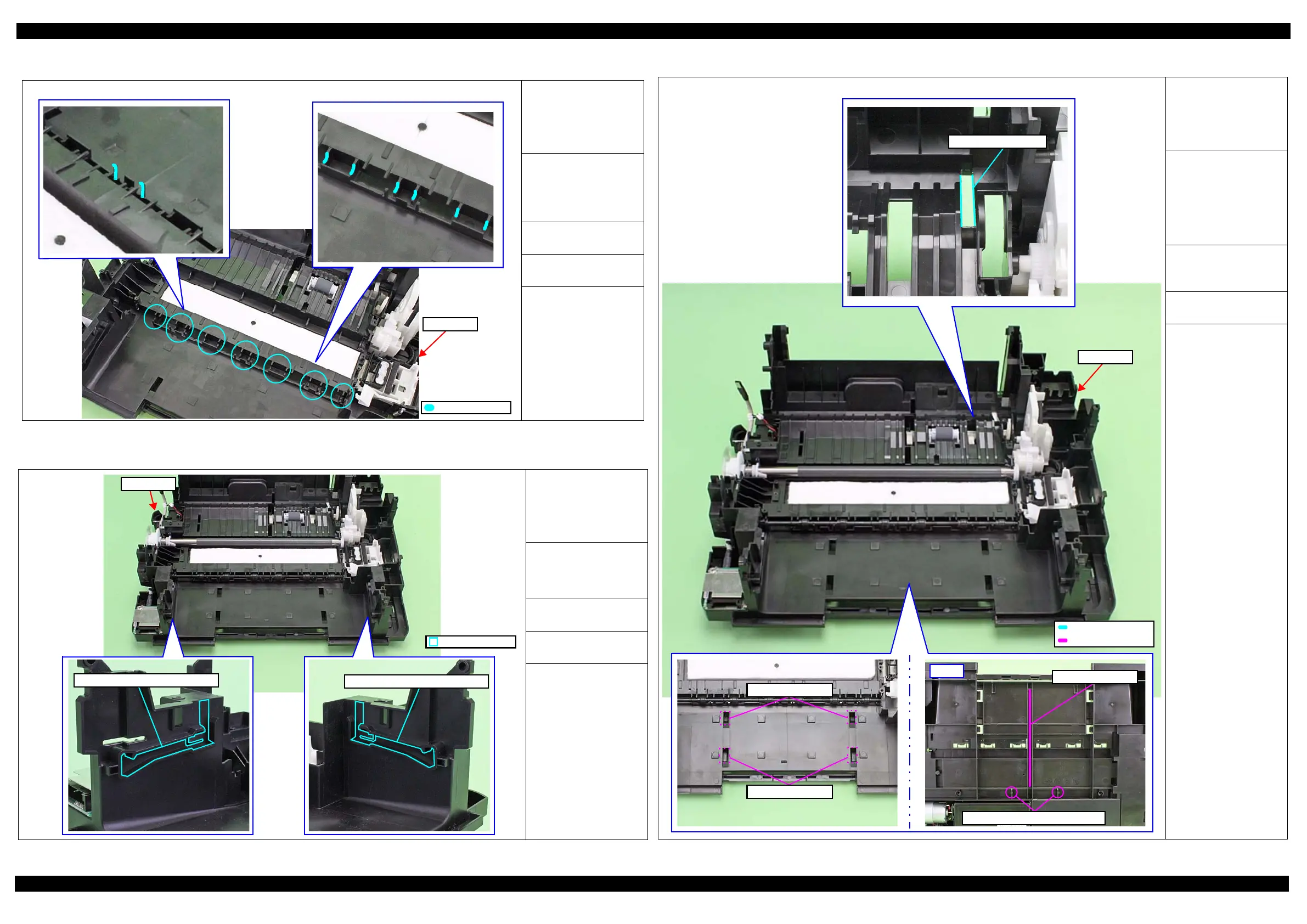

Figure 4-1. Lubrication of the Frame Base (1)
<Part supply as ASP>
None
<Lubrication status when
supplied as ASP>
---
<Lubrication Point>
Ribs (x12) and hooks (x6)
on the Frame Base
(Contact points of the EJ
Roller)
<Type>
G-74
<Application Amount>
Appropriate amount
<Remarks>
 Apply with flux
dispenser.
 Stir G-74 before use.
Frame Base
Application Point
Figure 4-2. Lubrication of the Frame Base (2)
<Part supply as ASP>
None
<Lubrication status when
supplied as ASP>
---
<Lubrication Point>
Contact points (x2) on the
Frame Base with the Panel
Assy
<Type>
G-74
<Application Amount>
Appropriate amount
<Remarks>
 Apply with flux
dispenser.
 Stir G-74 before use.
Apply grease inside the rail section.
Apply grease inside the rail section.
Application Point
Frame Base
Figure 4-3. Lubrication of the Frame Base (3)
<Part supply as ASP>
None
<Lubrication status when
supplied as ASP>
---
<Lubrication Point>
1.Contact points (x2) on
the Frame Base with the
Hopper
2. Contact points (x7) on
the Frame Base with the
Stacker Assy
<Type>
1. G-71
2. G-74
<Application Amount>
Appropriate amount
<Remarks>
 Apply with flux
dispenser.
 Stir G-74 before use.
Apply grease on ribs
Apply grease on ribs
Bottom
Apply grease on both sides of dowels
Apply grease on ribs
2. Application Point
1. Application Point
Frame Base
Apply grease on sides.

Epson L355 Specifications

General

Printer Type	Inkjet
Print Method	On-demand inkjet (Piezo electric)
Functions	Print, Scan, Copy
Maximum Print Resolution	5760 x 1440 dpi
Print Speed (Black)	33 ppm
Print Speed (Color)	15 ppm
Scanner Type	Flatbed color image scanner
Scan Resolution	1200 x 2400 dpi
Connectivity	USB 2.0, Wi-Fi
Ink Type	Dye Ink
Ink Colors	Black, Cyan, Magenta, Yellow
Dimensions (W x D x H)	472 x 300 x 145 mm
Weight	4.4 kg
Paper Handling	100 sheets
Compatible Operating Systems	Mac OS
Copy Resolution	600 x 600 dpi
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Envelopes (DL, C6)
