Epson L355 Service Manual

L350/L300/L355/L210/L110 Series Revision B
Confidential
Maintenance Lubrication Points and Instructions 67

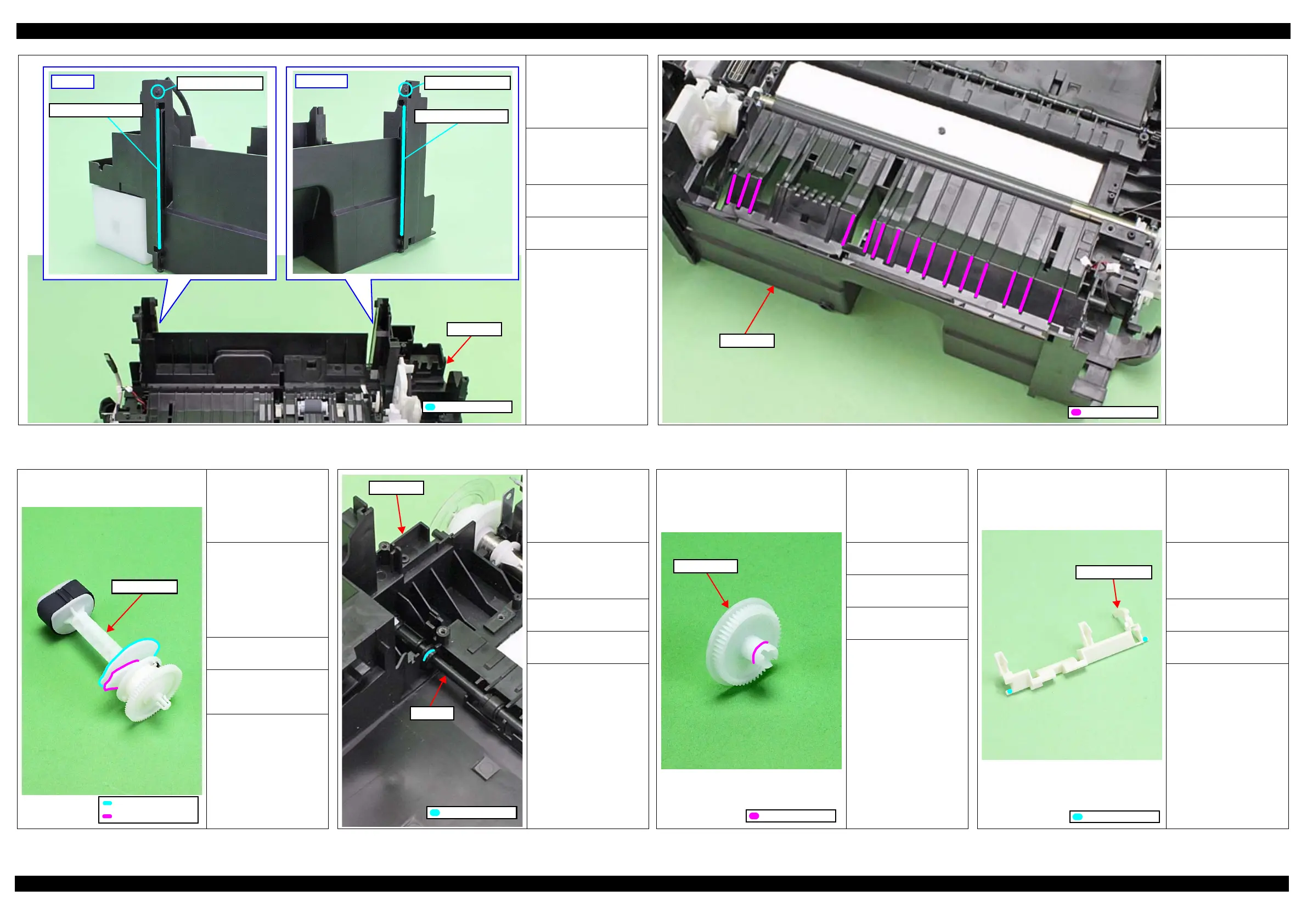

Figure 4-4. Lubrication of the Frame Base (4)
<Part supply as ASP>
None
<Lubrication status when
supplied as ASP>
---
<Lubrication Point>
Contact points (x4) on the
Frame Base with the Paper
Support Assy
<Type>
G-74
<Application Amount>
Appropriate amount
<Remarks>
 Apply with flux
dispenser.
 Stir G-74 before use.
Frame Base
Rear left
Apply inside the groove
Apply grease on rib
Rear right
Apply inside the groove
Apply grease on rib
Application Point
Figure 4-5. Lubrication of the Frame Base (5)
<Part supply as ASP>
None
<Lubrication status when
supplied as ASP>
---
<Lubrication Point>
Contact points (x15 on the
ribs) on the Frame Base
with the Hopper
<Type>
G-74
<Application Amount>
Appropriate amount
<Remarks>
 Apply with flux
dispenser.
 Stir G-74 before use.
Application Point
Frame Base
Figure 4-6. Lubrication of the LD Roller Assy Figure 4-7. Lubrication of the EJ Roller
<Part supply as ASP>
Yes
<Lubrication status when
supplied as ASP>
Not lubricated
<Lubrication Point>
1. Cam of the LD Roller
Assy (contact point with
the Hopper)
2. Cam of the LD Roller
Assy (contact point with
the Paper Back Lever)
<Type>
G-71
<Application Amount>
Circumference of each
cam (0.05 g each)
<Remarks>
 Apply with injector.
 Lubricate before
attaching the part.
LD Roller Assy
2. Application Point
1. Application Point
<Part supply as ASP>
Yes
<Lubrication status when
supplied as ASP>
Not lubricated
<Lubrication Point>
Contact point (x1 on the
shaft) on the EJ Roller with
the Frame Base
<Type>
G-71
<Application Amount>
0.06 g
<Remarks>
 Apply with injector.
 Lubricate before
attaching the part.
EJ Roller
Application Point
Frame Base
Figure 4-8. Lubrication of the EJ Roller Gear
Figure 4-9. Lubrication of the Paper Back Lever
<Part supply as ASP>
Yes
<Lubrication status when
supplied as ASP>
Not lubricated
<Lubrication Point>
Shaft on the EJ Roller Gear
<Type>
G-71
<Application Amount>
φ 1 mm x 1 circle
<Remarks>
 Using injector, apply
grease along the tier on
the shaft.
 Lubricate before
attaching the part.
EJ Roller Gear
Application Point
<Part supply as ASP>
Yes
<Lubrication status when
supplied as ASP>
Not lubricated
<Lubrication Point>
Contact points (x2) on the
Paper Back Lever with the
Frame Base
<Type>
G-71
<Application Amount>
0.06 g x 2 points
<Remarks>
 Apply with injector.
 Lubricate before
attaching the part.
Paper Back Lever
Application Point

Epson L355 Specifications

General

Printer Type	Inkjet
Print Method	On-demand inkjet (Piezo electric)
Functions	Print, Scan, Copy
Maximum Print Resolution	5760 x 1440 dpi
Print Speed (Black)	33 ppm
Print Speed (Color)	15 ppm
Scanner Type	Flatbed color image scanner
Scan Resolution	1200 x 2400 dpi
Connectivity	USB 2.0, Wi-Fi
Ink Type	Dye Ink
Ink Colors	Black, Cyan, Magenta, Yellow
Dimensions (W x D x H)	472 x 300 x 145 mm
Weight	4.4 kg
Paper Handling	100 sheets
Compatible Operating Systems	Mac OS
Copy Resolution	600 x 600 dpi
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Envelopes (DL, C6)
