Epson L355 Service Manual

L350/L300/L355/L210/L110 Series Revision B
Confidential
Maintenance Lubrication Points and Instructions 70

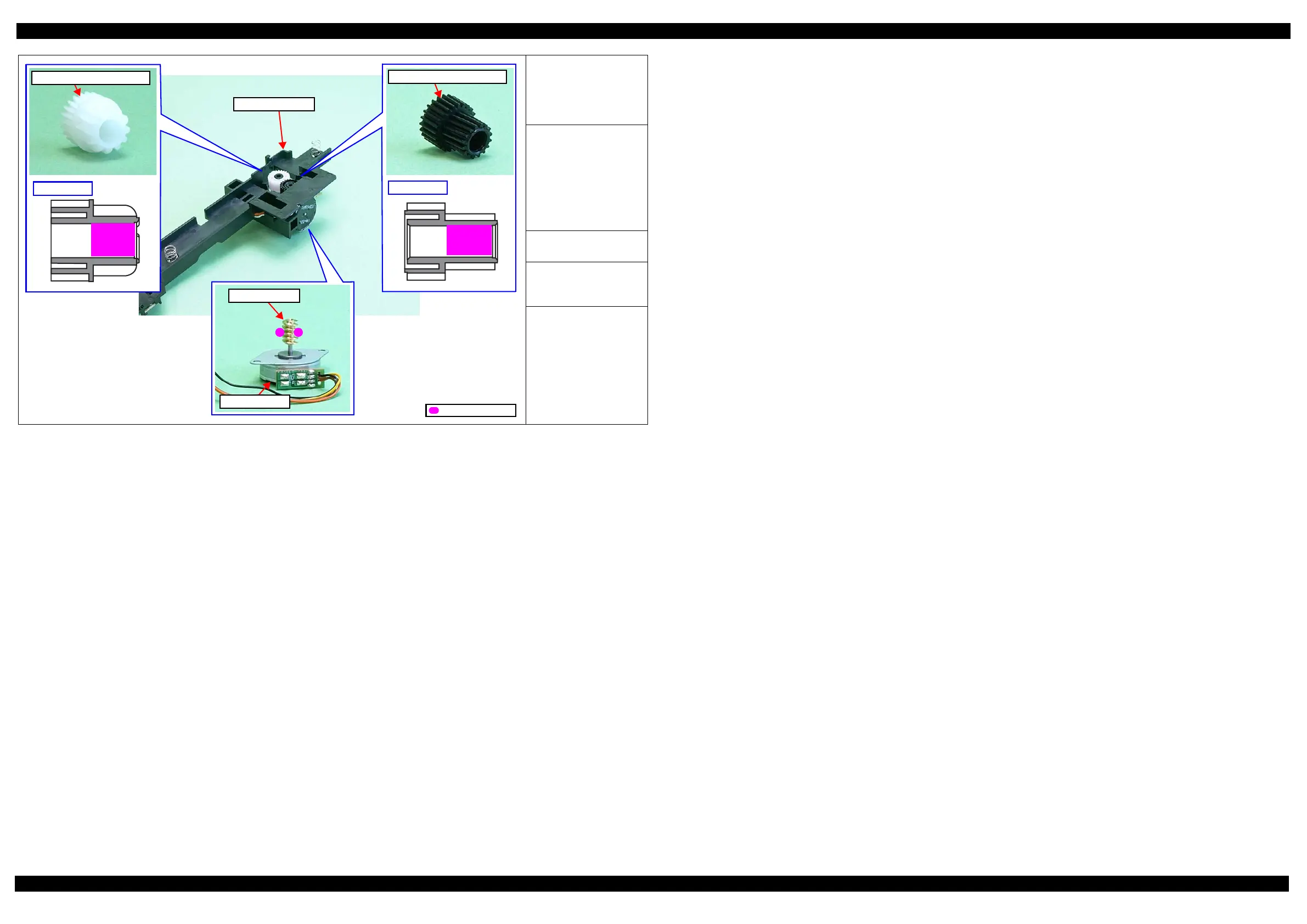

Figure 4-18. Lubrication of Scanner Motor, Combination Gear 14.4,10.8 and Combination Gear 13.8,9.66
<Part supply as ASP>
Supplied as the Scanner Unit
<Lubrication status when
supplied as ASP>
Lubricated
<Lubrication Point>
1. Gear sections (x2) on the
Pinion Gear of the
Scanner Motor
2. Shaft hole of the
Combination Gear 14.4.10.8
3. Shaft hole of the
Combination Gear 13.8.9.66
<Type>
G-45
<Application Amount>
1. 0.01 g x 2 points
2.3. 0.01 g
<Remarks>
1. Apply with injector.
2.3.
After applying with
injector, spread it over
the entire inner surface
the shaft hole shown in
the figure.
 Be careful not to let
grease flow over.
Scanner Motor
Pinion Gear
Scanner Carriage
Cross-section
Cross-section
Combination gear 14.4,10.8
Combination gear 13.8,9.66
Application Point
