Epson L360 Service Manual

Confidential
Disassembly/Reassembly Overview 20
L365/L366,L360/L362,L310/L312,L220/L222,L130/L132 Series Revision A

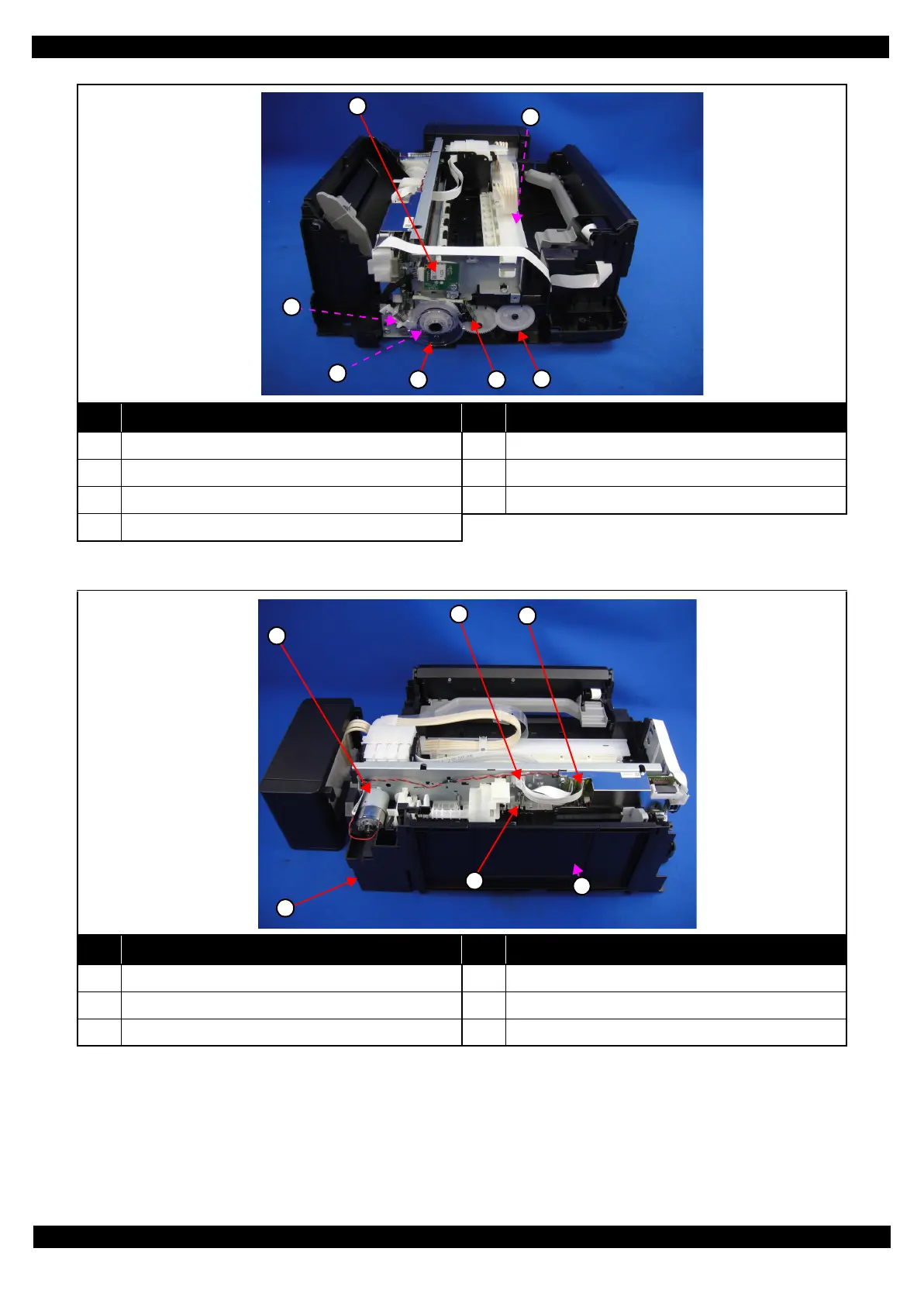

Figure 2-5. Printer Mechanism: Left
Figure 2-6. Printer Mechanism: Rear
No. Name No. Name
1 Wireless LAN Module (p33) (L365/L366 Series only) 5 PF Scale (p36)
2 EJ Roller (p37) 6 PF Encoder Sensor (p36)
3 PF Motor Assy (p39) 7 EJ Roller Gear (p33)
4 PF Timing Belt (p36)
No. Name No. Name
1 CR Motor (p35) 4 Waste Ink Pad Assy (p33)
2 Head FFC (p39) 5 PE Sensor Lever (p35)
3 Main Board (p35) 6 PS Unit (p33)
3
1
2
7
4
5 6
1
2
4
5
6
3

Epson L360 Specifications

General

Print Technology	Inkjet
Print Resolution	5760 x 1440 dpi
Scanner Resolution	600 x 1200 dpi
Copy Function	Yes
Connectivity	USB 2.0
Weight	4.4 kg
Ink Colors	Black, Cyan, Magenta, Yellow
Scanner Type	Flatbed
Print Speed (Black)	Approx. 33 ppm
Print Speed (Color)	Approx. 15 ppm
Paper Tray Capacity	100 sheets
Paper Sizes	A4, A5, A6, B5, C6, DL
Operating System Support	Windows XP/Vista/7/8/8.1
