Epson L360 Service Manual

Confidential
Disassembly/Reassembly Overview 21
L365/L366,L360/L362,L310/L312,L220/L222,L130/L132 Series Revision A
 Ink Supply Tank Assy

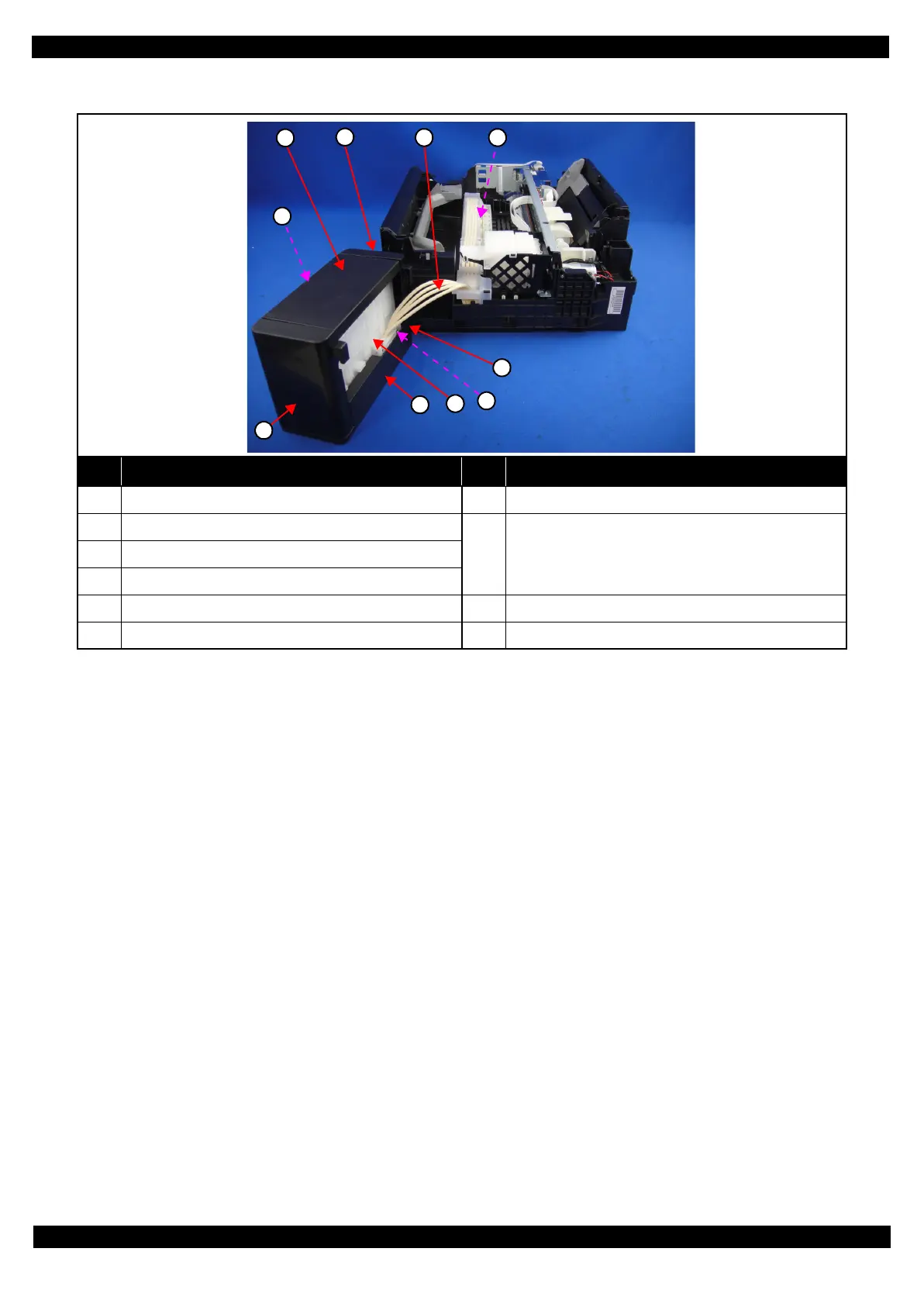

Figure 2-7. Ink Supply Tank Assy
No. Name No. Name
1 Cover Joint (p36) 7 Guide Tube Tank (p36)
2 Top Cover (p36)
8
Ink Supply Tank
Ink Supply Tank (Cyan) (p36)/Ink Supply Tank
(Magenta) (p36)/Ink Supply Tank (Yellow) (p36)/Ink
Supply Tank (Black) (p36)
3 Right Cover (p36)
4 Ink Supply Tank Tube Assy (p36)
5 Ink Supply Tube Assy (p37) 9 Bottom Cover (p36)
6 Cover Tube Tank (p36) 10 Left Cover (p36)
7
6
4
2
3
8
9
10
1
5

Epson L360 Specifications

General

Print Technology	Inkjet
Print Resolution	5760 x 1440 dpi
Scanner Resolution	600 x 1200 dpi
Copy Function	Yes
Connectivity	USB 2.0
Weight	4.4 kg
Ink Colors	Black, Cyan, Magenta, Yellow
Scanner Type	Flatbed
Print Speed (Black)	Approx. 33 ppm
Print Speed (Color)	Approx. 15 ppm
Paper Tray Capacity	100 sheets
Paper Sizes	A4, A5, A6, B5, C6, DL
Operating System Support	Windows XP/Vista/7/8/8.1
