Confidential
Disassembly/Reassembly Overview 28
L365/L366,L360/L362,L310/L312,L220/L222,L130/L132 Series
Revision A
DISCHRGING INK FROM THE INK SUPPLY TANK
Discharging ink is recommended only when disconnecting the Ink Supply Tank Tube Assy from the Ink Supply
Tank. Before performing the above disconnection, discharge ink from the Ink Supply Tank as follows.
Necessary tools
•
Containers (x 4) for each discharged ink
•
Injector (with a tip of
φ
3.2 mm)
•
Clips (x 2)
•
Cotton swab (x 4)
Discharging preparation
1. Remove the screw (x 3) of the Guide Tube 1st and the Tube Pressing Plate .
2. Release the hook of the Guide Tube Sub , Release the Guide Tube from Dowel .
3. Release the Ink Supply Tube from rib, and release the Guide Tube 1st from the Frame Base Assy.

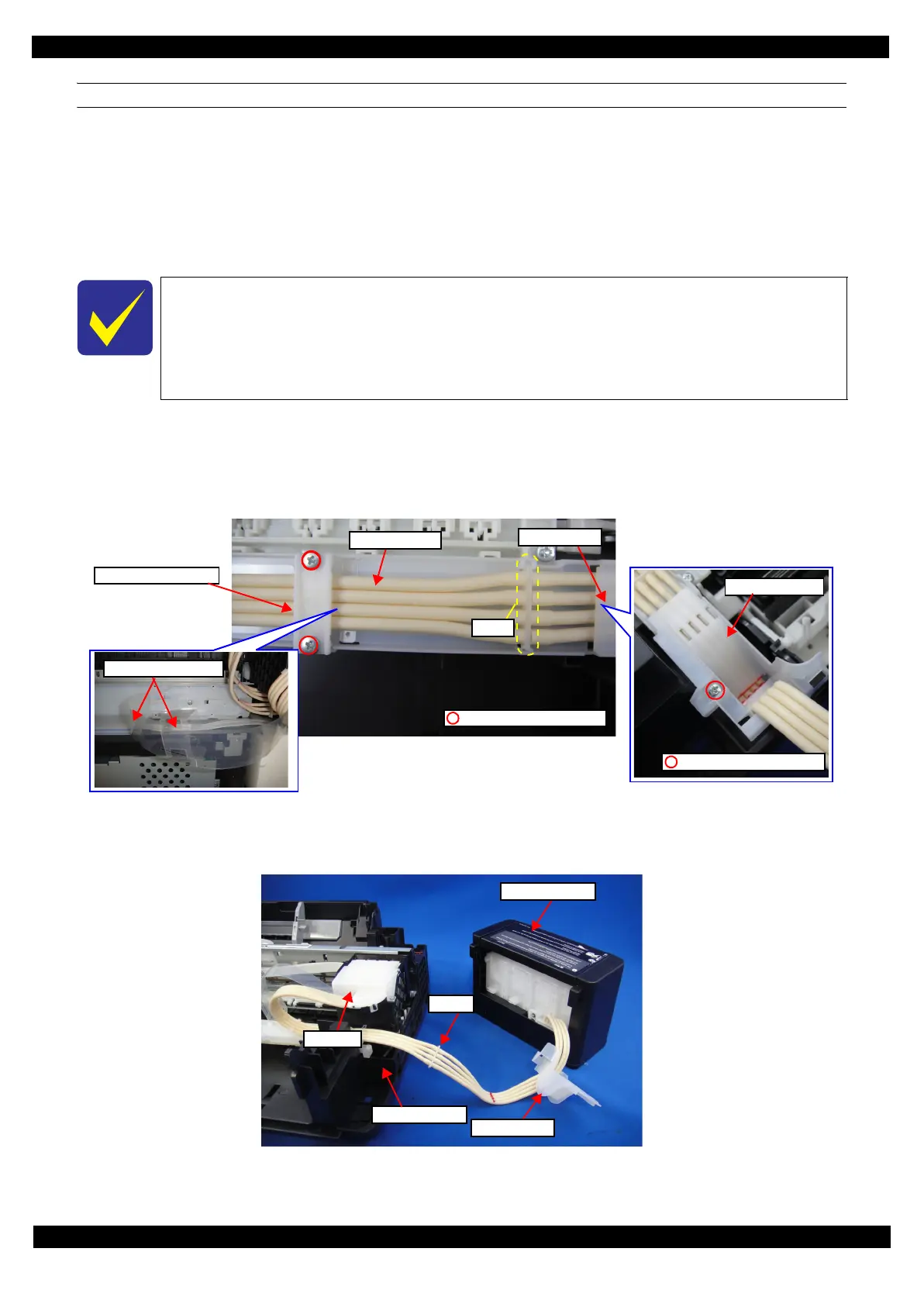

Figure 2-11. Discharging preparation (1)
4. Move the Carriage to right side .
5. Release the Joint from the rib of Guide Tube 1st .
Figure 2-12. Discharging preparation (2)
When disconnecting the Ink Supply Tube/Ink Supply TankTube from the Joint, ink may
leak from the ink tube. Preparea container to receive the leaking ink to prevent the
productfrom getting contaminated by the leaked ink .
Prior to the following steps, connect the injector with the tube, and then discharge ink
according to the procedure.
C.B.P. 3x10 (6.1±1 Kgfcm)
Rib
Tube Pressing Plate
Guide Tube 1st
Ink Supply Tube
Guide Tube ＆ Sub
Guide Tube 1st
C.B.P. 3x10 (6.1±1 Kgfcm)
Ink SupplyTank
Carriage
Guife Tube 1st
Joint
Frame Base Assy
To Next Page
