Confidential
Disassembly/Reassembly Overview 29
L365/L366,L360/L362,L310/L312,L220/L222,L130/L132 Series
Revision A
Discharging procedure
1. Release the Ink Supply Tank Assy.(
Refer to
Cotton swab (x 4) (p.28))
2. Place the Ink Supply Tank Assy on a place where its bottom is higher than the top of the Printhead.
3. To minimize the ink leakage from the Ink Supply Tube / Ink Supply Tank Tube , pinch the Ink Supply
Tube / Ink Supply Tank Tube with clips (x 2) .

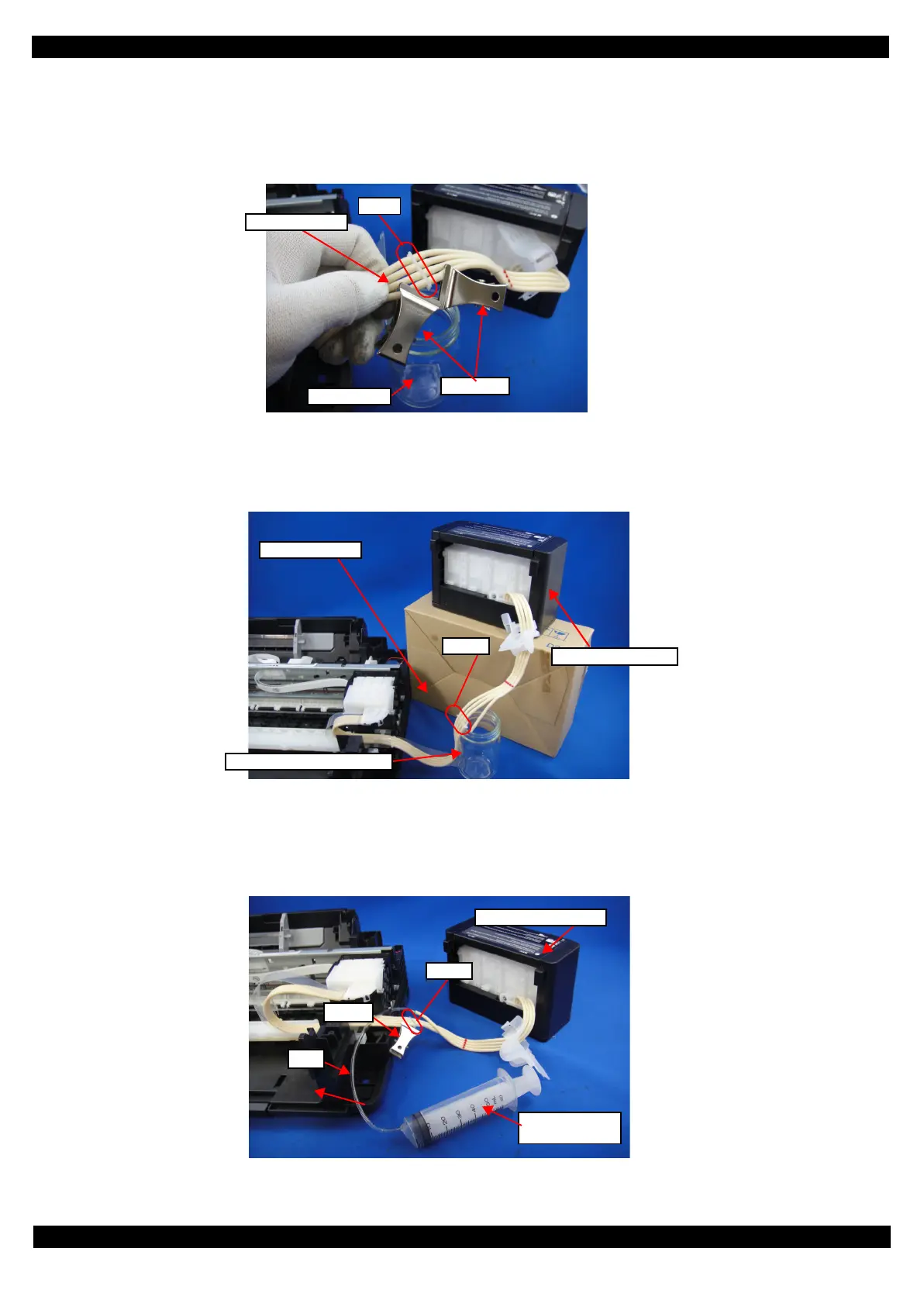

Figure 2-13. Discharging Ink (1)
4. Prepare a container for ink to discharge, then disconnect the Ink Supply Tube from the joint and put its
tip into the container for the ink.
5. To discharge the ink in the Ink Supply Tank Assy to the container.
Figure 2-14. Discharging Ink (2)
6. Move the clips (x2) so that only the ink to discharge can flow in the Ink Supply Tank Tube .
7. The ink in the Ink Supply Tank is discharged into the container through the Ink Supply Tank Tube.
8. Repeat step 4 to Step 7 for all ink tanks to discharge all ink in the Ink Supply Tank .
Figure 2-15. Discharging Ink (3)
Clip (x 2)
Ink Supply Tube
Container
Joint
Ink Supply Tank Assy
Ink Supply Tube
Container for discharged ink
Joint
Injector
(tip of
φ
3.2 mm)
Tube
Joint
Ink Supply Tank Tube
Clip
To Next Page
