Disassembly/Reassembly Overview 30
L365/L366,L360/L362,L310/L312,L220/L222,L130/L132 Series Revision A
 It is recommended that the ink in the Ink Supply Tank should be discharged completely before
proceeding to disassembling/reassembling.

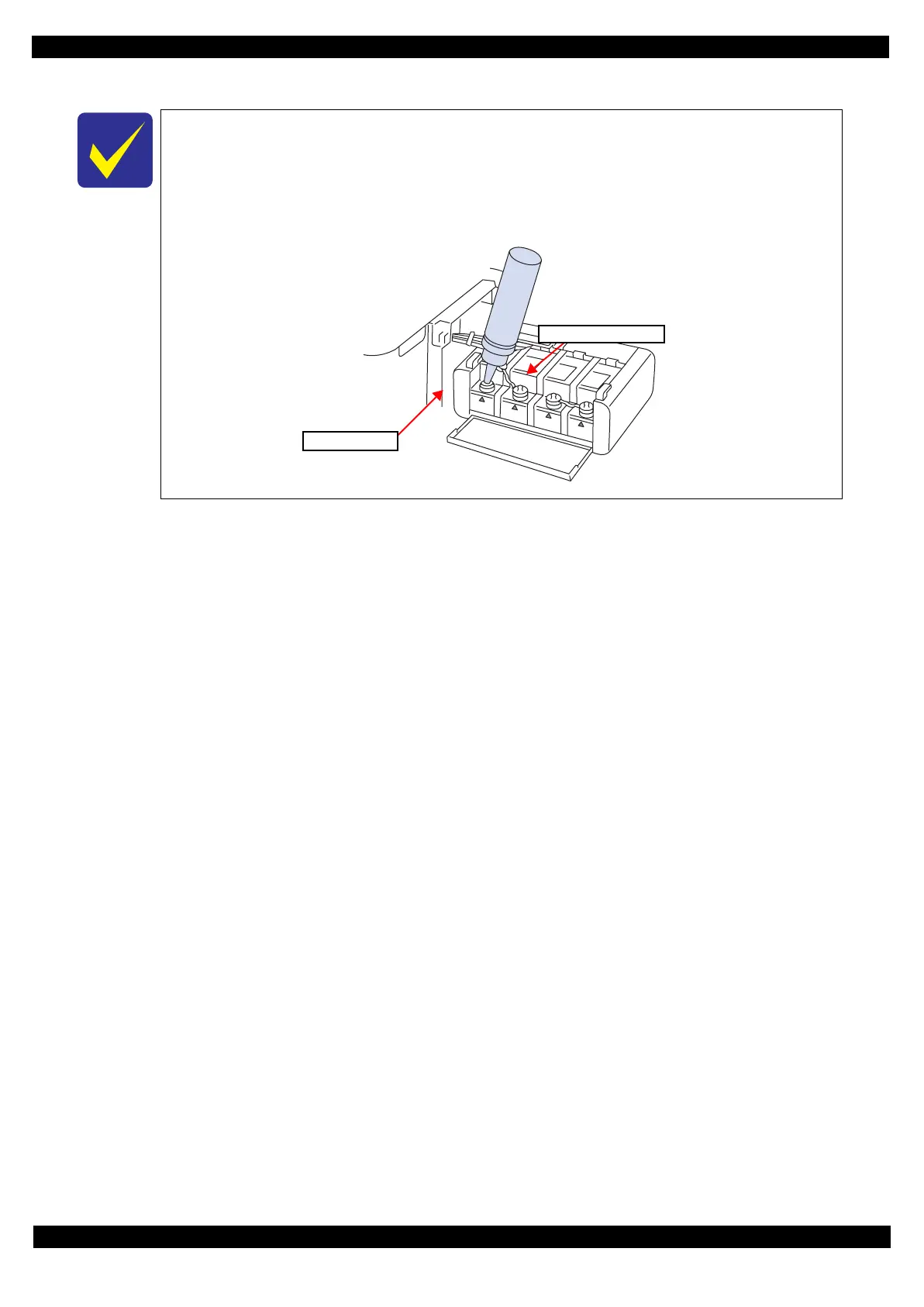

 After all the reassembling work is complete, the discharged ink of each color should be refilled
back to the Ink Supply Tank before performing the adjustment. Confirm the colors indicated on
the film of the Ink Supply Tank so as not to mistake them, and make sure to refill each ink back to
the correct tank from the corresponding ink supply hole.
Ink supply hole
Ink Supply Tank Assy

Epson L360 Specifications

General

Print Technology	Inkjet
Print Resolution	5760 x 1440 dpi
Scanner Resolution	600 x 1200 dpi
Copy Function	Yes
Connectivity	USB 2.0
Weight	4.4 kg
Ink Colors	Black, Cyan, Magenta, Yellow
Scanner Type	Flatbed
Print Speed (Black)	Approx. 33 ppm
Print Speed (Color)	Approx. 15 ppm
Paper Tray Capacity	100 sheets
Paper Sizes	A4, A5, A6, B5, C6, DL
Operating System Support	Windows XP/Vista/7/8/8.1
