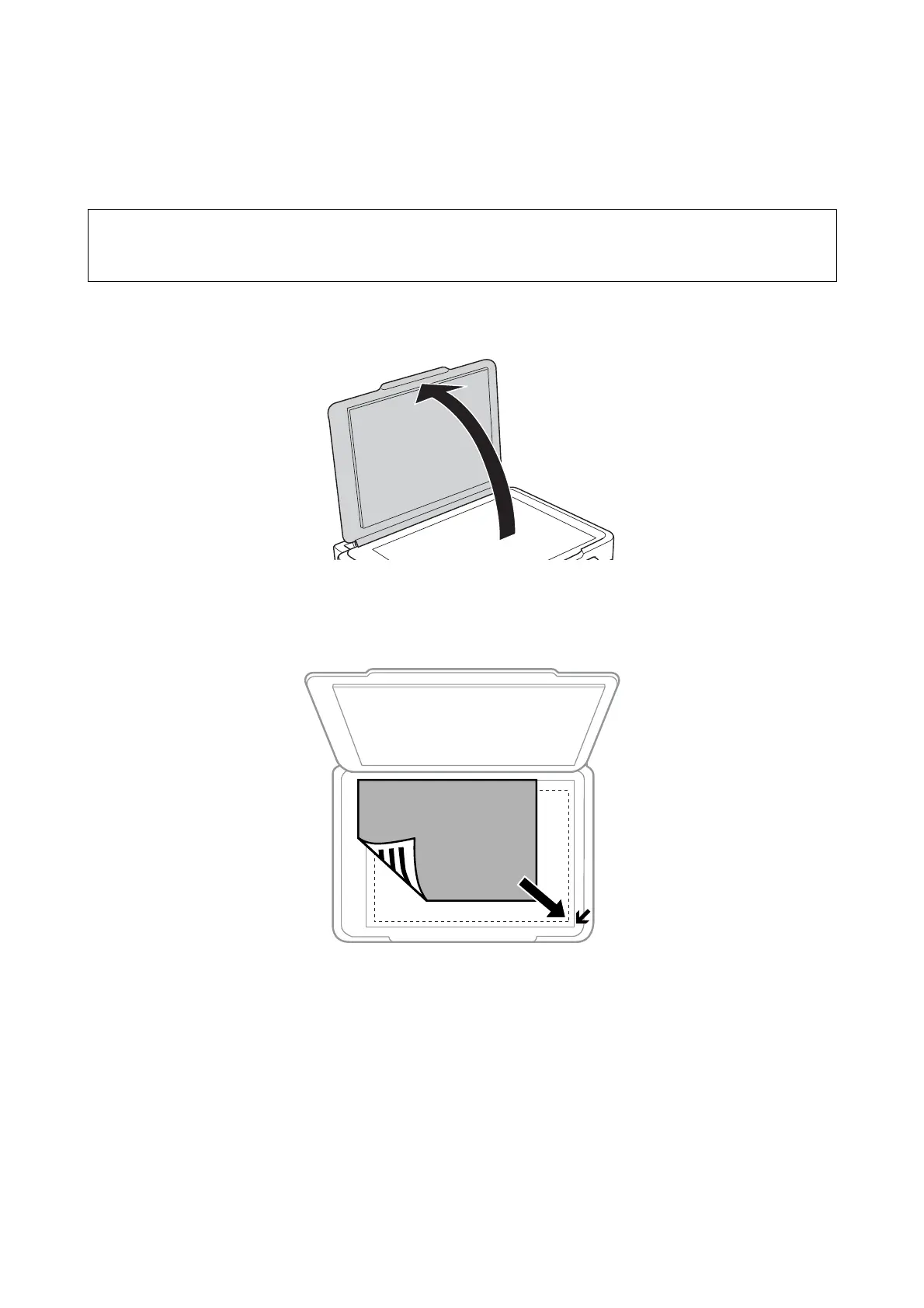

Epson L360

Confidential
Disassembly/Reassembly Overview 19
L365/L366,L360/L362,L310/L312,L220/L222,L130/L132 Series Revision A
 Printer mechanism
Figure 2-3. Printer Mechanism: Front
Figure 2-4. Printer Mechanism: Right
No. Name No. Name
1 CR Driven Pulley Assy (p35) 7 CR Unit (p39)
2 CR Scale (p35) 8 PF Roller Unit (p39)
3 CR Timing Belt (p39) 9 Star Wheel Holder Assy (p37)
4 Printhead (p33) 10 Paper Guide Upper Assy (p39)
5 CR Encoder Sensor (p39) 11 Paper Guide Front Unit (p33)
6 Adapter (p37) 12 Adapter Cover (p37)
No. Name No. Name
1 LD Roller Cover (p35) 6 Cap Lever (p37)
2 LD Roller Assy (p35) 7 Cap Assy (p37)
3 Hopper (p35) 8 Porous Pad for Cap Assy (p37)
4 Retard Roller Assy (p33) 9 Pump Unit (p39)
5 Paper Back Lever (p33)
1
2
3
5
8 11
7
10
4
9
6
12
6 7 8 9
5
4
31 2
