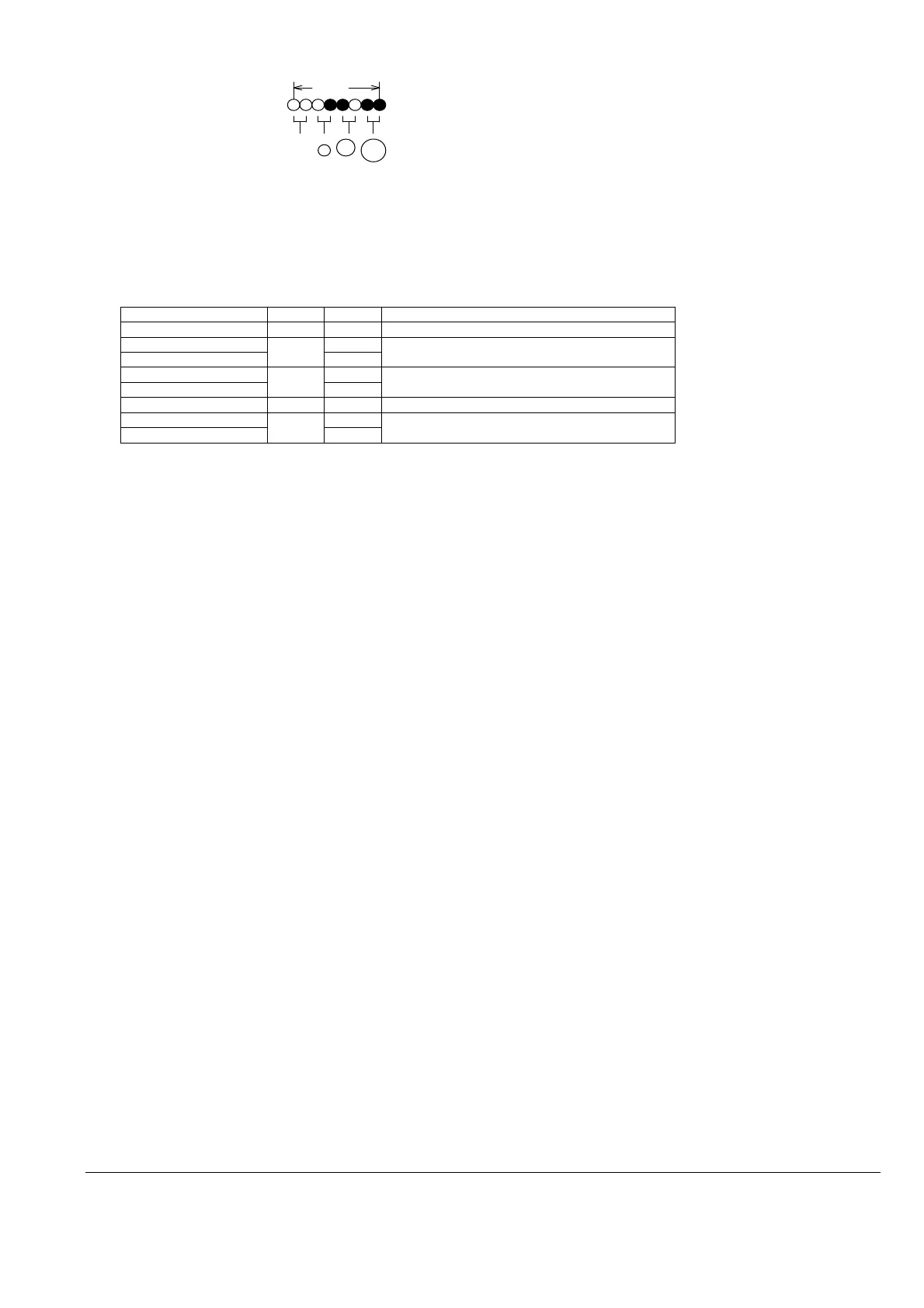

No Dot: 00, small dot: 01, medium dot: 10, large dot: 11
1 Byte
Data = 0 0 0 1 1 0 1 1 = 0x1B
No Small Middle Large
[Initial State] -
[Notes]
Transfer raster image ESC i
Case of 6-values mode (b = 02h and 03h mixed)
Color b r Valid data
Dye Black 02h 00h 00b, 01b, 10b, 11b
Magenta, lower 2-bits 03h 01h 0000b, 0100b, 1000b, 1100b, 1101b, 1110b
Magenta, upper 2-bits 81h
Cyan, lower 2-bits 03h 02h 0000b, 0100b, 1000b, 1100b, 1101b, 1110b
Cyan, upper 2-bits 82h
Yellow 02h 04h 00b, 01b, 10b, 11b
Pigment Black 1 --- 40h ---
Pigment Black 2 60h
