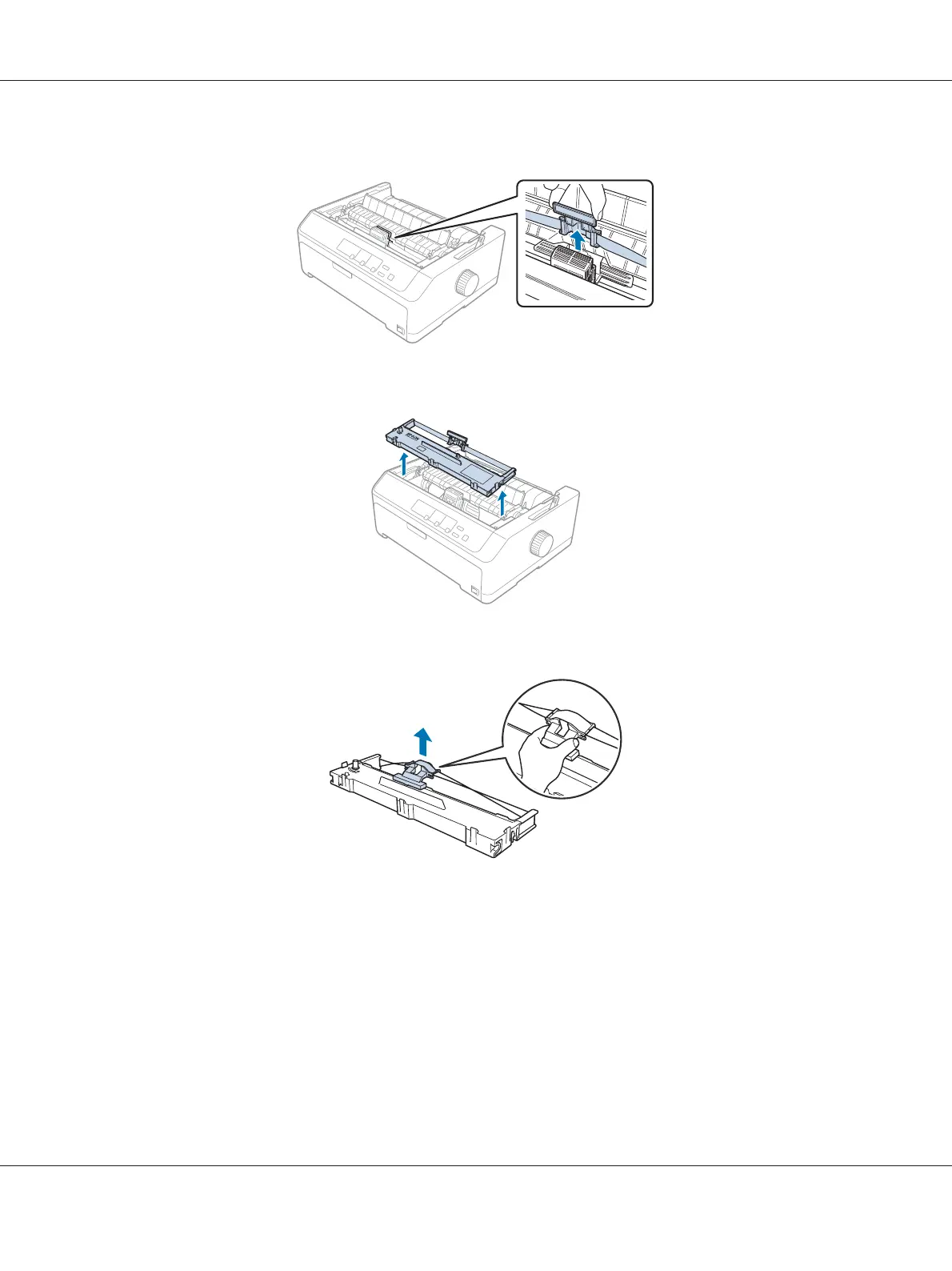

5. Grasp the ribbon guide and pull it until it is out of the print head.
6. Grasp the used cartridge by its handle and pull it up and out of the printer.
7. Hold both sides of the ribbon guide and pull it until it is out of the cartridge.
LQ-590II/LQ-590IIN/LQ-2090II/LQ-2090IIN User’s Guide
Options and Consumables 124
