Epson M100 Service Manual

Confidential
Disassembly/Reassembly Overview 22
M200 / M205 / M100 / M105 Series Revision A

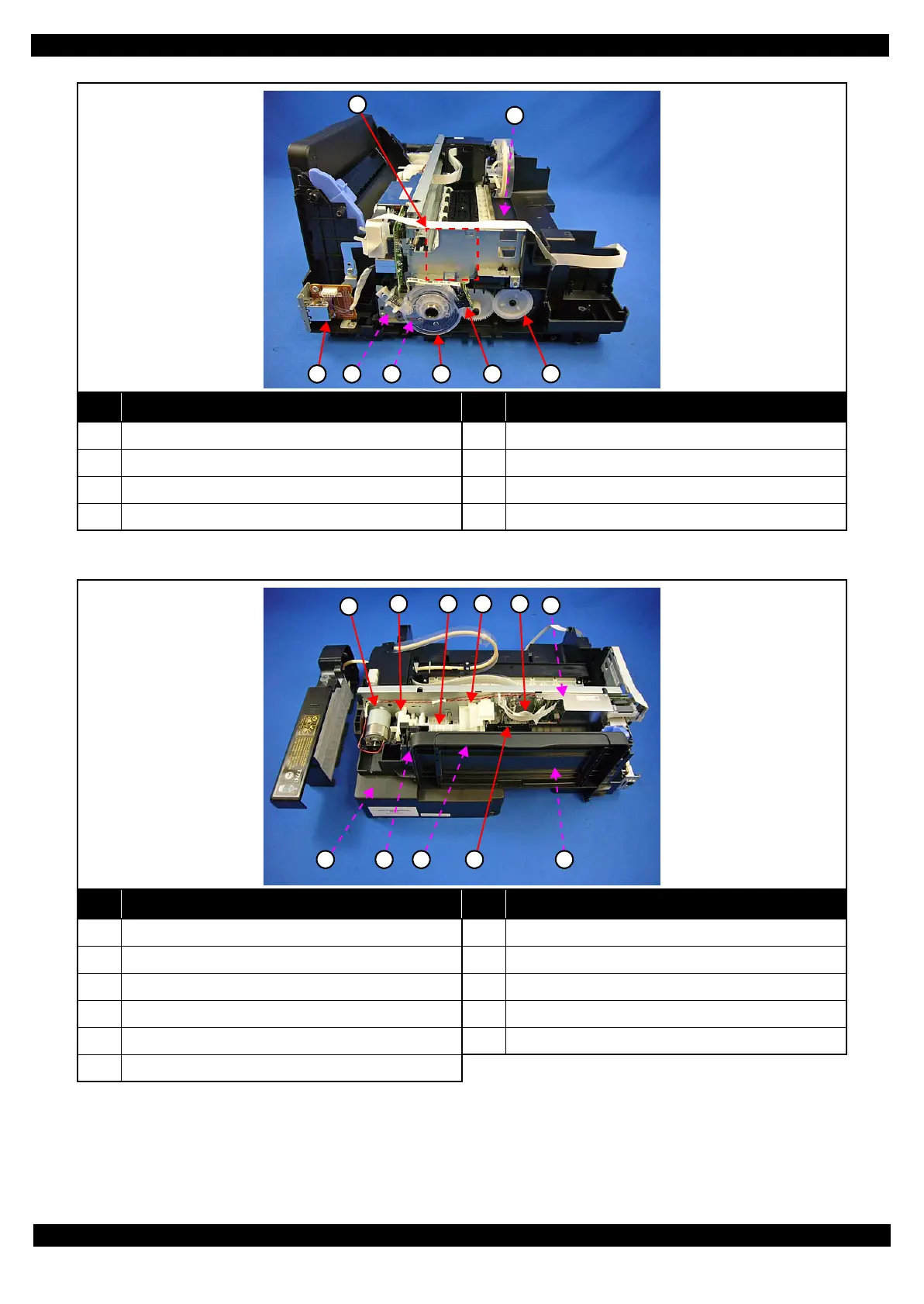

Figure 2-5. Printer Mechanism: Left
Figure 2-6. Printer Mechanism: Rear
No. Name No. Name
1 Wireless LAN Module (p40) (M205/M105 Series) 5 PF Timingbelt (p40)
2 EJ Roller (p36) 6 PF Scale (p40)
3 Ethernet Board Assy (p36) (M200/M100 Series) 7 PF Encoder Sensor (p40)
4 PF Motor Assy (p44) 8 EJ Roller Gear (p40)
No. Name No. Name
1 CR Motor (p40) 7 Waste Ink Pad Assy (p34)
2 Pump Unit (p44) 8 Paper Back Lever (p34)
3 LD Roller Assy (p40) 9 Retard Roller Assy (p34)
4 LD Roller Cover (p41) 10 PE Sensor Lever (p40)
5 Head FFC (p44) 11 PS Unit (p40)
6 Main Board (p40)
1
2
8
4 6 73 5
1
3
6
10 117
2 4 5
8 9
