Epson M100 Service Manual

Confidential
Disassembly/Reassembly Overview 21
M200 / M205 / M100 / M105 Series Revision A

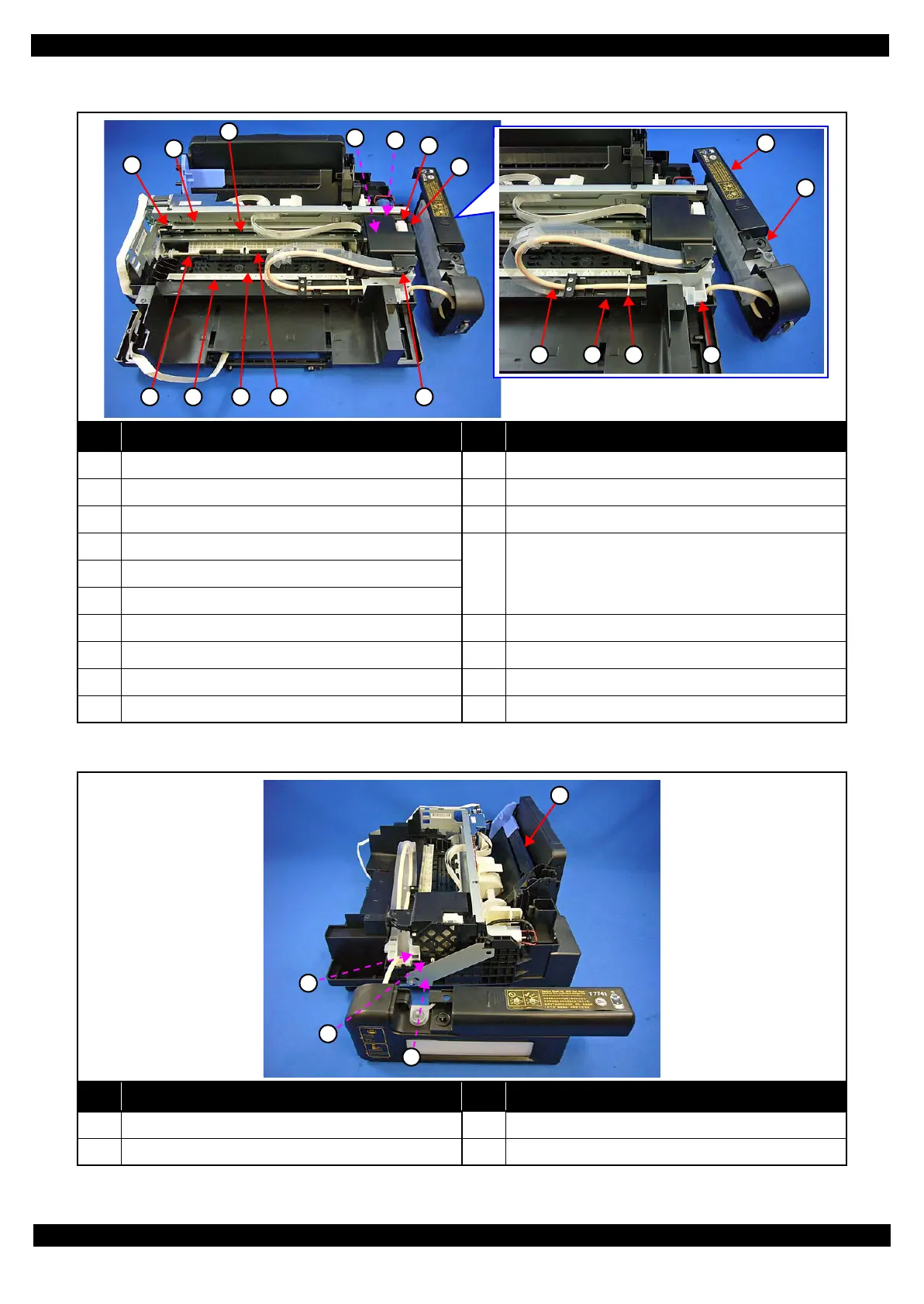

 Printer mechanism
Figure 2-3. Printer Mechanism: Front
Figure 2-4. Printer Mechanism: Right
No. Name No. Name
1 CR Driven Pulley Assy (p41) 11 Paper Guide Upper Assy (p44)
2 CR Scale (p41) 12 Adapter Cover (p35)
3 CR Timing Belt (p44) 13 Ink Supply Tank Cover (p34)
4 Printhead (p34)
14
Ink Supply Tank Assy (p35)
Cap (p35) / Valve Lever (p43) / Ink Supply Tank Tube
Assy (p43) / Housing Ink Supply Tank (p43) / Ink
Supply Tank (p43)
5 CR Encoder Sensor (p44)
6 Adapter (p35)
7 CR Unit (p44) 15 Ink Supply Tube Guide 1st (p35)
8 PF Roller Unit (p44) 16 Joint (p35)
9 Star Wheel Holder Assy (p36) 17 Ink Supply Tube Guide 2nd (p35)
10 Paper Guide Front Unit (p34) 18 Ink Supply Tube (p35)
No. Name No. Name
1 Hopper (p45) 3 Cap Assy (p36)
2 Cap Lever (p39) 4 Porous Pad for Cap Assy (p36)
1
2
3
5
8 9
7
10
4
11
13
14
15161718
12
6
3
4
1
2
