3.
Select
the
Settings
menu
and
press
Enter
.
4.
Select
the
Keystone
setting
and
press
Enter
.
5.
Select
the
Quick
Corner
setting
and
press
Enter
.
Then
press
Enter
again.

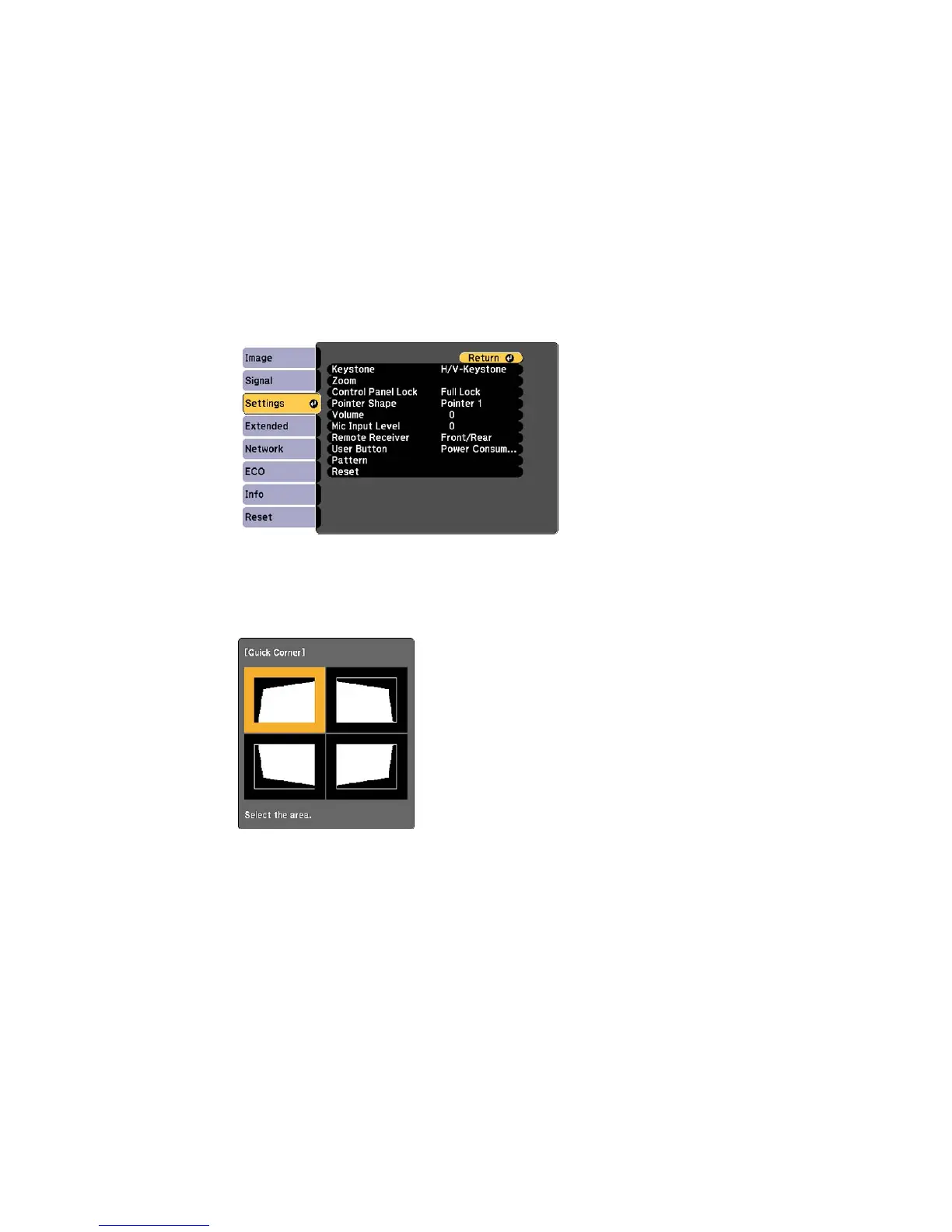

You
see
the
Quick
Corner
adjustment
screen:
6.
Use
the
arrow
buttons
on
the
projector
or
the
remote
control
to
select
the
corner
of
the
you
want
to
adjust.
Then
press
Enter
.
75
74
76
Table of Contents
Default Chapter
3
Table of Contents
3
Powerlite 520/525W/530/535W User's Guide
9
Introduction to Your Projector
10
Projector Features
10
Product Box Contents
11
Additional Components
13
Optional Equipment and Replacement Parts
13
Warranty and Registration Information
15
Notations Used in the Documentation
15
Where to Go for Additional Information
15
Projector Part Locations
16
Projector Parts - Front/Top
17
Projector Parts - Rear
18
Projector Parts - Base
20
Projector Parts - Control Panel
21
Projector Parts - Remote Control
22
Setting up the Projector
24
Projector Placement
24
Projector Setup and Installation Options
24
Projection Distance
26
Projector Connections
32
Connecting to Computer Sources
33
Connecting to a Computer for USB Video and Audio
33
Connecting to a Computer for VGA Video
34
Connecting to a Computer for HDMI Video and Audio
35
Connecting to a Computer for USB Mouse Control
35
Connecting to a Computer for Sound
36
Connecting to Video Sources
36
Connecting to an HDMI Video Source
37
Connecting to a Component-To-VGA Video Source
37
Connecting to a Composite Video Source
38
Connecting to an S-Video Video Source
38
Connecting to a Video Source for Sound
39
Connecting to an External Computer Monitor
40
Connecting to External Speakers
41
Connecting a Microphone
41
Connecting to External USB Devices
42
USB Device Projection
42
Connecting a USB Device or Camera to the Projector
43
Selecting the Connected USB Source
44
Disconnecting a USB Device or Camera from the Projector
44
Connecting to a Document Camera
44
Installing Batteries in the Remote Control
45
Using the Projector on a Network
47
Wired Network Projection
47
Connecting to a Wired Network
48
Selecting Wired Network Settings
48
Wireless Network Projection
51
Installing the Wireless LAN Module
52
Using Quick Wireless Connection (Windows Only)
54
Selecting Wireless Network Settings Manually
55
Wireless LAN Menu Settings
57
Selecting Wireless Network Settings in Windows
58
Selecting Wireless Network Settings in os X
59
Setting up Wireless Network Security
59
Wireless Security Menu Settings
60
Setting up Projector Network E-Mail Alerts
61
Network Projector E-Mail Alert Messages
62
Setting up Monitoring Using SNMP
62
Controlling a Networked Projector Using a Web Browser
64
Crestron Roomview Support
66
Setting up Crestron Roomview Support
66
Controlling a Networked Projector Using Crestron Roomview
67
Using Basic Projector Features
69
Turning on the Projector
69
Turning off the Projector
70
Selecting the Language for the Projector Menus
72
Adjusting the Image Height
72
Image Shape
74
Correcting Image Shape with Quick Corner
74
Correcting Image Shape with the Keystone Buttons
76
Resizing the Image with the Wide and Tele Buttons
78
Focusing the Image Using the Focus Ring
78
Remote Control Operation
79
Using the Remote Control as a Wireless Mouse
80
Using the Remote Control as a Pointer
81
Selecting an Image Source
82
Projection Modes
84
Changing the Projection Mode Using the Remote Control
84
Changing the Projection Mode Using the Menus
85
Image Aspect Ratio
85
Changing the Image Aspect Ratio
86
Available Image Aspect Ratios
86
Color Mode
87
Changing the Color Mode
88
Available Color Modes
88
Turning on Auto Iris
89
Controlling the Volume with the Volume Buttons
90
Projecting a PC Free Presentation
90
Slideshow Features
91
Supported PC Free File Types
91
Starting a Slide Show
92
Display Options
94
Adjusting Projector Features
96
Shutting off the Picture and Sound Temporarily
96
Stopping Video Action Temporarily
96
Zooming into and out of Images
97
Projector Security Features
98
Password Security Types
98
Setting a Password
98
Selecting Password Security Types
100
Entering a Password to Use the Projector
101
Saving a User's Logo Image to Display
102
Locking the Projector's Buttons
104
Unlocking the Projector's Buttons
105
Installing a Security Cable
105
Creating a User Pattern to Display
105
Adjusting the Menu Settings
107
Using the Projector's Menus
107
Image Quality Settings - Image Menu
109
Input Signal Settings - Signal Menu
111
Projector Feature Settings - Settings Menu
114
Projector Setup Settings - Extended Menu
116
Projector Network Settings - Network Menu
120
Projector Setup Settings - ECO Menu
122
Projector Information Display - Info Menu
124
Event ID Code List
125
Projector Reset Options - Reset Menu
126
Maintaining and Transporting the Projector
128
Projector Maintenance
128
Cleaning the Lens
128
Cleaning the Projector Case
129
Air Filter and Vent Maintenance
129
Cleaning the Air Filter and Vents
130
Replacing the Air Filter
132
Projector Lamp Maintenance
134
Replacing the Lamp
135
Resetting the Lamp Timer
140
Replacing the Remote Control Batteries
141
Transporting the Projector
142
Solving Problems
144
Projection Problem Tips
144
Projector Light Status
145
Using the Projector Help Displays
147
Solving Image or Sound Problems
148
Solutions When no Image Appears
148
Solutions When Image Is Incorrect Using the USB Display Function
149
Solutions When "No Signal" Message Appears
150
Displaying from a PC Laptop
150
Displaying from a Mac Laptop
150
Solutions When "Not Supported" Message Appears
151
Solutions When Only a Partial Image Appears
151
Solutions When the Image Is Not Rectangular
151
Solutions When the Image Contains Noise or Static
152
Solutions When the Image Is Fuzzy or Blurry
153
Solutions When the Image Brightness or Colors Are Incorrect
153
Solutions to Sound Problems
154
Solutions to Microphone Problems
154
Solving Projector or Remote Control Operation Problems
155
Solutions to Projector Power or Shut-Off Problems
155
Solutions to Problems with the Remote Control
156
Solutions to Password Problems
156
Solving Network Problems
157
Solutions When Network Alert E-Mails Are Not Received
157
Solutions When You Cannot Access the Projector through the Web
158
Where to Get Help
158
Technical Specifications
160
General Projector Specifications
160
Projector Lamp Specifications
163
Remote Control Specifications
164
Projector Dimension Specifications
164
Projector Electrical Specifications
164
Projector Environmental Specifications
166
Projector Safety and Approvals Specifications
166
Supported Video Display Formats
166
USB Display System Requirements
169
Notices
170
Recycling
170
Important Safety Information
170
Important Safety Instructions
171
Restriction of Use
173
FCC Compliance Statement
174
Trademarks
175
Open Source Software License
175
Copyright Notice
220
A Note Concerning Responsible Use of Copyrighted Materials
221
Copyright Attribution
221
