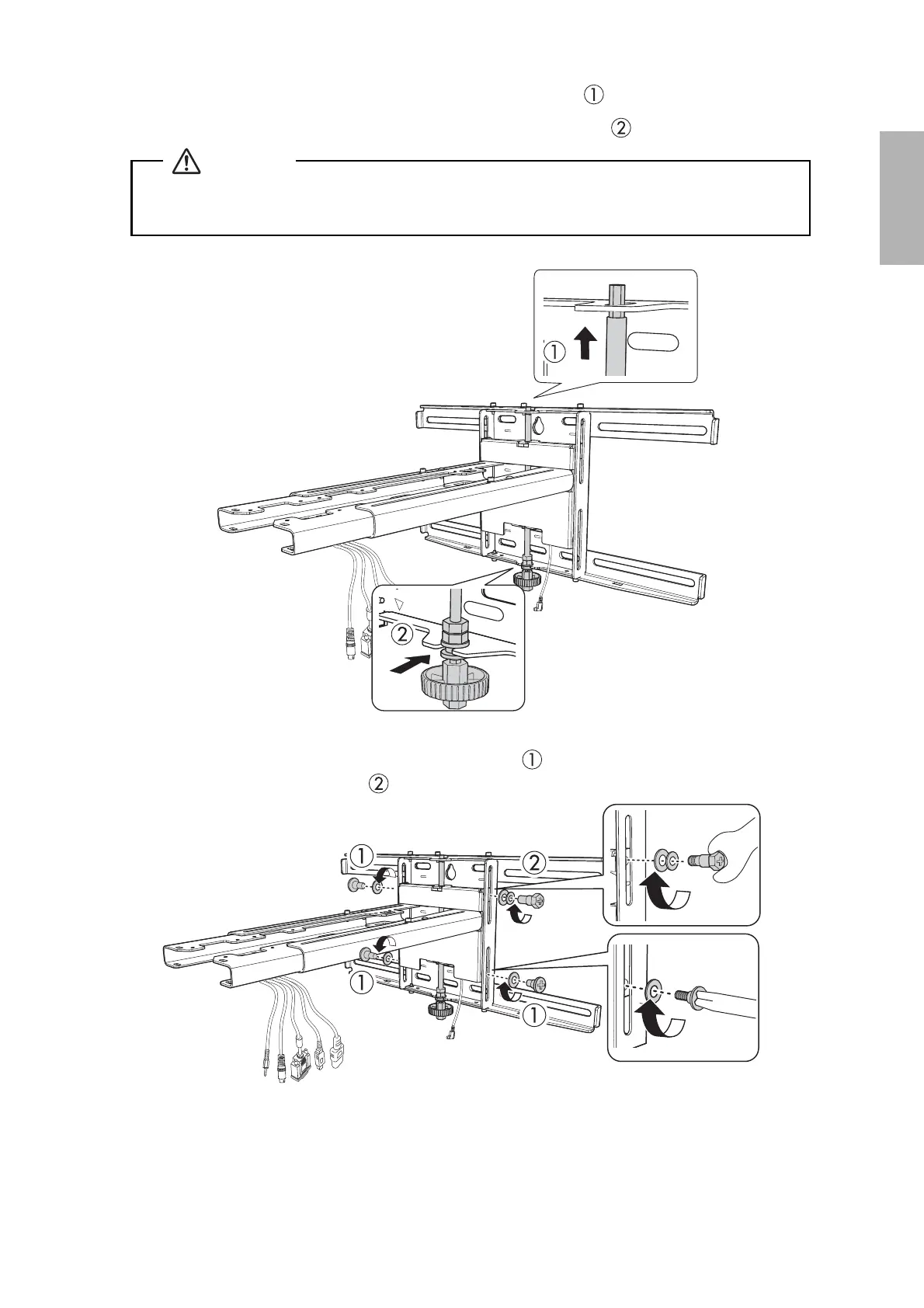

3. Insert the hexagonal shaft into the slot at the top of the wall plate ( ).
4. Insert the hexagonal shaft into the slot at the bottom of the wall plate ( ).
5. Secure the mount arm to the wall plate by tightening the supplied M6 × 20 mm cross recessed head
shoulder screws (×3) with the #3 cross-head screwdriver ( ). Then, loosely tighten the M6 × 20 mm
hexagon shoulder bolt supplied ( ).
❏ Make sure the Touch Unit connection cable is not wired into the wall with the other cables.
❏ Take care not to trap the cables between the mount arm and wall plate.
