Epson PowerLite 675W - Use the Adjustment Dial on the Top to Adjust the Vertical Tilt

38

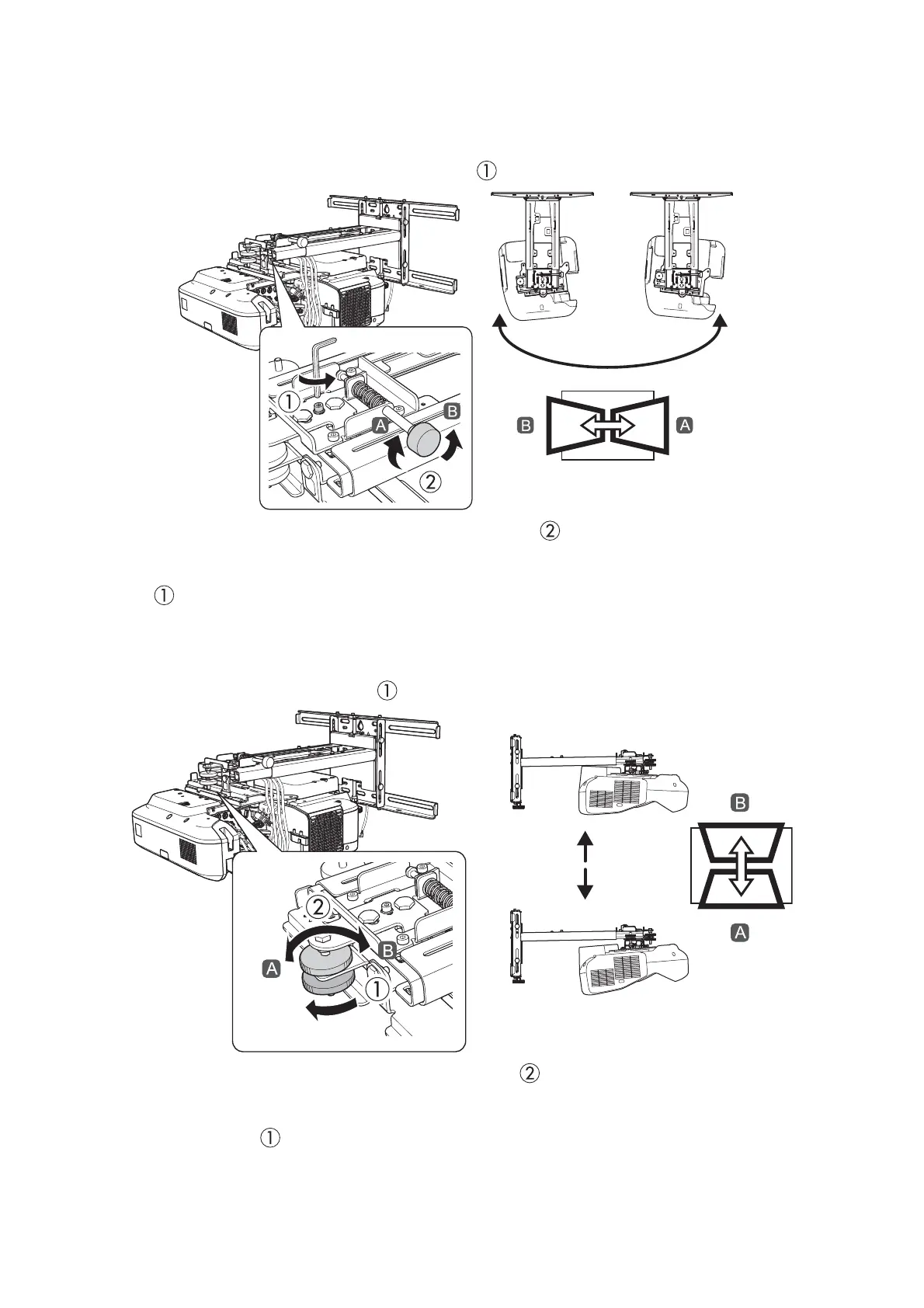

F Use the adjustment knob on the right side to adjust the horizontal
rotation
1. Loosen the screw to unlock the adjustment knob ( ).
2. Turn the adjustment knob to adjust the horizontal rotation ( ).
3. After you finish making all of the adjustments in steps
E to J, tighten the screw you loosened in
.
G Use the adjustment dial on the top to adjust the vertical tilt
1. Loosen the lower adjustment dial ( ).
2. Turn the upper adjustment dial to adjust the vertical tilt ( ).
3. After you finish making all of the adjustments in steps
E to J, tighten the lower adjustment dial
you loosened in .
